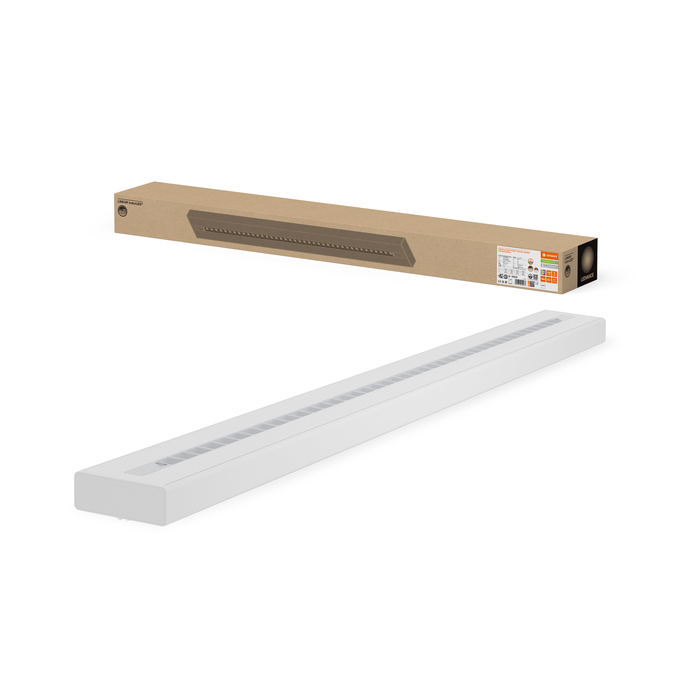

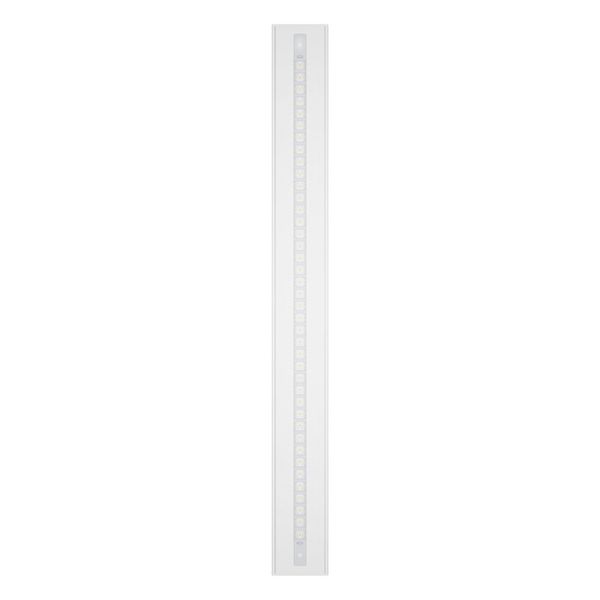

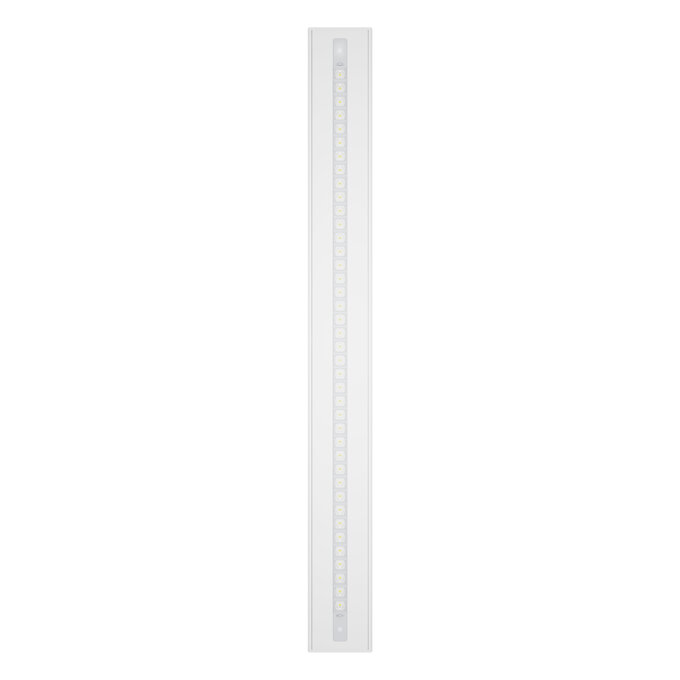

LN INV D 1200 P 40W 940 DAVR SN WT
4099854249273
Product benefits
- Easy upgradeability of light source and driver (EVERLOOP design)

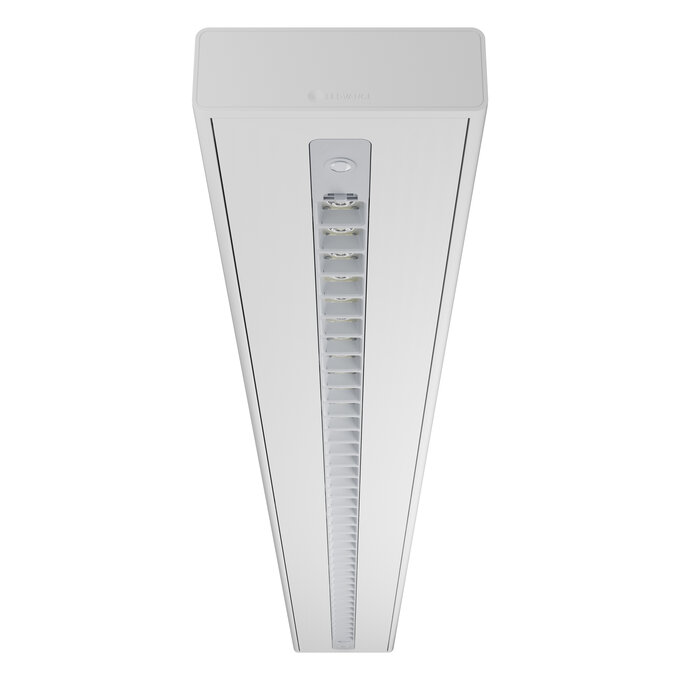

- Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
- High performance with CRI90 and up to 131 lm/W
- Symmetric light distribution for various application areas
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- High color consistency with SDCM 3
- Easy installation
- Low flicker light thanks to special electronic control gear
- Suitable for battery emergency installations acc. to EN 60598-2-22
- Multiple mounting options thanks to different accessories
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, education, public buildings
- Single and continuous line configuration
- Direct lighting
Product features
- Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
- Includes EVERLOOP: Convenient replacement of light source and LED driver
- PIR-Sensor with leader-follower function
- Combined daylight and motion detection
- Individual adjustment of the parameters with configuration software or remote control
- Linkable into seamless light line with accessories (surface or pendant mounting)

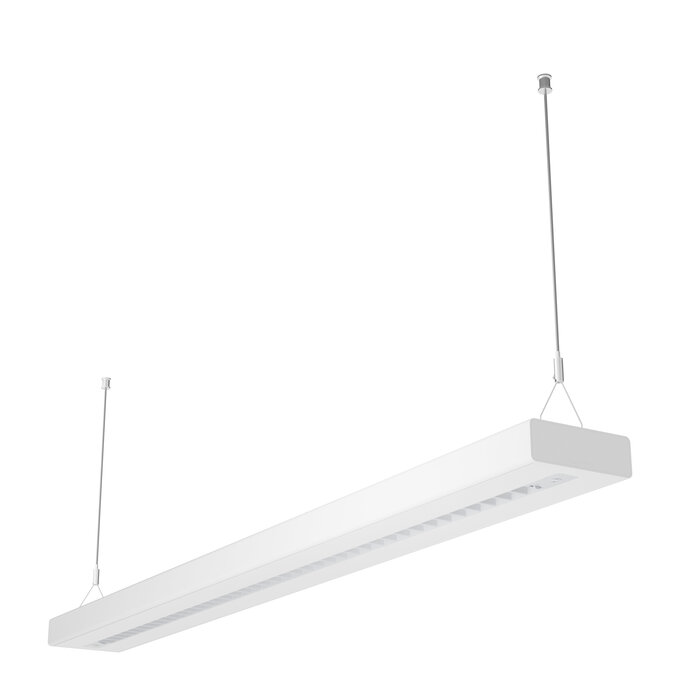

- Pendant mounting with suspension kit (to be ordered separetely)
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Lifetime (L80/B10): 70,000 h (at 25 °C)
- Multi Lumen function: programmable DALI-2 driver
Equipment / Accessories
- Suspension kit available for pendant luminaire version (to be ordered separately)
- Inline, corner and infill connectors available as separate accessory
- Through-wiring cable kit available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
25 W
130 lm/W
30 W
128 lm/W
34 W
131 lm/W
40 W
126 lm/W
Added function
EVERLO
Adjustable
No
Ambient temperature range
-20…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 °
Body material
Aluminum
Color rendering index Ra
≥90
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Detection range of motion sensor
1.7 m … 4 m
Dimmable
Yes
ECG - Output ripple current
≤ 5 %
EPD
LEDV-00073-V01.01-EN
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854249273
Height
43.00 mm
Housing color
White
Inrush current
9.92 A
Inrush current time Th50
360 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
1210.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Cool White
Light emitting surface material
Polymethylmethacrylate (PMMA)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Tripnehyl Phosphate (115-86-6), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
126 lm/W / 131 lm/W / 128 lm/W / 130 lm/W
Luminous flux
5050 lm / 4450 lm / 3850 lm / 3250 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
20
Max. number of luminaires per miniature circuit breaker C10
20
Max. number of luminaires per miniature circuit breaker C16
32
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended/Surface
Nominal current
177…160…140…120 mA
Nominal voltage
220…240 V
Nominal wattage
40 W / 34 W / 30 W / 25 W
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
1400mA / 1300mA / 1200mA / 1100 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
3290.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9003
Recommended control gear
OSRAM type OTI DALI 50/220-240/1A4 NFC L
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Sensor controlled switching time
10 s … 30 min
Sensor detection angle
80 °
Sensor technology
Passive infrared/Photocell
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
≤0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 20 %
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
DALI-2
Type of protection
IP20
Type of sensor
Moti
UGR
< 19
Width
125.00 mm
With light source
Yes
