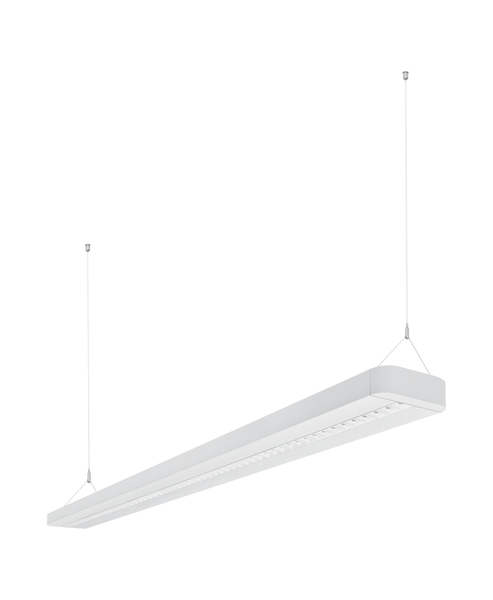

LN INDV D DALI 1500 25 W 3000 K
4058075108929
Product benefits
- Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
- Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
- Multiple mounting options
- The product family offers full lighting solution for different applications
- Energy savings of up to 50 % compared to T5 batten luminaires
- Further variants additionally available with DALI ECG, emergency lighting function according to IEC 60598-2-22 or through wiring
- Robust structure with IK06
- Low flicker light thanks to special electronic control gear
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, schools
- General indoor illumination
- Corridors, entrance areas
- Seamless linear lighting
- Shop lighting
Product features
- IoT-ready luminaire with DALI-2 technology
- Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
- Pendant mounting with suspension kit
- Linkable into seamless light line with line connection adapter (surface or pendant mounting)
- Available with length of 1200 or 1500 mm
- Luminous flux up to 5700 lm
- Luminous efficacy: up to 125 lm/W
- Initial color consistency: 3 SDCM
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- Versions available with CRI 90
- Lifetime (L70/B50): 60,000 h (at 25 °C)
Equipment / Accessories
- Ceiling connection box available
- Suspension kit available
- Line connection adapter available
- Through-wiring cable kit available
References / Links
- For Guarantee see
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
70 °
Body material
Aluminum
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Aluminum
Dimmable
Yes
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075108929
Height
40.00 mm
Housing color
White
Inrush current
20 A
Inrush current time Th50
300 µs
Length
1488.00 mm
Lifespan L70/B50 at 25 °C
60000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Warm White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
125 lm/W
Luminous flux
3100 lm
Luminous intensity
-
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
11
Max. number of luminaires per miniature circuit breaker C10
11
Max. number of luminaires per miniature circuit breaker C16
18
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended/Surface
Nominal current
140 mA
Nominal voltage
220…240 V
Nominal wattage
25.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
3000.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
-
Total harmonic distortion
≤ 18 %
Type of connection
Screwless terminal, 5-Pole
Type of dimming
DALI
Type of protection
IP20
UGR
< 16
Width
120.00 mm
With light source
Yes
