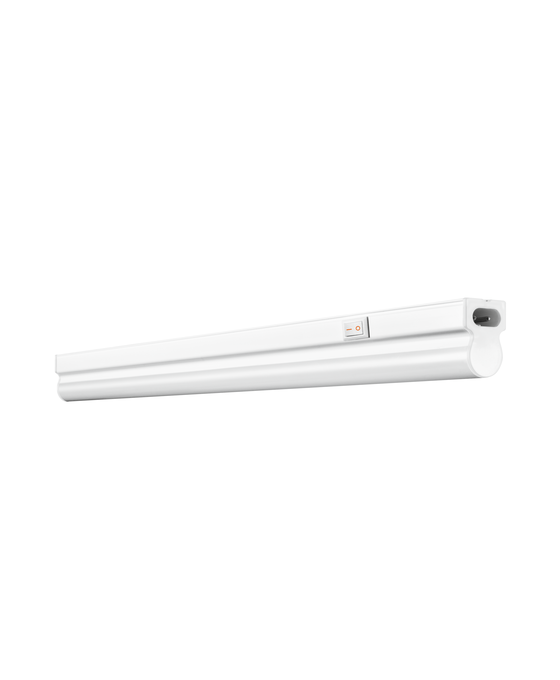

LN COMP SWITCH 300 4 W 4000 K
Скидка 52%
4058075106093
Product benefits
- Compact dimensions
- Little space required thanks to compact dimensions
- Seamless connection of up to 10 luminaires in a line
- Handy switch directly installed on the luminaire
- Low flicker light thanks to special electronic control gear
- Flexible installation in 2 different angles with 2 different mounting options
- Flexible application due to a wide range of available lengths of 300 to 1500 mm.
- Angled connection possible with included cable
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Accent lighting
- Public areas
- Cove lighting
- Shelves, furniture integration or under cabinet mounting
- Seamless linear lighting
Product features
- Built-in switch
- Up to 10 luminaires connectable
- Translucent end caps
- Versions with luminous flux 400…1900 lm available
- 5 different lengths available
- High luminous efficacy: up to 112 lm/W
- Glow Wire Test according to IEC 60695-2-12: 850 °C
Equipment / Accessories
- Equipped with power plug, cable connector and line adapter for connecting further luminaires
- Mounting material for wall and ceiling installations included
Safety advice
- All electrical connections must be made by a qualified person.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- For Guarantee see
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
140 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Polycarbonate (PC)
Dimmable
No
EPD
LEDV-00018-V01.01-EN
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075106093
Height
36.00 mm
Housing color
White
Inrush current
15.0 A
Inrush current time Th50
150 µs
Length
313.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
40000 h 1)
Lifespan L90/B10 at 25 °C
30000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
110 lm/W
Luminous flux
450 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
40
Max. number of luminaires per miniature circuit breaker C10
32
Max. number of luminaires per miniature circuit breaker C16
51
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal current
0.03 A
Nominal voltage
220…240 V
Nominal wattage
4.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
50 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
119.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9016
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 5 sdcm
Total harmonic distortion
88 %
Type of connection
Power cable/Plug
Type of protection
IP20
Width
28.00 mm
With light source
Yes
