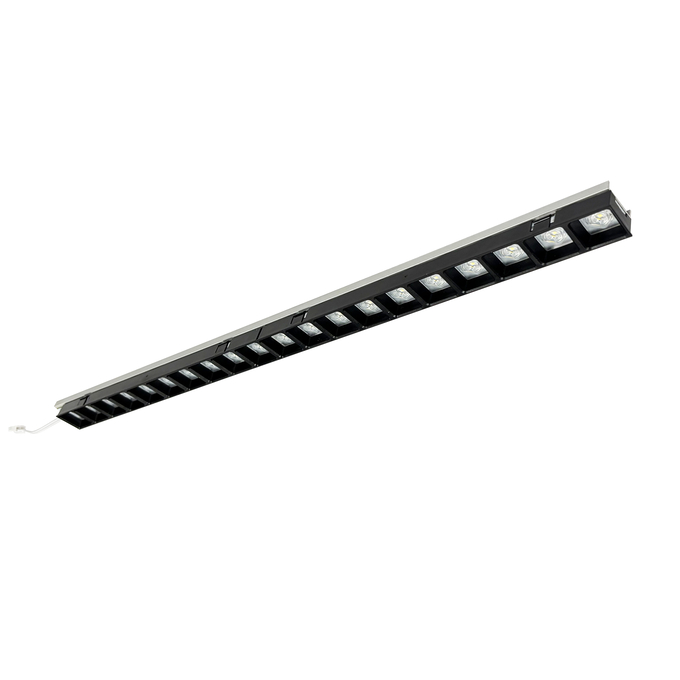

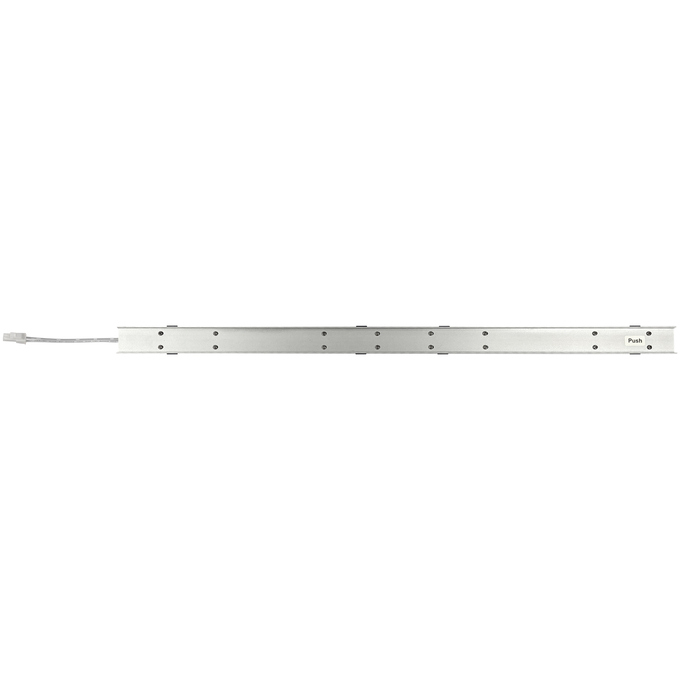

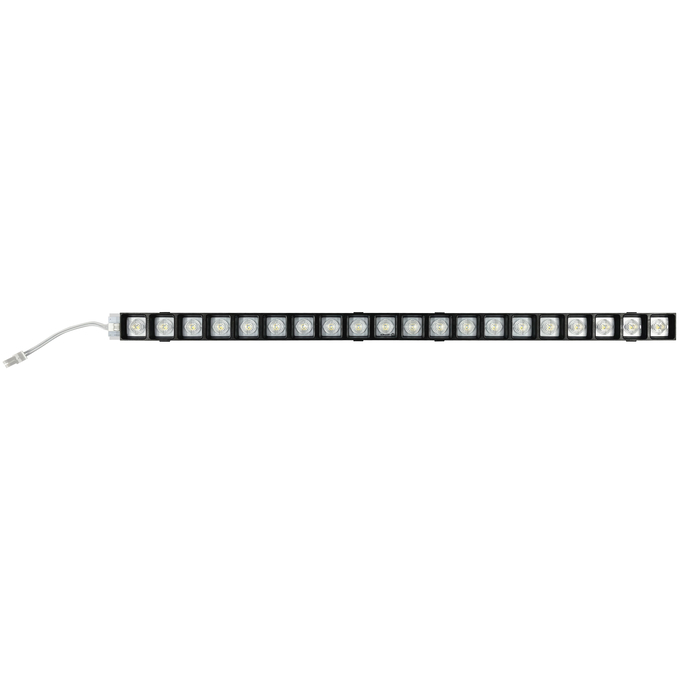

LISOEV 544X29 24 19W 930 S90U19 BK
4099854793752
Product benefits
- Easy upgradeability of light source and driver (EVERLOOP design)
- Easy installation, no tools required for connection
- Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
- High performance with CRI90
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, education, public buildings
Product features
- Symmetric light distribution
- Lifetime (L80/B10): 70,000 h (at 25 °C)
- Beam angle: 90°
Safety advice
- All electrical connections must be made by a qualified person.
References / Links
- For Guarantee see
Added function
EVERLOOP
Ambient temperature range
-20…+50 °C
Beam angle
90 °
Body material
Aluminum
Color rendering index Ra
≥90
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
Flickering metric (Pst LM)
≤1
GTIN
4099854793752
Height
19.00 mm
Housing color
Black
Length
544.00 mm
Lifespan L70/B50 at 25 °C
100000 h
Lifespan L80/B10 at 25 °C
70000 h
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
124 lm/W
Luminous flux
2350 lm
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
400.000 mA
Nominal voltage
45 V
Nominal wattage
19.00 W
Number of switching cycles
25000
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2026
Product weight
185.00 g
RAL Color (most similar)
RAL 9005
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
≤0.4
Temperature range at storage
-20…+80 °C
Type of connection
Push-in clamp
Type of protection
IP20
UGR
< 19
Width
29.00 mm
