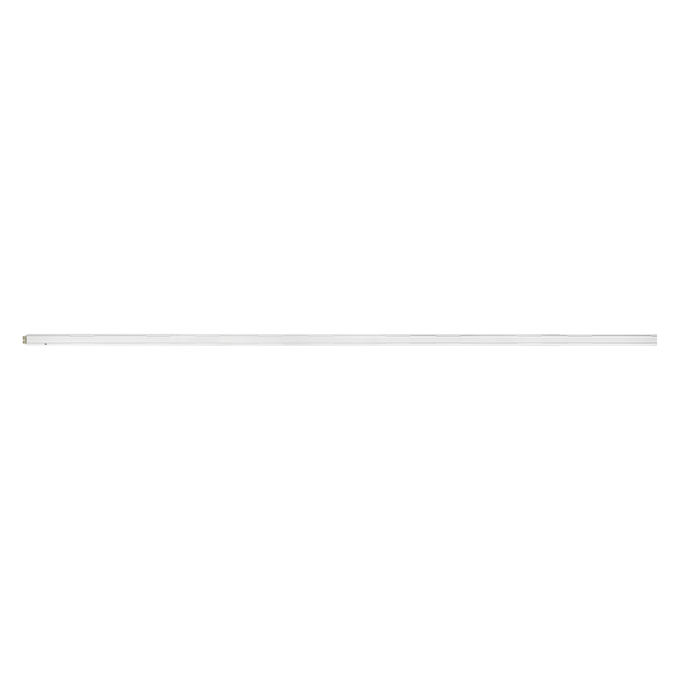

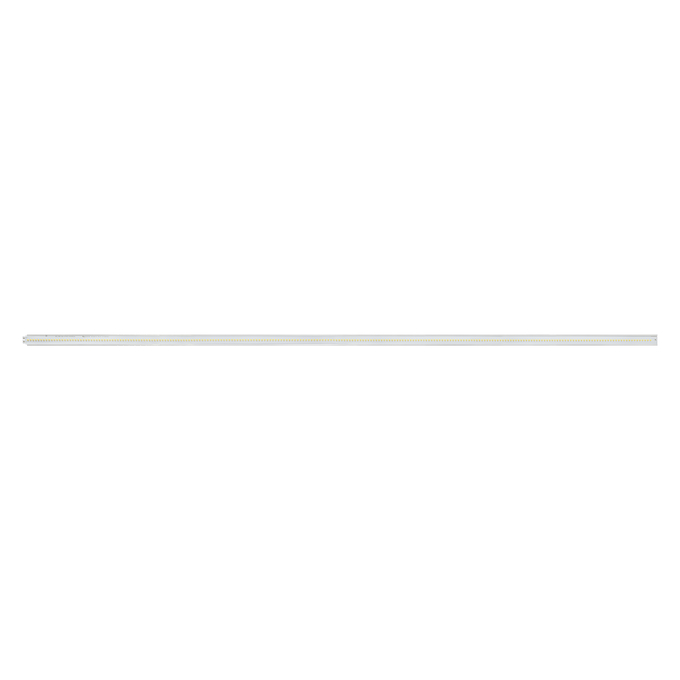

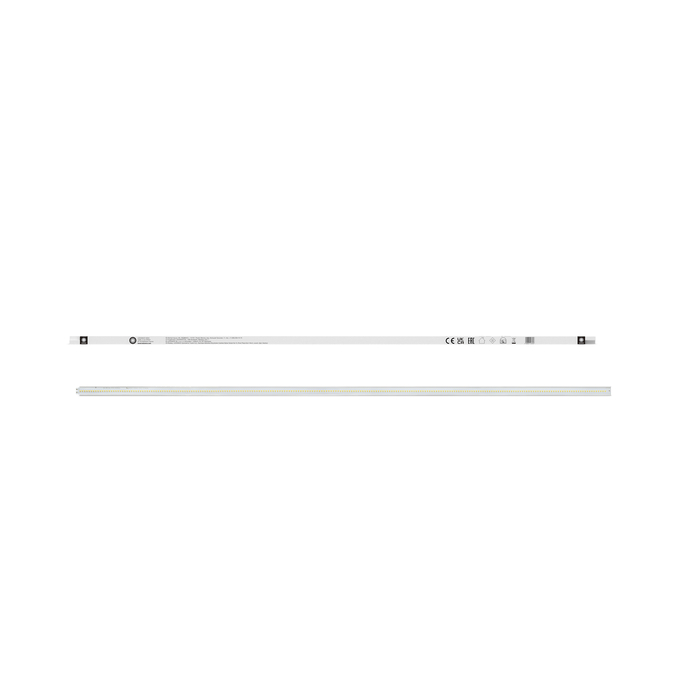

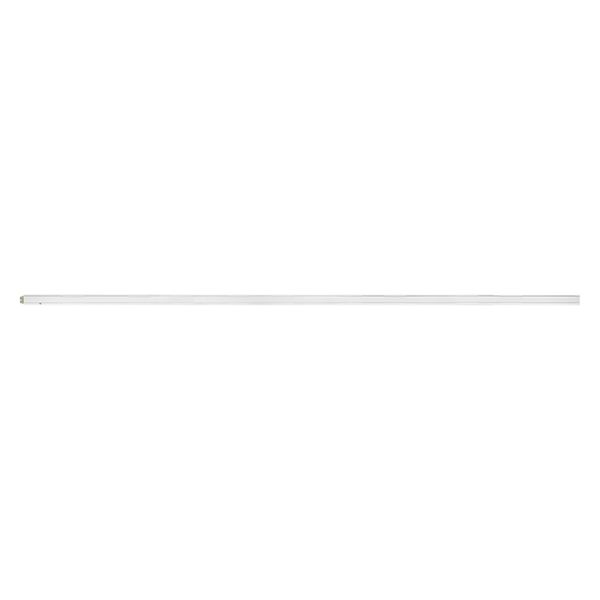

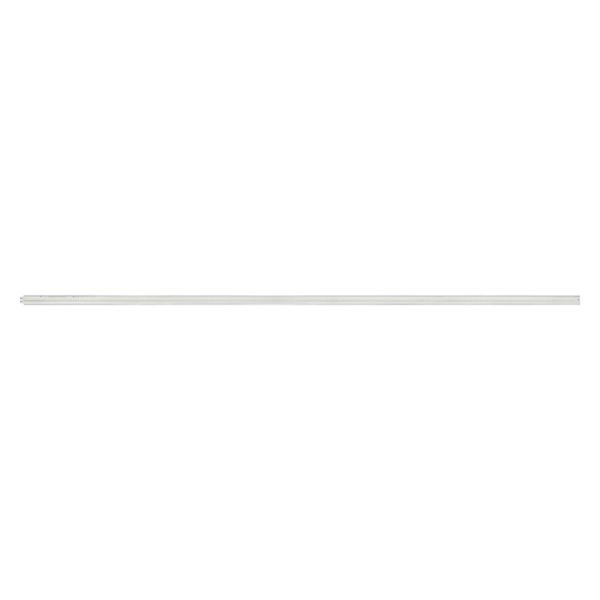

LISOEV 1445X26 117 73W 840 S120 AL
4099854416798
Product benefits
- Easy upgradeability of light source and driver (EVERLOOP design)
- Easy installation, no tools required for connection
- Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
Areas of application
- Industrial and storage facilities
- Workshops, assembly lines
- Passages, underpasses
- Parking garages
- Underground parking
Product features
- Lifetime (L80/B10): up to 100,000 h (at 25 °C)
- Beam angle: 120°
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Added function
EVERLOOP
Ambient temperature range
-20…+40 °C
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes
GTIN
4099854416798
Height
6.00 mm
Housing color
Grey
Length
1445.00 mm
Lifespan L70/B50 at 25 °C
100000 h
Lifespan L80/B10 at 25 °C
100000 h
Lifespan L90/B10 at 25 °C
55000 h
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
185 lm/W
Luminous flux
13900 lm
Mains frequency
0 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
450.000 mA
Nominal voltage
153 V
Nominal wattage
69.50 W
Number of switching cycles
50000
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
238.00 g
Standard deviation of color matching
< 4 sdcm
Temperature range at storage
-20…+80 °C
Type of connection
Connector
Width
26.00 mm
