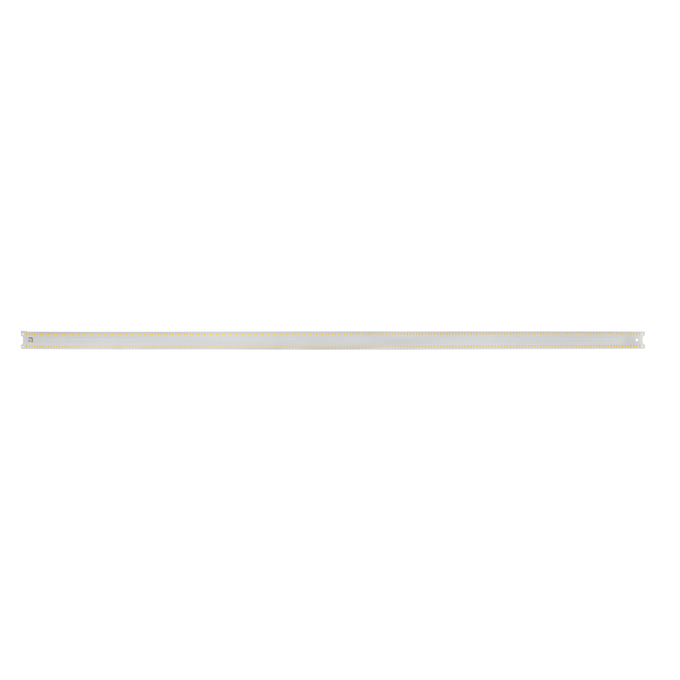

LISOEV 1150X35 54 34W 865 DP FLEX
4099854522185
Product benefits
- Easy upgradeability of light source and driver (EVERLOOP design)
- Easy installation, no tools required for connection
- Energy savings of up to 66 % (compared to luminaires that use fluorescent lamps)
Areas of application
- Industrial and storage facilities
- Workshops, assembly lines
- Passages, underpasses
- Parking garages
- Underground parking
Product features
- Lifetime (L80/B50): up to 100,000 h (at 25 °C)
- Beam angle: 120°
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Added function
EVERLOOP
Ambient temperature range
-30…+50 °C
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes
GTIN
4099854522185
Height
1.80 mm
Housing color
Silver
Length
1168.00 mm
Lifespan L70/B50 at 25 °C
100000 h
Lifespan L80/B10 at 25 °C
100000 h
Lifespan L90/B10 at 25 °C
82000 h
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
178 lm/W
Luminous flux
5700 lm
Mains frequency
0 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
225.000 mA
Nominal voltage
142 V
Nominal wattage
31.95 W
Number of switching cycles
100000
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Silver
Product recyclability
Mostly recyclable product 1)
Product weight
104.00 g
Standard deviation of color matching
< 5 sdcm
Temperature range at storage
-40…+80 °C
Type of connection
Connector
Width
33.00 mm
