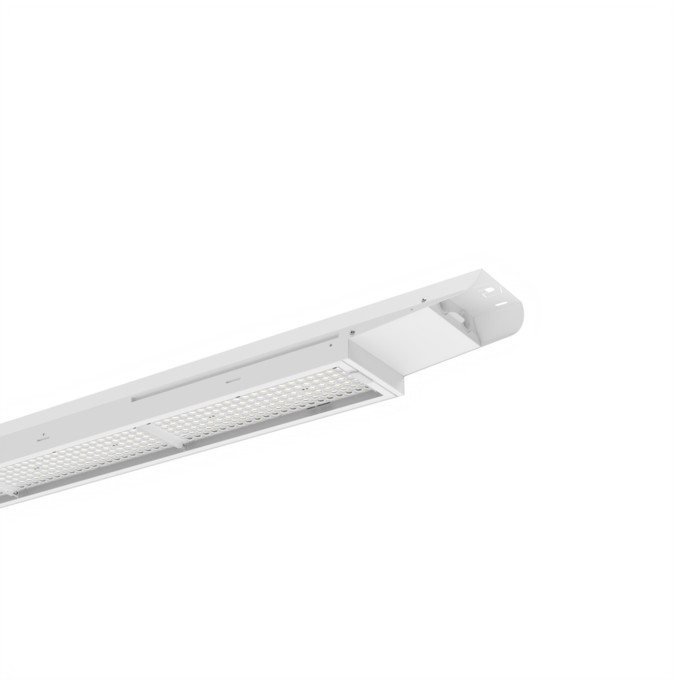

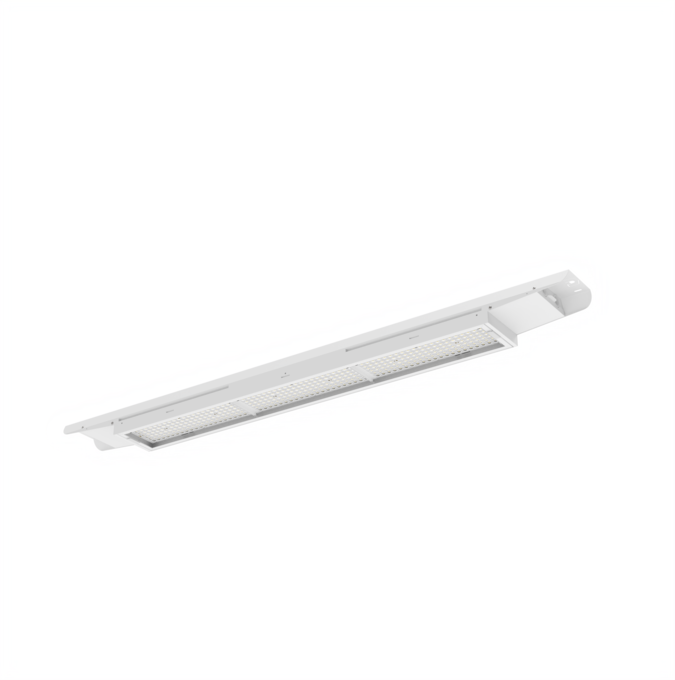

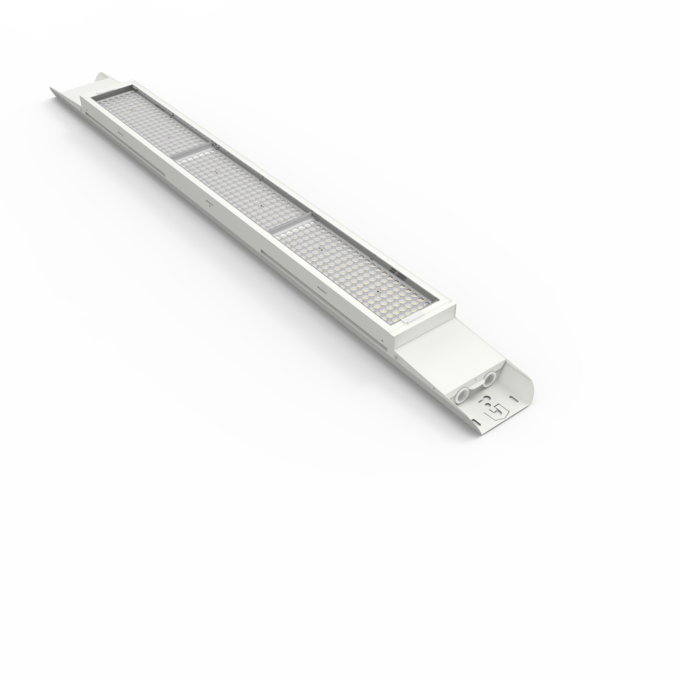

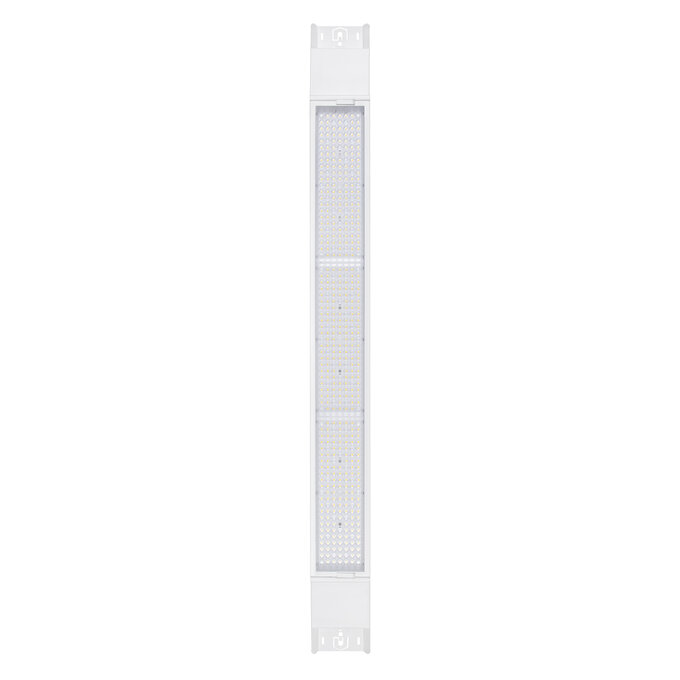

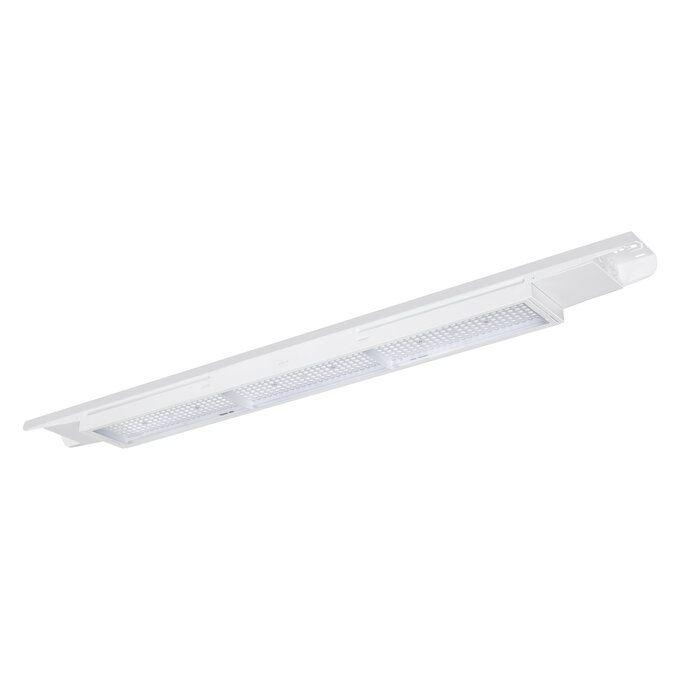

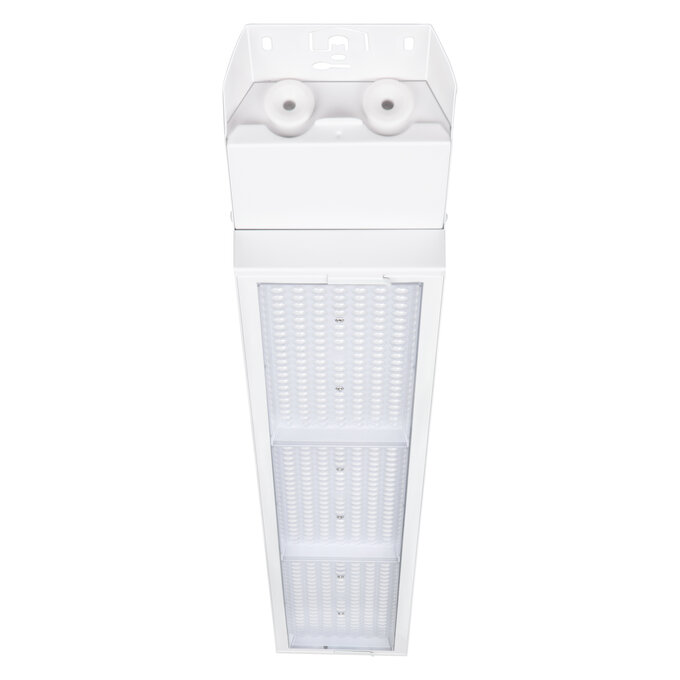

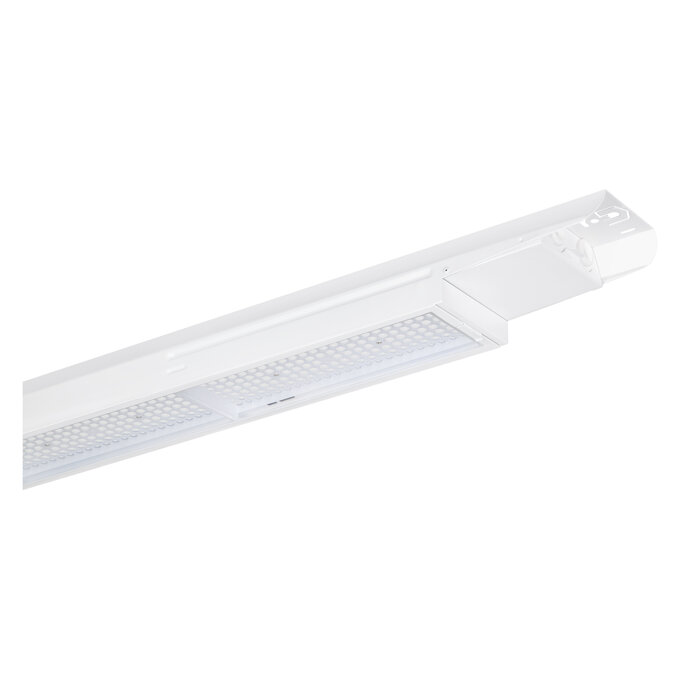

LB FLEX 1200 P 42W 840 N
4099854163654
Product benefits
- Economical thanks to high luminous efficacy up to 155 lm/W

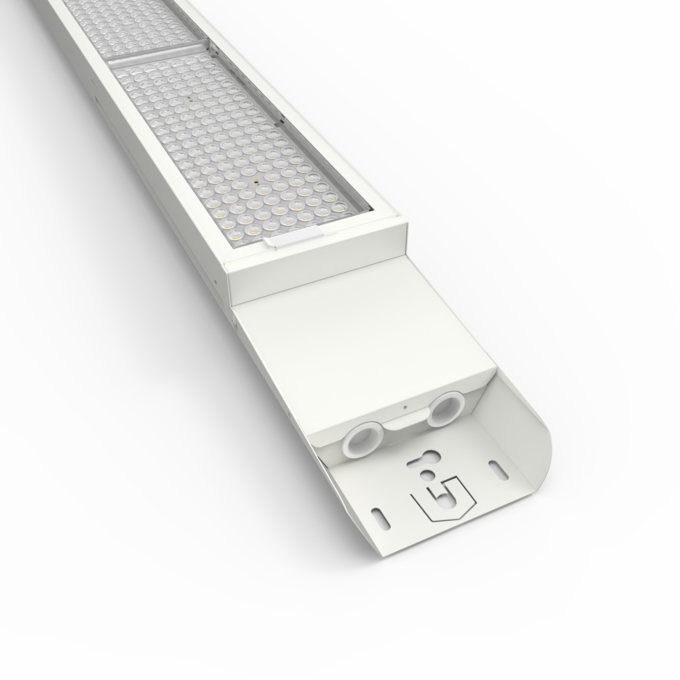

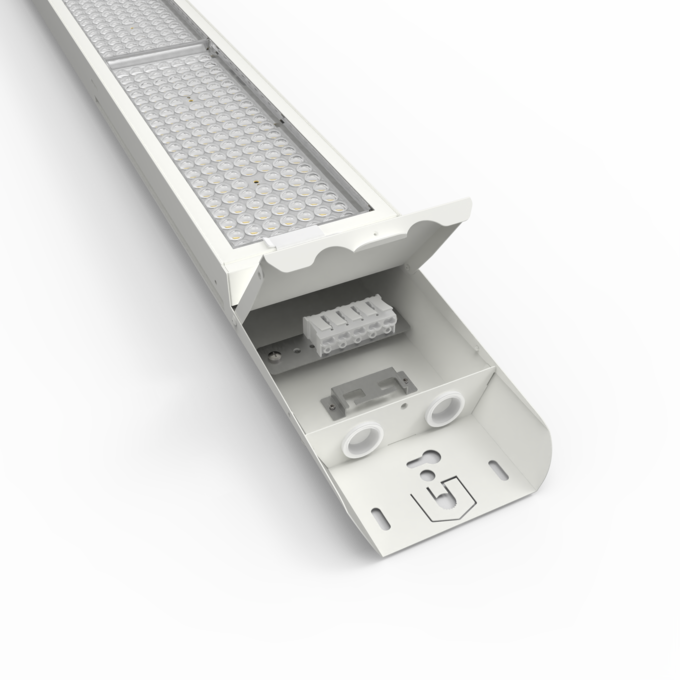

- Easy and quick installation thanks to toolless connector box with 5- and 7-pole terminals
- Modern and robust design
- 5 years guarantee
Areas of application
- Replacement for luminaires with mercury vapor or metal halide lamps
- Warehouses
- Logistics halls
- Industrial and storage facilities
- Discounters, supermarkets
- Sports halls
- Indoor sports facilities
Product features
- Different luminous flux and beam angle for mounting heights of ~ 4 m to ~10 m in 4000 K
- Through-wiring cable already installed
- Long Lifetime (L80/B10): up to 100,000 h
- High color consistency: ≤ 3 SDCM
Equipment / Accessories

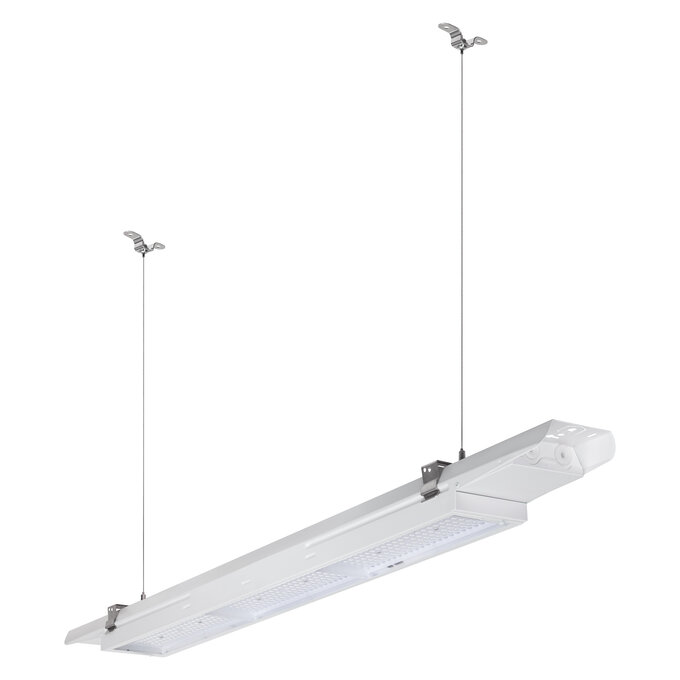

- Suspension kit, ball-proof cover and angulation mounting kit available as separate accessory
References / Links
- For Guarantee see
Adjustable
No
Ambient temperature range
-25…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
60 °
Body material
Steel
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
< 10 %
EPD
LEDV-00020-V01.01-EN
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854163654
Height
65.00 mm
Housing color
White
Inrush current
31.31 A
Inrush current time Th50
282 µs
Length
1236.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
83000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
155 lm/W
Luminous flux
6510 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
18
Max. number of luminaires per miniature circuit breaker C10
30
Max. number of luminaires per miniature circuit breaker C16
30
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface/Suspended
Nominal current
190 mA
Nominal voltage
220…240 V
Nominal wattage
42 W
Number of switching cycles
50000
Operating mode
Electronic control gear (ECG)
Output current
370 mA

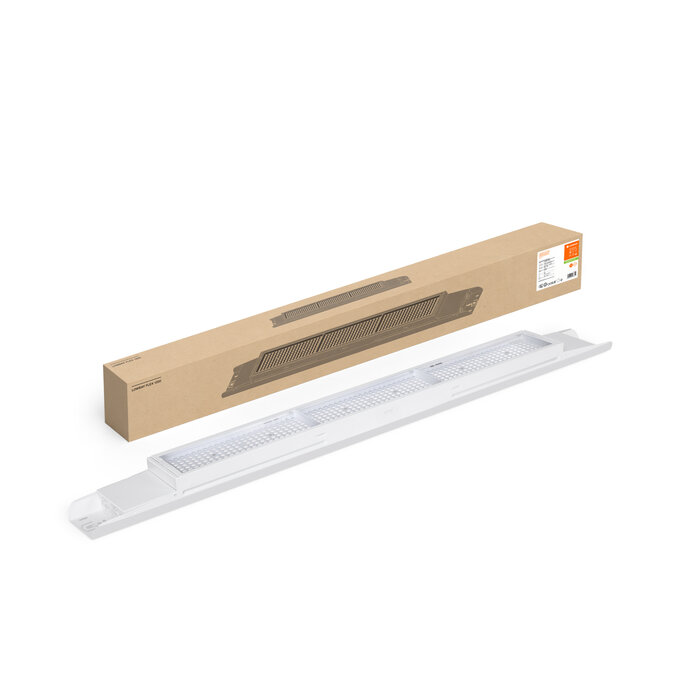

Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
3400.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 3 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 20 %
Type of connection
Terminals, 5-Pole (L1, L2, L3, N, PE)
Type of protection
IP23
Width
115.00 mm
With light source
Yes
