HB P 87W 865 110DEG IP65
4058075692848
Product benefits
- Improved UGR compared to previous generations, down to UGR ≤ 22 in combination with reflector
- High luminous efficacy
- Energy savings of up to 64 % compared to conventional high bay luminaires
- 5 years guarantee
- Optimized weight and size due to compact design
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses
- Logistics halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- Different luminous flux and beam angle for mounting heights of ~ 6 m to 14 m in 4000 K or 6500 K
Equipment / Accessories

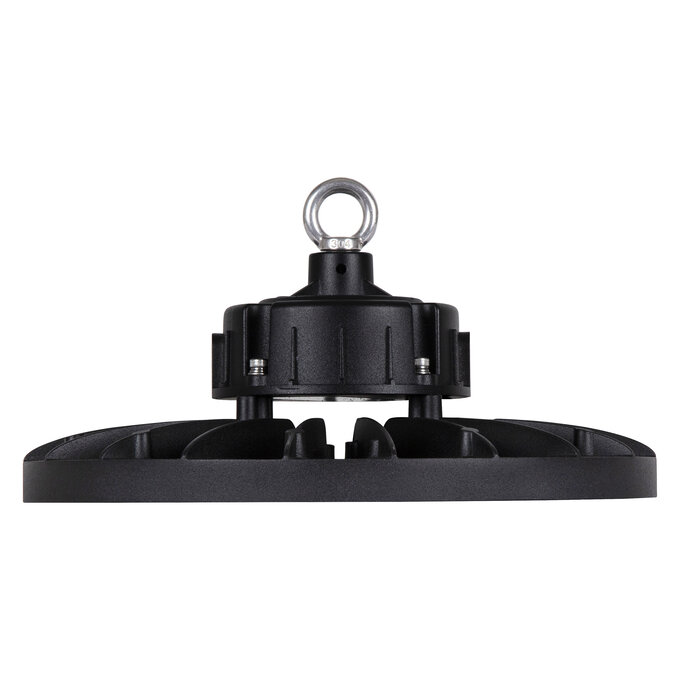

- Mounting hook included
- Mounting brackets, reflectors and refractors available as separate accessory
References / Links
- For Guarantee see
Ambient temperature range
-30…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Aluminum
Cable length
1500 mm
Color rendering index Ra
≥80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Polycarbonate (PC)
Diameter
280.00 mm
Dimmable
No
ECG - Output ripple current
< 10 %
EPD
LEDV-00006-V01.01-EN
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075692848
Height
155.00 mm
Housing color
Black
Inrush current
42 A
Inrush current time Th50
378 µs
Lifespan L70/B50 at 25 °C
80000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
150 lm/W
Luminous flux
13000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
5
Max. number of luminaires per miniature circuit breaker C10
5
Max. number of luminaires per miniature circuit breaker C16
9
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Suspended/Surface
Nominal current
400 mA
Nominal voltage
220…240 V
Nominal wattage
87.00 W
Number of switching cycles
200000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥ 0.95
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
2264.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9017
Replaceable light source
No
Standard deviation of color matching
≤5 sdcm
Temperature range at storage
-40…+70 °C
Total harmonic distortion
< 20 %
Type of connection
Cable, 3-pole
Type of protection
IP65
UGR
≤ 29
With light source
Yes
