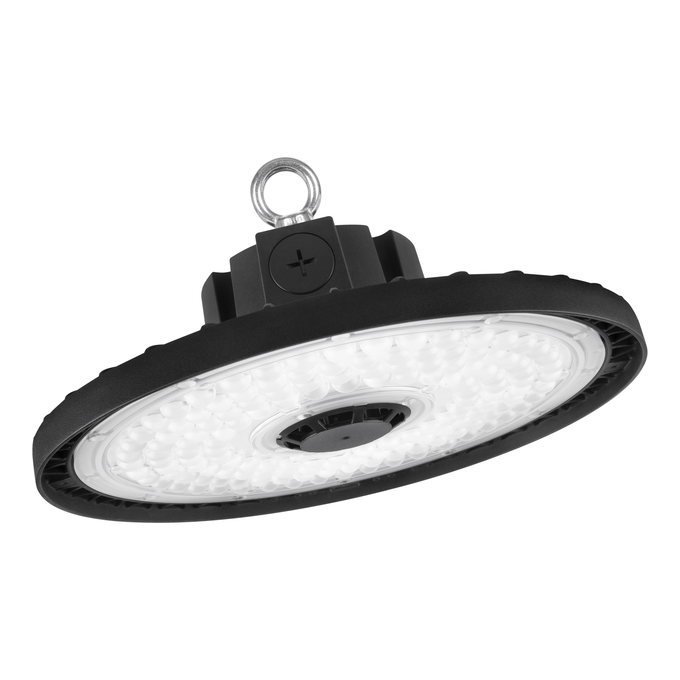

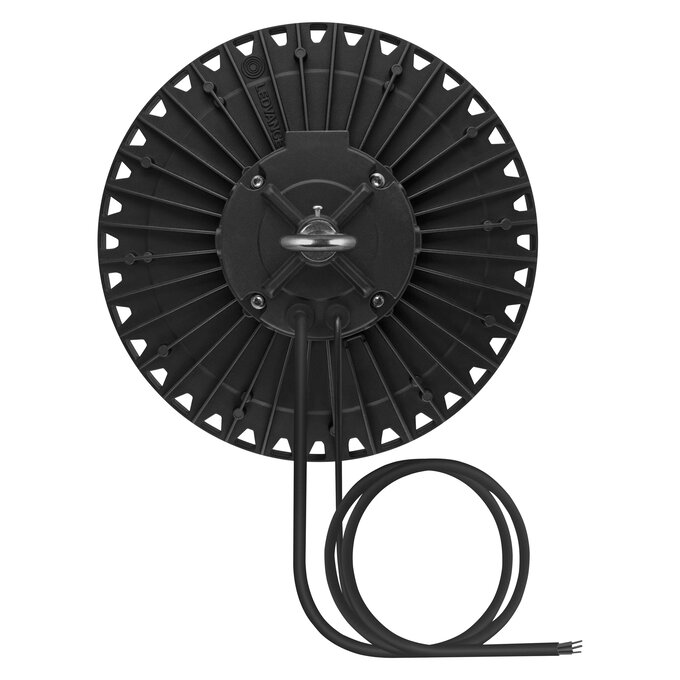

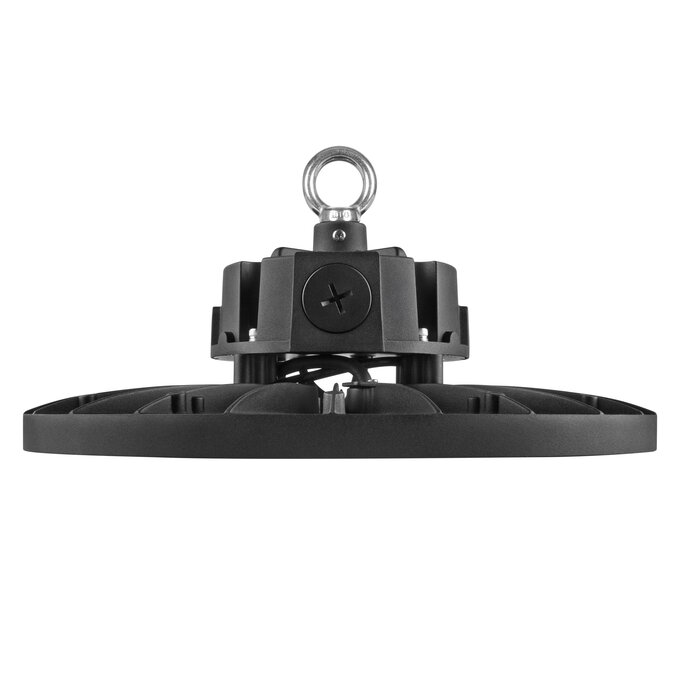

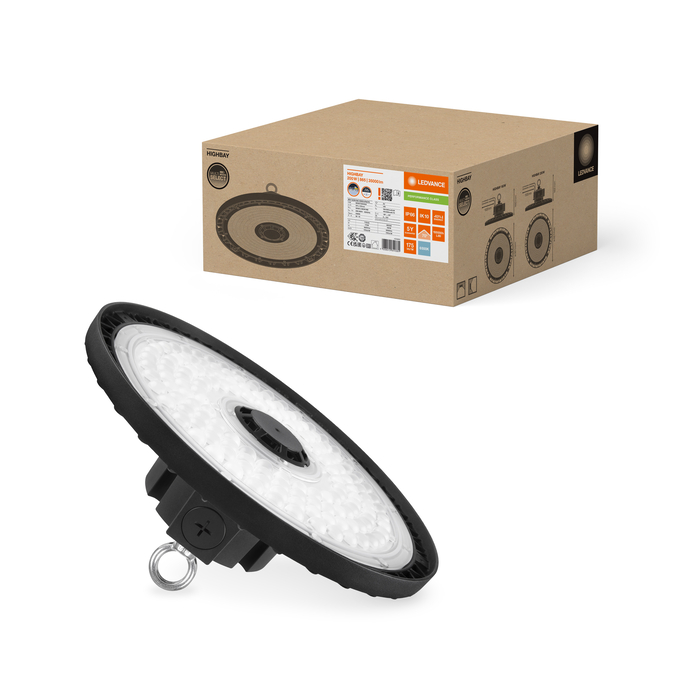

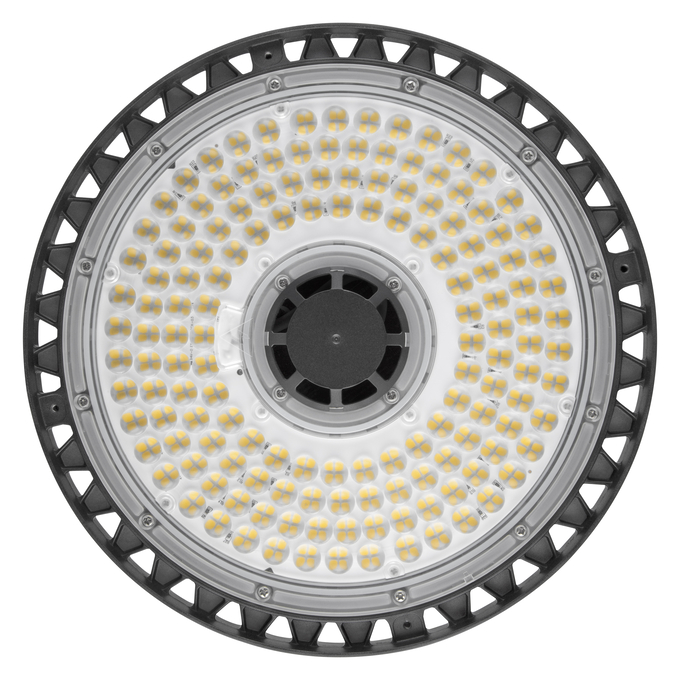

HB P 200W 865 70DEG IP66 PS
4058075844384
Product benefits
- Highly versatile due to selectable lumen steps (Multi Lumen) on the housing
- Improved UGR compared to previous generations, down to UGR ≤ 19 (<150W, 70°) in combination with reflector
- High luminous efficacy
- Energy savings of up to 70 % compared to conventional high bay luminaires
- Optimized weight and size due to compact design
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses, logistic halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- Multi Lumen function: lumen steps selectable
- Different luminous flux and beam angle for mounting heights of ~ 6 m to 18 m in 4000 K or 6500 K
- 0-10 V dimmable
- Lifetime (L80/B10): up to 100,000 h (at 35 °C)
Equipment / Accessories
- Mounting hook included
- Mounting brackets, reflectors and refractors available as separate accessory
References / Links
- For Guarantee see
Added function
MULTI SELECT
Ambient temperature range
-30…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
70 °
Body material
Aluminum
Cable length
1500 mm
Color rendering index Ra
≥80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Polycarbonate (PC)
Diameter
321.00 mm
Dimmable
Yes
ECG - Output ripple current
< 5 %
EPD
LEDV-00032-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075844384
Height
162.00 mm
Housing color
Black
Inrush current
16.7 A
Inrush current time Th50
302 µs
Lifespan L70/B50 at 25 °C
120000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
49000 h
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
175 lm/W
Luminous flux
35000 lm / 30275 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
9
Max. number of luminaires per miniature circuit breaker C10
8
Max. number of luminaires per miniature circuit breaker C16
12
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface/Suspended
Nominal current
880…770 mA
Nominal voltage
220…240 V
Nominal wattage
200 W / 173 W
Number of switching cycles
200000
Operating mode
Integrated LED driver
Output current
825 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.95
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
3300.00 g
Protection class
I
Protection class IK (shock resistance)
IK10
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9005
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤4 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Cable, 3-pole
Type of protection
IP66
With light source
Yes
