HB FLEX SN P 240W 70 ML 840 WT
4099854803611
Product benefits
- Flat housing design to minimize dust accumulation and easy cleaning
- Optimized weight and size due to compact design
- Multiple adjustments of sensor range, daylight detection and hold time
- Suitable for use in dusty and damp locations thanks to high IP rating
- Energy savings of up to 70 % compared to conventional high bay luminaires
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses, logistic halls
- Industry
- Sports facilities
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- Sensor for daylight and motion detection for mounting heights of ~ 4 m to ~12 m
- Multi Lumen: lumen steps selectable
- Different luminous flux and beam angle for mounting heights
- High luminous efficacy: up to 195 lm/W
- Lifetime (L80/B10): up to 100,000 h (at 35 °C)
- Type of protection: up to IP65
- Impact resistance: IK04
Equipment / Accessories

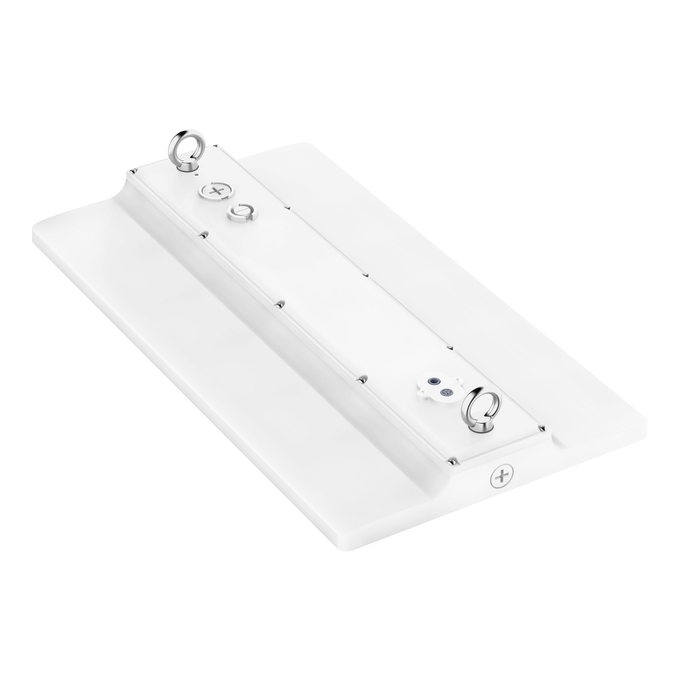

- Sensor and mounting hook included
- Mounting brackets for surface mounting and remote control available as separate accessory
Safety advice
- All electrical connections must be made by a qualified person.
- Terminal block not included. Installation must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- For Guarantee see
120 W
195 lm/W
180 W
190 lm/W
240 W
184 lm/W
Added function
MULTI SELECT
Adjustable
Yes
Ambient temperature range
-30…+50 °C
Application environment
Indoor
Ball shot safe
Yes
Beam angle
70 °
Body material
Aluminum
Cable length
1500 mm
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Detection range of motion sensor
4…12 m
Detection threshold of daylight sensor
10…500 lx
Dimmable
Yes
ECG - Output ripple current
< 5 %
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854803611
Height
106.00 mm
Housing color
White
Inrush current
43.6 A
Inrush current time Th50
156 µs
Length
585.00 mm
Lifespan L70/B50 at 25 °C
130000 h 1)
Lifespan L80/B10 at 25 °C
110000 h 1)
Lifespan L90/B10 at 25 °C
67000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
184 lm/W / 190 lm/W / 195 lm/W
Luminous flux
44160 lm / 34200 lm / 23400 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
10
Max. number of luminaires per miniature circuit breaker C10
8
Max. number of luminaires per miniature circuit breaker C16
12
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting height
4 - 12 m
Mounting location
Ceili
Mounting type
Suspended/Surface
Nominal current
1100/820/540 mA
Nominal voltage
220…240 V
Nominal wattage
240 W / 180 W / 120 W
Number of switching cycles
200000
Operating mode
Integrated LED driver
Output current
1000 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.95
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from June 2026
Product weight
5900.00 g
Protection class
I
Protection class IK (shock resistance)
IK04
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor controlled switching time
10 s… 60 min
Sensor detection angle
360 °
Sensor IK rating
IK04
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
6 kV
Surge capability (L/N-Ground)
6 kV
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Cable, 3-pole
Type of connection for sensor/communication module
Single Zhaga socket (on top)
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP65
Type of sensor
Moti
UGR
< 25
Width
320.00 mm
With light source
Yes
