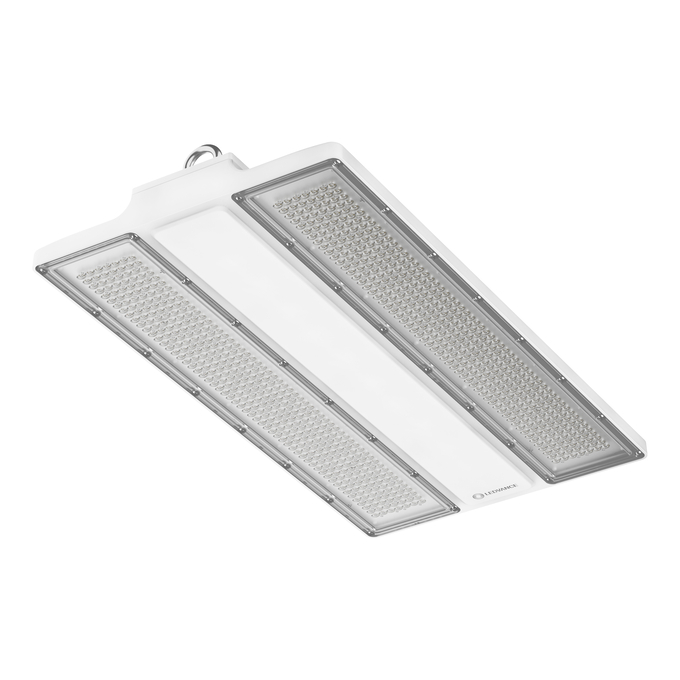

HB FLEX DA P 240W 70 840 WT
4099854538834
Product benefits
- Flat housing design to minimize dust accumulation and easy cleaning
- Optimized weight and size due to compact design
- Ball-proof luminaire with increased physical robustness (according to DIN 18032-3 and DIN 57710-13)
- Energy savings of up to 70 % compared to conventional high bay luminaires
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses, logistic halls
- Industry
- Sports facilities
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- DALI-2 driver with dimming range of 10…100 %
- Different luminous flux and beam angle for mounting heights
- High luminous efficacy: up to 184 lm/W
- Lifetime (L80/B10): up to 100,000 h (at 35 °C)
- Type of protection: up to IP66
- Impact resistance: IK10
Equipment / Accessories

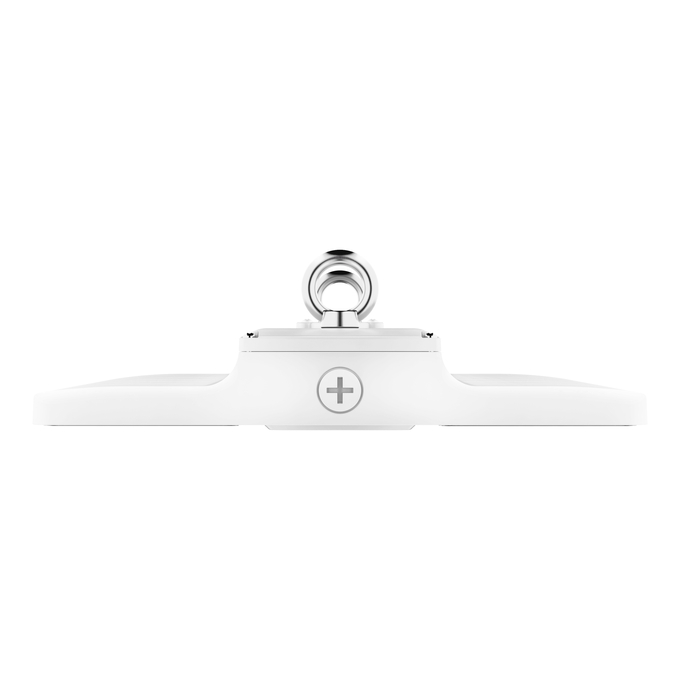

- Mounting hook included
- Mounting brackets for surface and chain mounting available as separate accessory
Safety advice
- All electrical connections must be made by a qualified person.
- Terminal block not included. Installation must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-30…+50 °C
Application environment
Indoor
Ball shot safe
Yes
Beam angle
70 °
Body material
Aluminum
Cable length
1500 mm
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
Yes
ECG - Output ripple current
< 5 %
EPD
LEDV-00069-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854538834
Height
95.00 mm
Housing color
White
Inrush current
60 A
Inrush current time Th50
140 µs
Length
585.00 mm
Lifespan L70/B50 at 25 °C
130000 h 1)
Lifespan L80/B10 at 25 °C
110000 h 1)
Lifespan L90/B10 at 25 °C
67000 h
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
184 lm/W
Luminous flux
44160 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
10
Max. number of luminaires per miniature circuit breaker C10
8
Max. number of luminaires per miniature circuit breaker C16
12
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface/Suspended
Nominal current
1050 mA
Nominal voltage
220…240 V
Nominal wattage
240.00 W
Number of switching cycles
200000
Operating mode
Integrated LED driver
Output current
1000 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
5800.00 g
Protection class
I
Protection class IK (shock resistance)
IK10
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
6 kV
Surge capability (L/N-Ground)
6 kV
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Cables
Type of dimming
DALI
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP66
Width
320.00 mm
With light source
Yes
