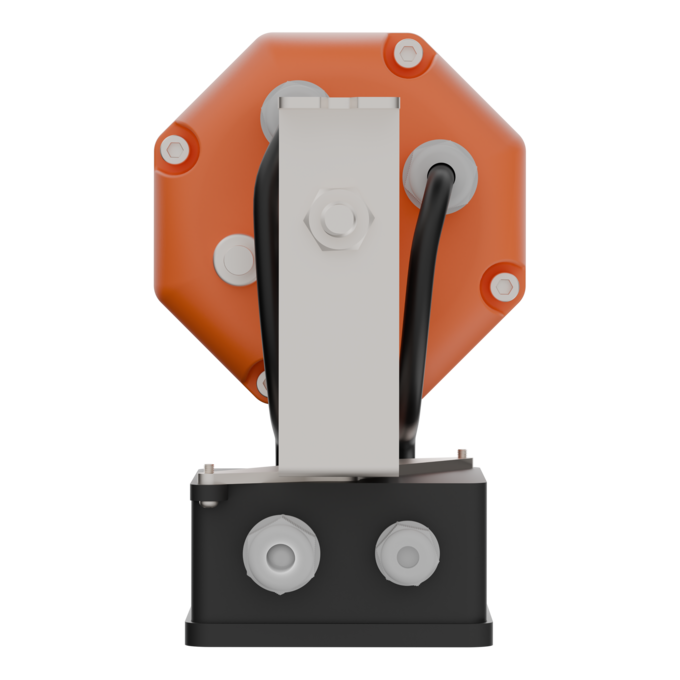

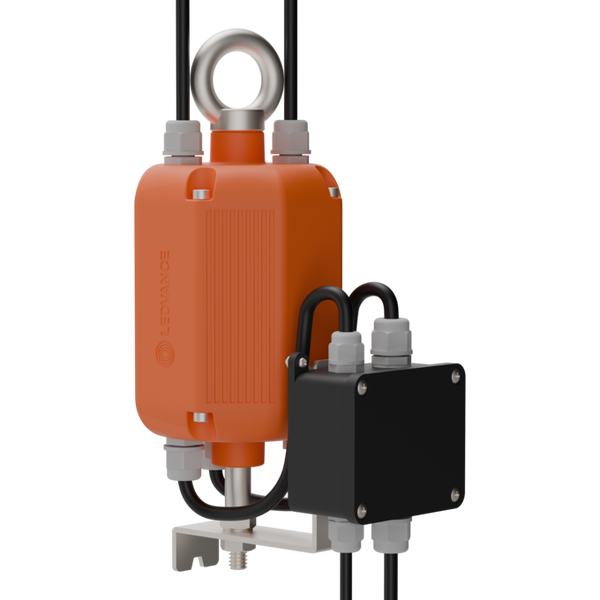

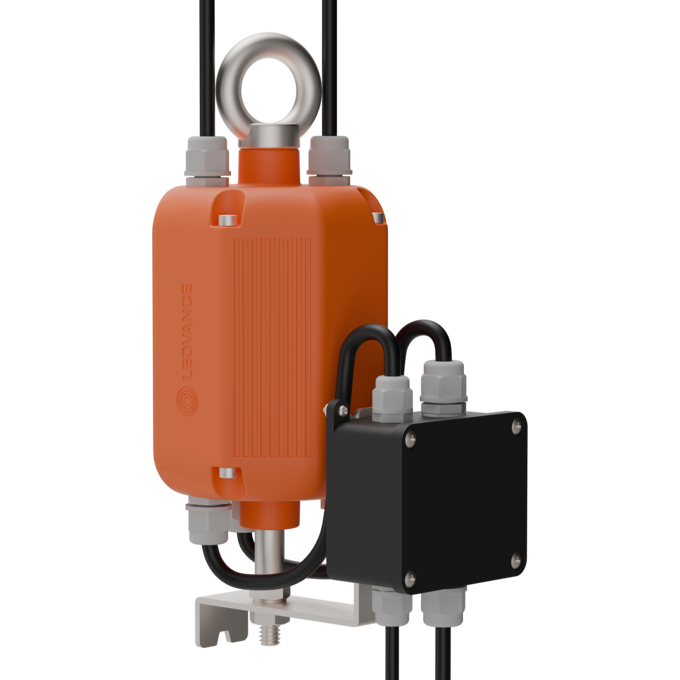

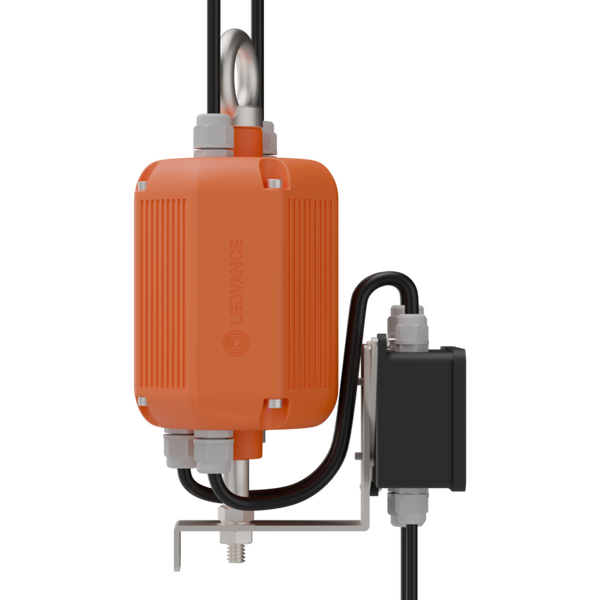

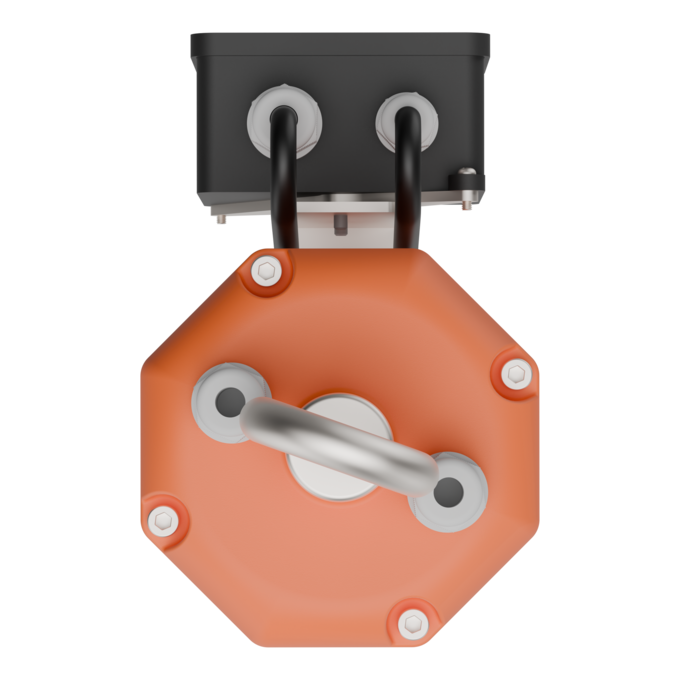

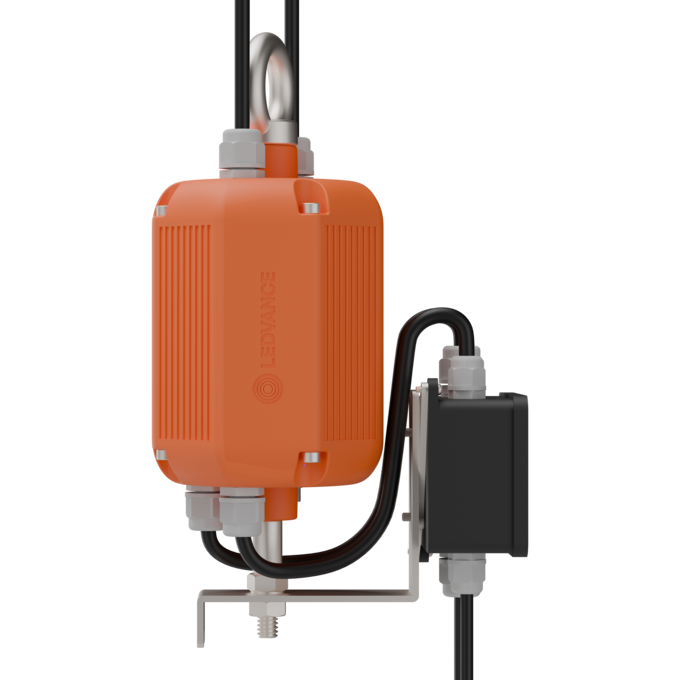

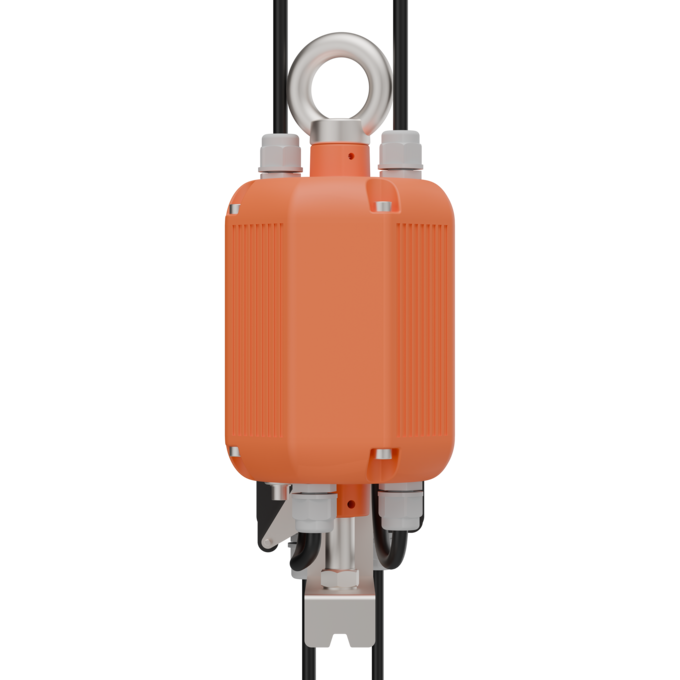

HB EL CONV BOX 30W 3H MT AT
4099854690624
Product benefits
- Conversion of HIGH BAY FLEX and GEN 5 on--off to emergency luminaires
- Emergency conversion unit reduces stock keeping complexity from emergency lighting
- Easy testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Simple manual testing of luminaires with emergency lighting function by using a remote control (not included)
- Operation of integrated emergency lighting function with long life Li-ion battery with 3h battery discharge time
Areas of application
- Buildings requiring up to 3 h emergency light operation
Product features
- Automatic switchover to emergency mode and dimming of the luminaire with 0-10V interface
- Function test: manual (MA) or automatic (AT)
- Battery technology: Li-ion
- LED indicator light
Equipment / Accessories
- Remote control for a simple manual test available as separate accessory
Safety advice
- All electrical connections must be made by a qualified person.
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- For Guarantee see
Ambient temperature range
+5…+50 °C
Battery charging time
24 h
Battery life in emergency operation mode
>3h
Battery size [GMS]
Others
Body material
Aluminum
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
GTIN
4099854690624
Height
180.00 mm
Inrush current
45 A
Integrated test switch
No
Length
280.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
16
Max. number of luminaires per miniature circuit breaker C16
21
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Suspended
Nominal capacity of battery
6700 mAh
Nominal current
200 mA
Nominal voltage
220…240 V
Nominal voltage of battery
28.8 V
Nominal wattage
30.00 W
Number of switching cycles
5000
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Orange
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2026
Product weight
2710.00 g
Protection class
I
RAL Color (most similar)
RAL 2003
Replaceable light source
No
Temperature range at storage
-20…+45 °C
Type of Battery
Lithium ion
Type of connection
Screwless
Type of emergency light operation
Maintain
Type of emergency operation test
Automatic
Type of protection
IP65
Wattage in emergency operation mode
30.0 W
Wattage in maintained operation mode
30 W
Width
180.00 mm
