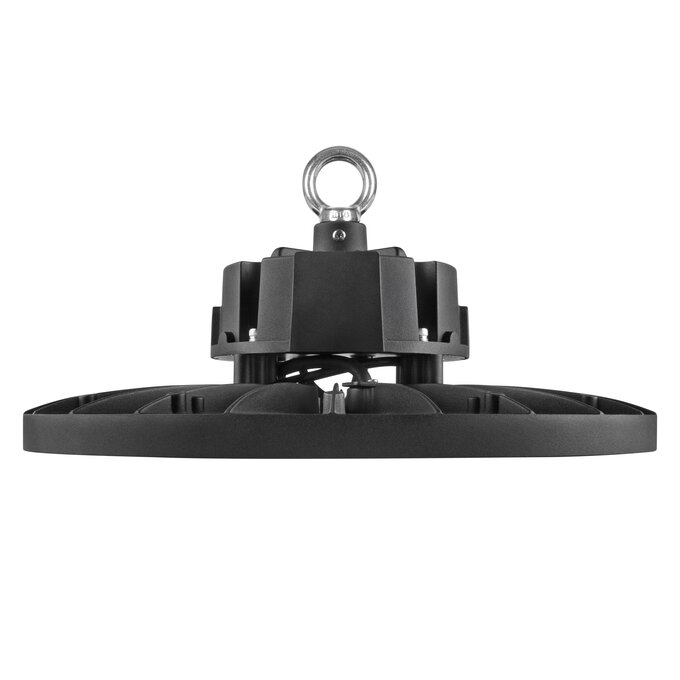

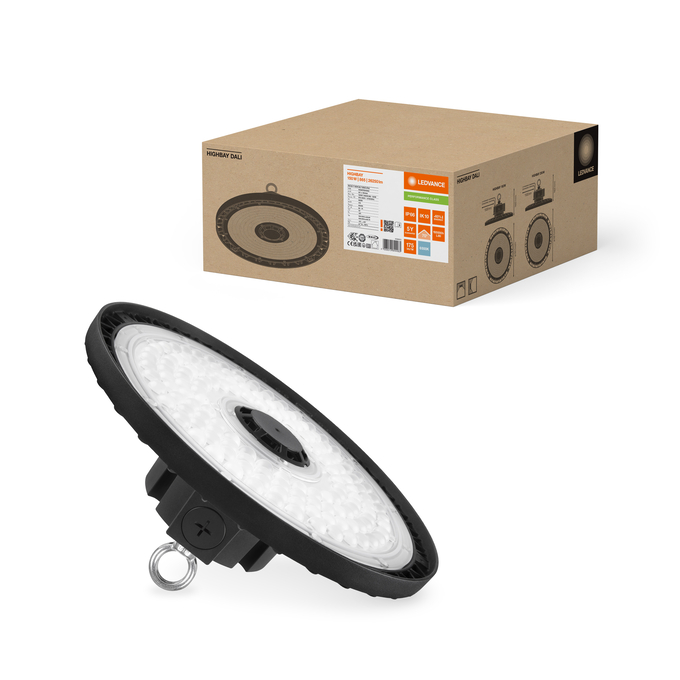

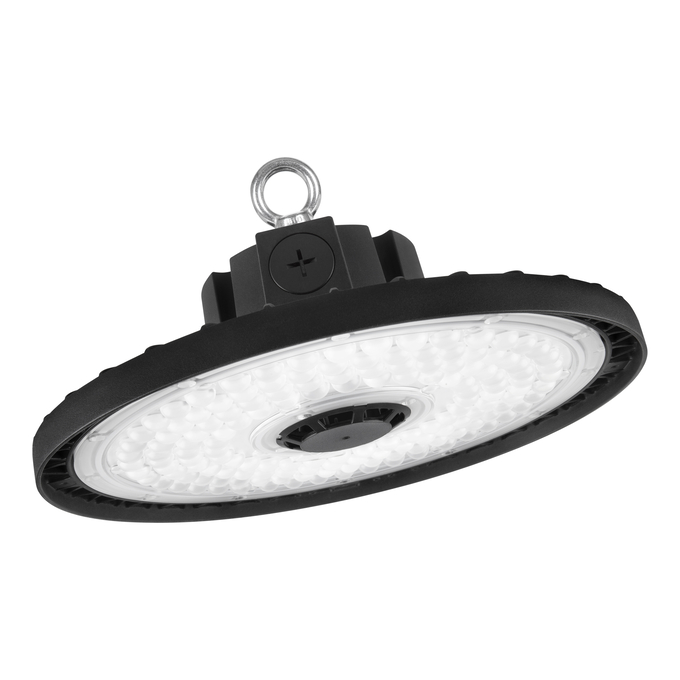

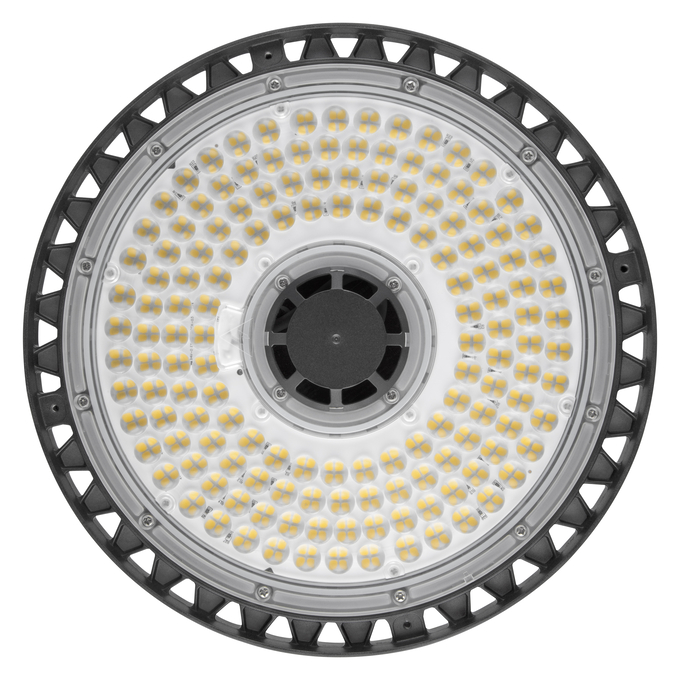

HB DA P 150W 865 70DEG IP66
4058075844483
Product benefits
- Improved UGR compared to previous generations, down to UGR ≤ 19 (<150W, 70°) in combination with reflector
- High luminous efficacy
- Energy savings of up to 70 % compared to conventional high bay luminaires
- Optimized weight and size due to compact design
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses, logistic halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- DALI versions with IoT-ready DALI-2 driver
- Different luminous flux and beam angle for mounting heights of ~ 6 m to 18 m in 4000 K or 6500 K
- Dimming range (DALI): 10…100 %
- Lifetime (L80/B10): up to 100,000 h (at 35 °C)
Equipment / Accessories
- Mounting hook included
- Mounting brackets, reflectors and refractors available as separate accessory
References / Links
- For Guarantee see
Added function
VIVARES
Ambient temperature range
-30…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
70 °
Body material
Aluminum

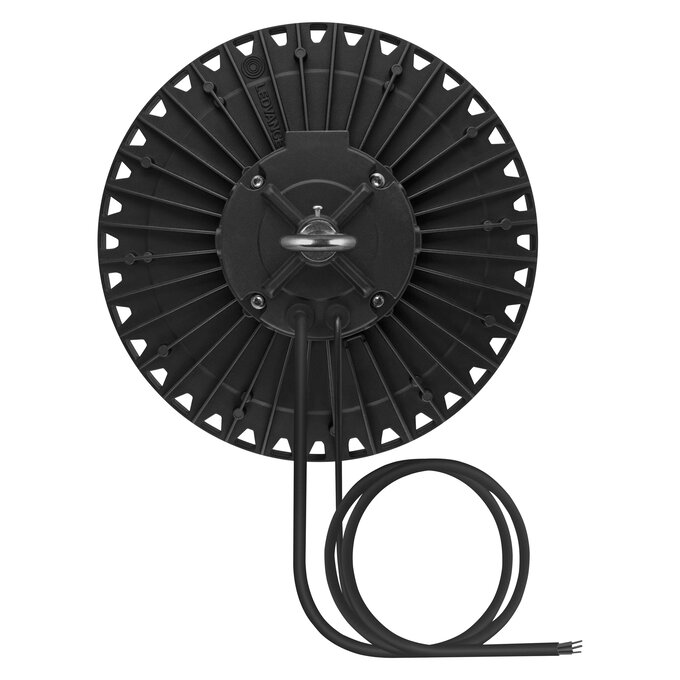

Cable length
1500 mm
Color rendering index Ra
≥80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
321.00 mm
Dimmable
Yes
ECG - Output ripple current
< 5 %
EPD
LEDV-00032-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075844483
Height
160.00 mm
Housing color
Black
Inrush current
17.1 A
Inrush current time Th50
314 µs
Lifespan L70/B50 at 25 °C
120000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
49000 h
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
175 lm/W
Luminous flux
26250 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
13
Max. number of luminaires per miniature circuit breaker C10
10
Max. number of luminaires per miniature circuit breaker C16
16
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface/Suspended
Nominal current
665.000 mA
Nominal output current
615 mA
Nominal voltage
220…240 V
Nominal wattage
150.00 W
Number of switching cycles
200000
Operating mode
Integrated LED driver
Output current
615 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.95
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
2900.00 g
Protection class
I
Protection class IK (shock resistance)
IK10
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9005
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤4 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Cable, 3-pole
Type of dimming
DALI-2
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP66
With light source
Yes
