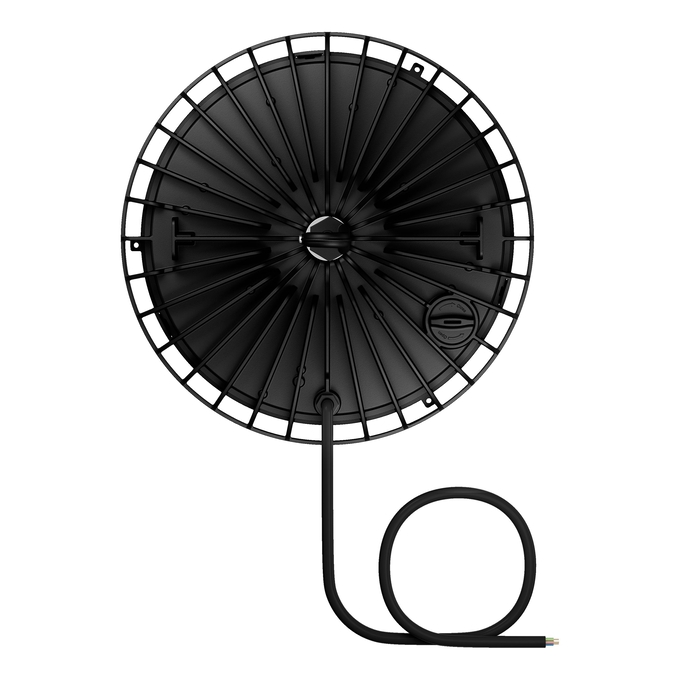

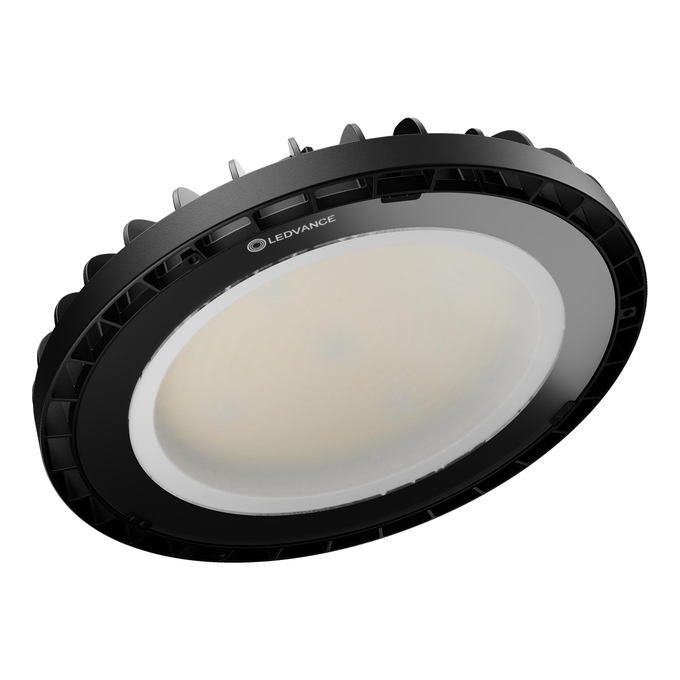

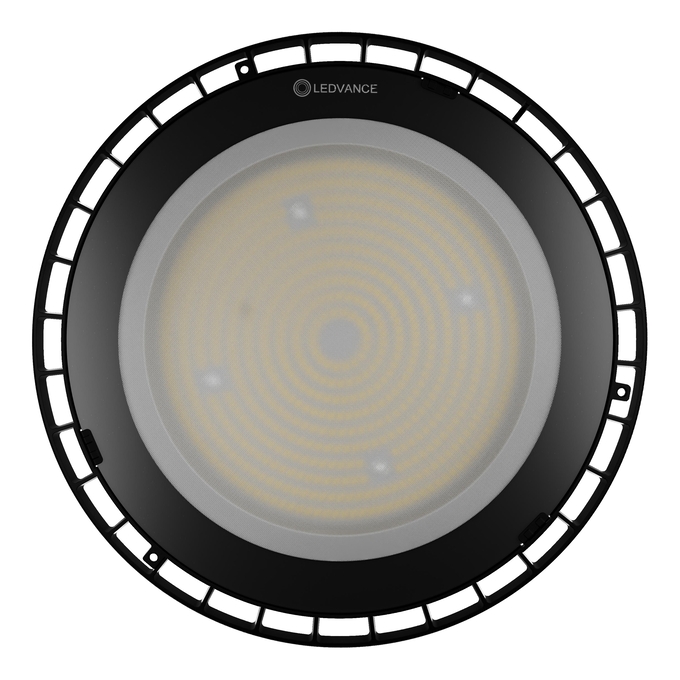

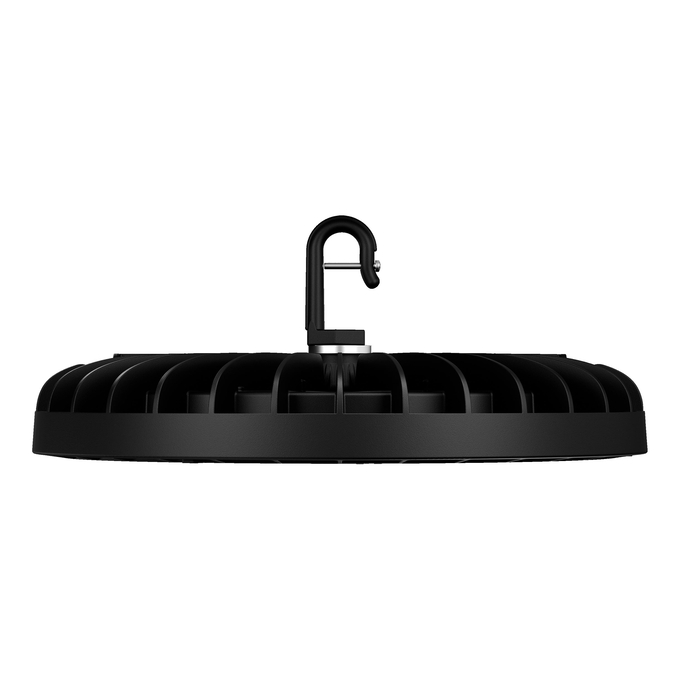

HB COMP V 220W ML 8405065 IP65
4099854743832
Product benefits
- Modern exclusive design
- Energy savings of up to 60 % compared to conventional high bay luminaires
- Optimized weight and size due to compact design
- 5 years guarantee
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses
- Logistics halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- High luminous efficacy: up to 165 lm/W
- Black aluminum housing, tempered opal glass cover
- Multi Lumen: lumen steps selectable
- Multi Color function: 4000 K, 5000 K and 6500 K
- Very long lifetime (L70): up to 100,000 h (at 25 °C)
- Operating temperature: -20…50 °C
- High color consistency: ≤ 5 sdcm
- Type of protection: IP65
Equipment / Accessories
- Bracket available
- Reflector available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Terminal block not included. Installation must be made by a qualified person.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
150 W
150 lm/W
180 W
150 lm/W
220 W
150 lm/W
Added function
MULTI SELECT
Adjustable
Yes
Ambient temperature range
-20…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Aluminum
Cable length
500 mm
Color rendering index Ra
≥80
Color temperature
4000 K / 5000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Diameter
300.00 mm
Dimmable
No
ECG - Output ripple current
< 10 %
EPD
LEDV-00074-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854743832
Height
50.00 mm
Housing color
Black
Inrush current
25.6 A
Inrush current time Th50
399 µs
Lifespan L70/B50 at 25 °C
110000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Cool Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
160 lm/W / 157 lm/W / 155 lm/W / 150 lm/W
Luminous flux
34100 lm / 33000 lm / 28260 lm / 27000 lm / 24000 lm / 22500 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
9
Max. number of luminaires per miniature circuit breaker C10
8
Max. number of luminaires per miniature circuit breaker C16
12
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface/Suspended
Nominal current
960.000 mA
Nominal voltage
220…240 V
Nominal wattage
220 W / 180 W / 150 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
965 / 800 / 682 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2026
Product weight
2300.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
RAL Color (most similar)
RAL 9017
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤5 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
2 kV
Surge capability (L/N-Ground)
4 kV
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Cable, 3-pole
Type of emergency operation test
None
Type of protection
IP65/IP65
With light source
Yes
