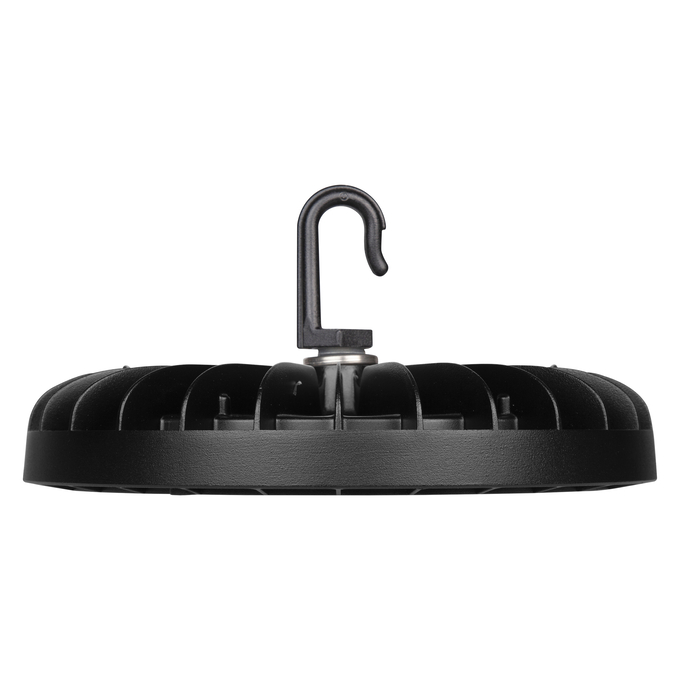

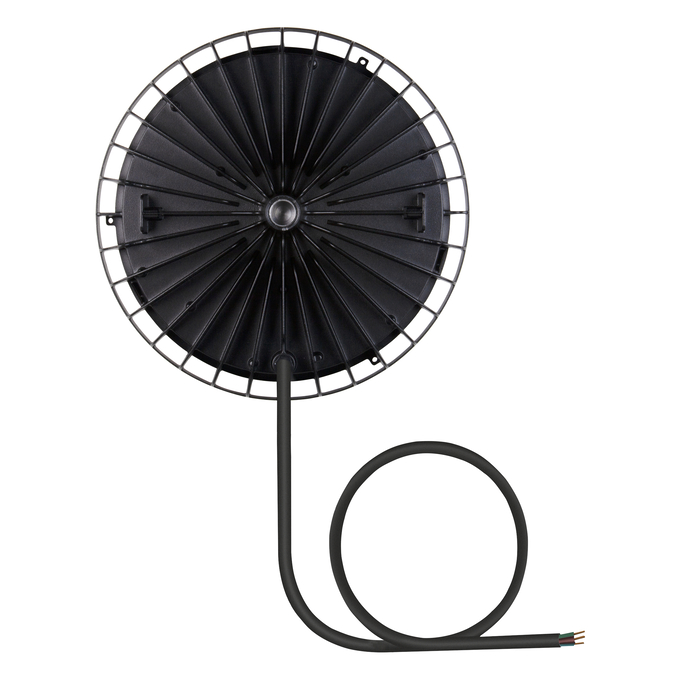

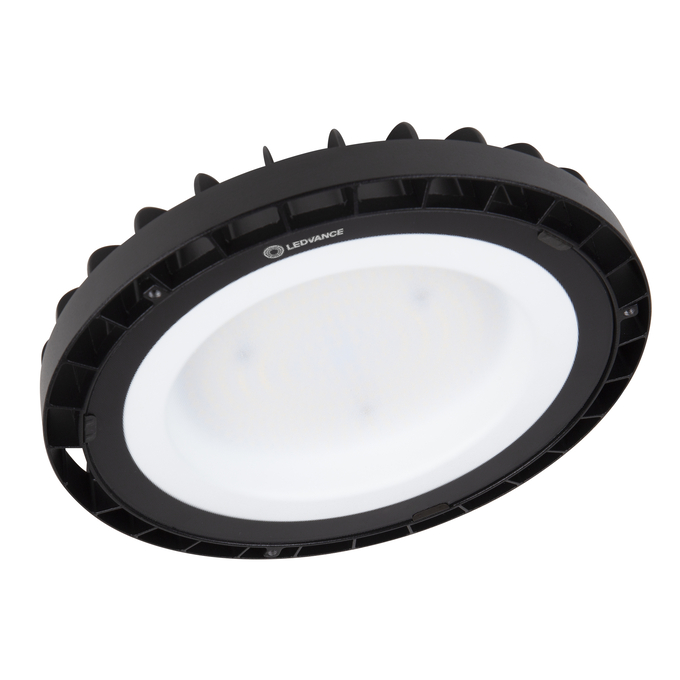

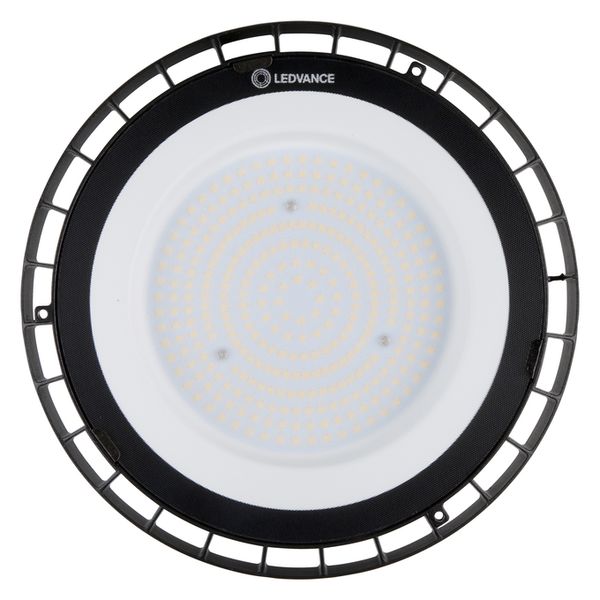

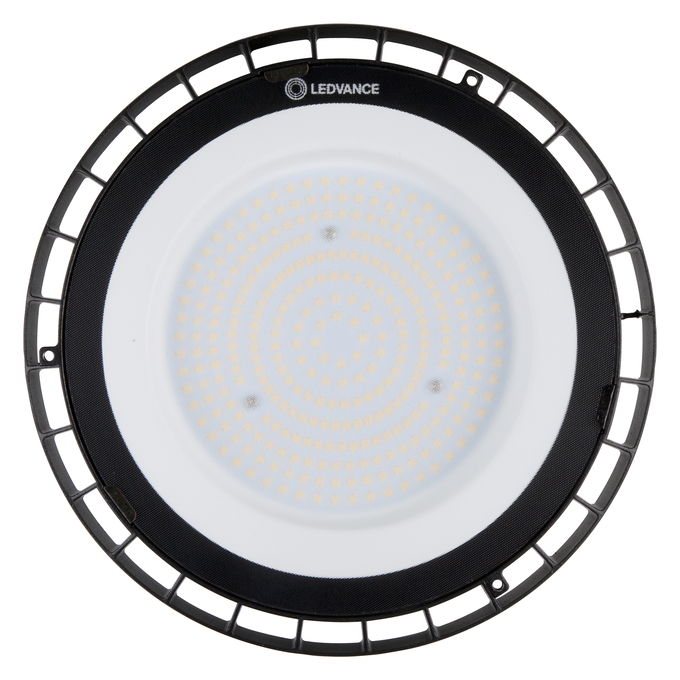

HB COMP V 166W 865 110DEG IP65
4058075708228
Product benefits
- Modern exclusive design
- Energy savings of up to 60 % compared to conventional high bay luminaires
- Optimized weight and size due to compact design
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses
- Logistics halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- Operating temperature: -20…45 °C
- Black aluminum housing, tempered glass cover
- Opal cover
- Type of protection: IP65
- Lifetime (L70): up to 50,000 h
- High luminous efficacy: up to 120 lm/W
Equipment / Accessories
- Bracket available
- Reflector available
References / Links
- For Guarantee see
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Aluminum
Cable length
500 mm
Color rendering index Ra
> 80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Diameter
260.00 mm
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075708228
Height
50.00 mm
Housing color
Black
Inrush current
8.34 A
Inrush current time Th50
19.84 µs
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
45000 h 1)
Lifespan L90/B10 at 25 °C
30000 h
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W
Luminous flux
20000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
17
Max. number of luminaires per miniature circuit breaker C10
11
Max. number of luminaires per miniature circuit breaker C16
17
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Post top
Nominal current
720 mA
Nominal voltage
220…240 V
Nominal wattage
166.00 W
Number of switching cycles
> 100000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
1500.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
RAL Color (most similar)
RAL 9017
Replaceable light source
No
Standard deviation of color matching
≤5 sdcm
Total harmonic distortion
< 20 %
Type of connection
Cable, 3-pole
Type of protection
IP65
With light source
Yes
