HB COMP V 120W ML 8405065 IP65
4099854743825
Product benefits
- Modern exclusive design
- Energy savings of up to 60 % compared to conventional high bay luminaires
- Optimized weight and size due to compact design
- 5 years guarantee
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses
- Logistics halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- High luminous efficacy: up to 165 lm/W
- Black aluminum housing, tempered opal glass cover

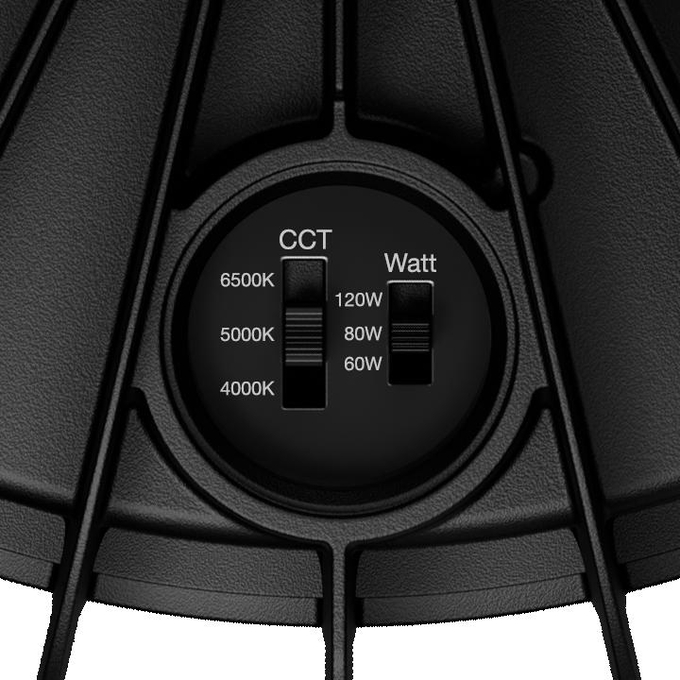

- Multi Lumen: lumen steps selectable
- Multi Color function: 4000 K, 5000 K and 6500 K
- Very long lifetime (L70): up to 100,000 h (at 25 °C)
- Operating temperature: -20…50 °C
- High color consistency: ≤ 5 sdcm
- Type of protection: IP65
Equipment / Accessories
- Bracket available
- Reflector available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Terminal block not included. Installation must be made by a qualified person.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
120 W
150 lm/W
60 W
150 lm/W
80 W
150 lm/W
Added function
MULTI SELECT
Adjustable
Yes
Ambient temperature range
-20…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Aluminum
Cable length
500 mm
Color rendering index Ra
≥80
Color temperature
4000 K / 5000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Diameter
260.00 mm
Dimmable
No
ECG - Output ripple current
< 10 %
EPD
LEDV-00074-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854743825
Height
50.00 mm
Housing color
Black
Inrush current
19.2 A
Inrush current time Th50
240 µs
Lifespan L70/B50 at 25 °C
110000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Cool Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
165 lm/W / 160 lm/W / 150 lm/W
Luminous flux
19200 lm / 18000 lm / 12800 lm / 12000 lm / 9900 lm / 9000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
13
Max. number of luminaires per miniature circuit breaker C10
10
Max. number of luminaires per miniature circuit breaker C16
16
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface/Suspended
Nominal current
530.000 mA
Nominal voltage
220…240 V
Nominal wattage
120 W / 80 W / 60 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
535 / 361 / 278 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2026
Product weight
1600.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
RAL Color (most similar)
RAL 9017
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤5 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
2 kV
Surge capability (L/N-Ground)
4 kV
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Cable, 3-pole
Type of emergency operation test
None
Type of protection
IP65/IP65
With light source
Yes
