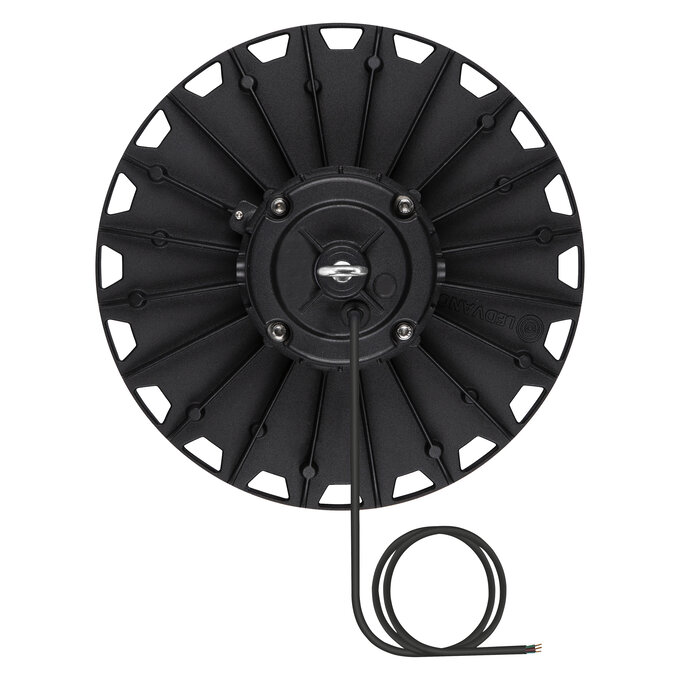

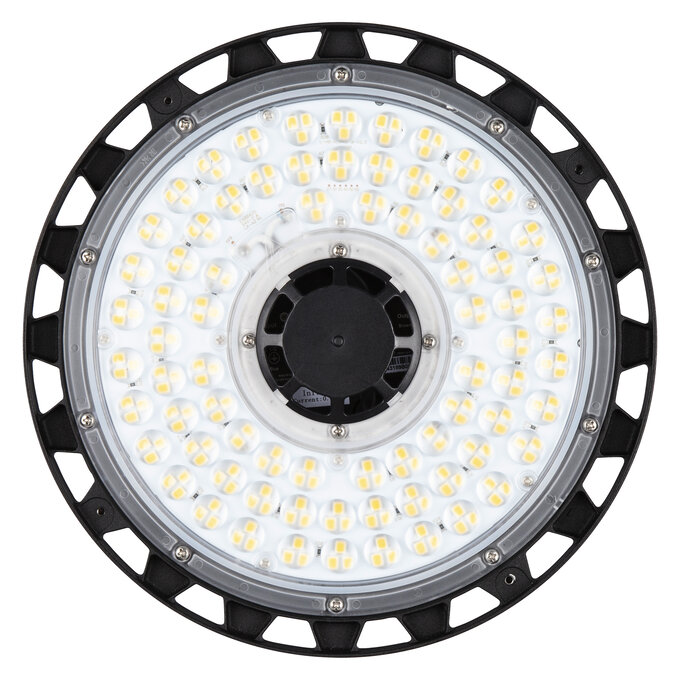

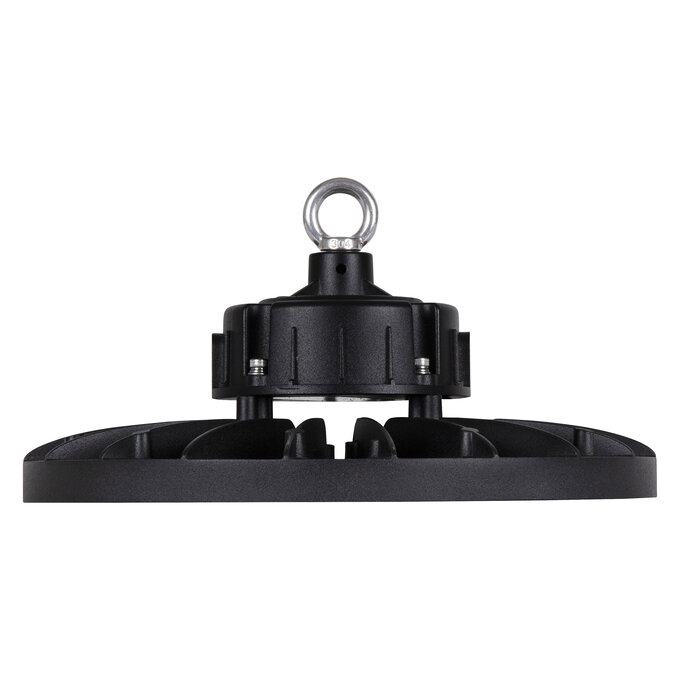

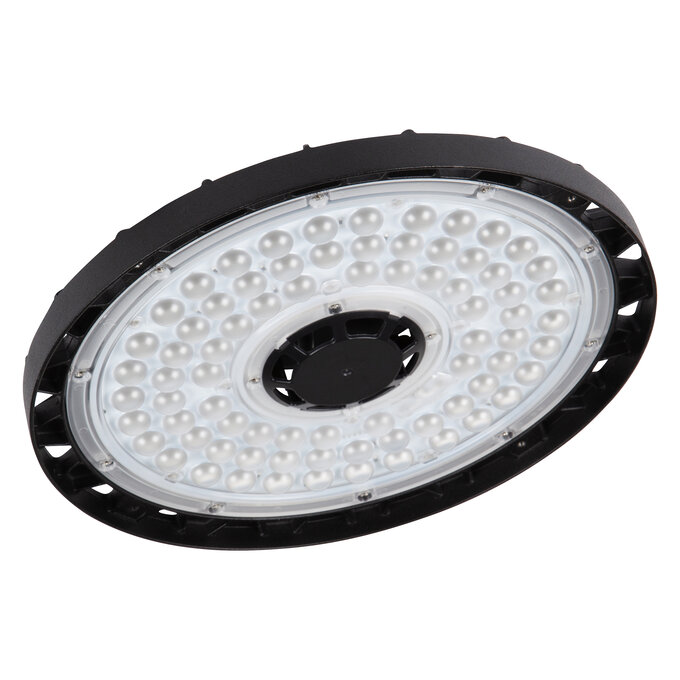

HB 93 W 6500 K 70DEG IP65
4058075452541
Product benefits
- Improved UGR compared to previous generations, down to UGR ≤ 22 in combination with reflector
- High luminous efficacy
- Energy savings of up to 60 % compared to conventional high bay luminaires
- 5 years guarantee
- Optimized weight and size due to compact design
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses
- Logistics halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- Different luminous flux and beam angle for mounting heights of ~ 6 m to 14 m in 4000 K or 6500 K
Equipment / Accessories
- Mounting hook included
- Mounting brackets, reflectors and refractors available as separate accessory
References / Links
- For Guarantee see
Ambient temperature range
-30…+55 °C
Application environment
Indoor
Beam angle
70 °
Body material
Aluminum
Cable length
1500 mm
Color rendering index Ra
≥80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
280.00 mm
Dimmable
No
ECG - Output ripple current
≤ 10 %
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075452541
Height
143.00 mm
Housing color
Black
Inrush current
44 A
Inrush current time Th50
380 µs
Lifespan L70/B50 at 25 °C
80000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
140 lm/W
Luminous flux
13000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
6
Max. number of luminaires per miniature circuit breaker C10
6
Max. number of luminaires per miniature circuit breaker C16
8
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended/Surface
Nominal current
430 mA
Nominal voltage
220…240 V
Nominal wattage
93.00 W
Number of switching cycles
200000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.95
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
1800.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 5 sdcm
Temperature range at storage
-40…+70 °C
Total harmonic distortion
≤ 20 %
Type of connection
Cable, 3-pole
Type of protection
IP65
With light source
Yes
