FS COMP SN CH V 88W 840 GY
4099854540899
Product benefits
- Direct and indirect light can be controlled separately
- Daylight and motion-dependent control thanks to an integrated sensor

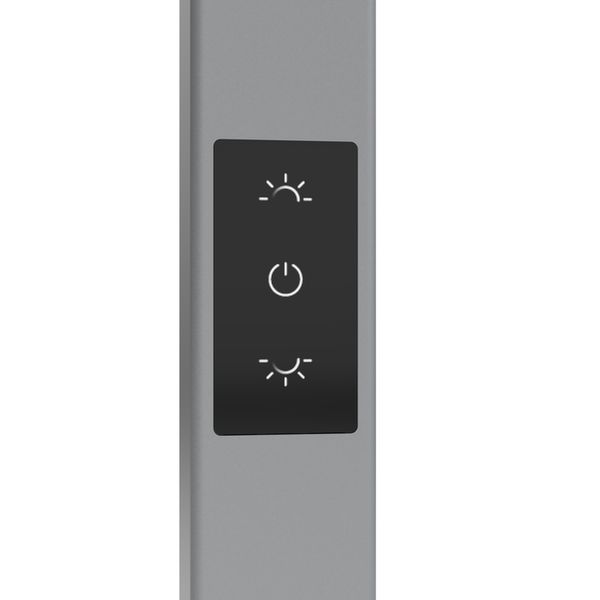

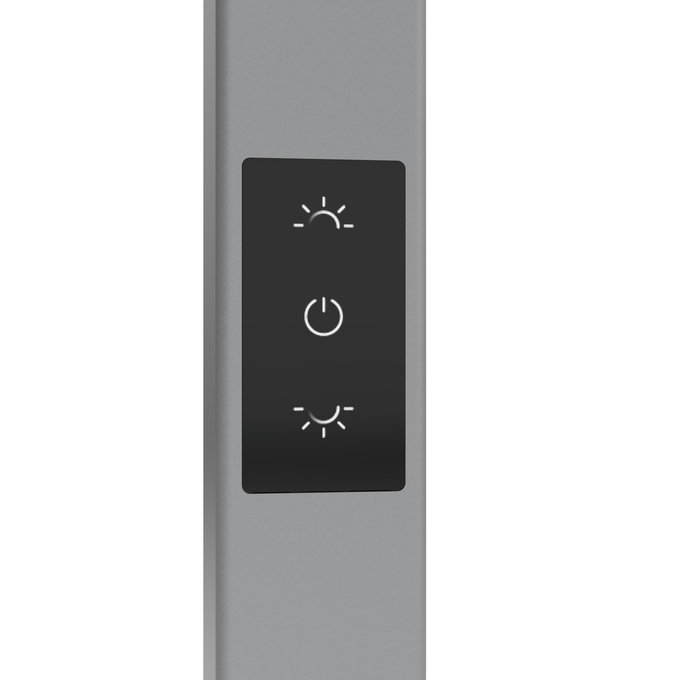

- Manual dimming and wished lighting level can be set via integrated touch panel
- Flexible positioning of the luminaire thanks to a 2,500 mm cable length
Areas of application
- For use at single or double desks
- Individual offices
- Open-space office
- Home offices
Product features
- High lumen output with overall up to 12,600 lm (9,000 lm indirect and 3,600 lm direct)
- High luminous efficacy: up to 144 lm/W
- Diffuser prismatic (direct) and transparent (indirect) for an overall glare reduction of UGR <19
- Available in white (like RAL9003), grey (like RAL9006) and black (like RAL9005)
- Lifetime (L80/B10): up to 75,000 h (at 25 °C)
- Powder coated luminaire made of aluminum
- Color temperature 4,000 K with SDCM <3 and CRI 80

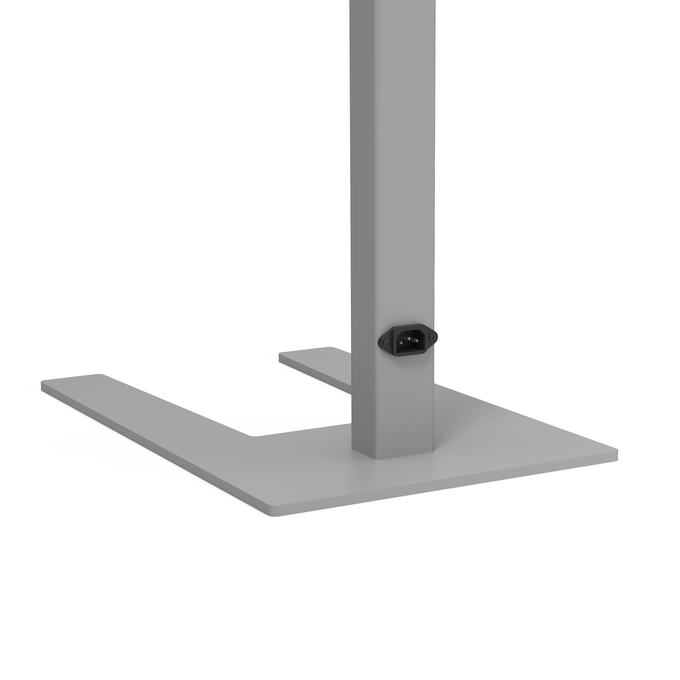

- Integrated IEC socket for a flexible connection
- Versions with EU plug or Swiss plug (CH) available
Equipment / Accessories
- Accessories for mounting the luminaire included
Safety advice
- All electrical connections must be made by a qualified person.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- For Guarantee see
Adjustable
No
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 ° x 80 °
Body material
Aluminum
Cable length
2500 mm
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Detection range of motion sensor
1.2…1.5 m
Dimmable
Yes
ECG - Output ripple current
< 5 %
EPD
LEDV-00062-V01.01-EN
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854540899
Height
1971.00 mm
Housing color
Gray
Inrush current
28.75 A
Inrush current time Th50
308 µs
Length
707.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
52000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
144 lm/W
Luminous flux
12600 lm 1)
Luminous intensity
3297 cd
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
7
Max. number of luminaires per miniature circuit breaker C10
7
Max. number of luminaires per miniature circuit breaker C16
12
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Floor
Mounting type
Standing
Nominal current
400.000 mA
Nominal voltage
220…240 V
Nominal wattage
88.00 W
Number of switching cycles
50000
Operating mode
Integrated LED driver
Output current
1750 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product weight
12500.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9006
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor controlled switching time
1800+1800 s
Sensor detection angle
120 °
Sensor IK rating
IK03
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
< 3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 6 %
Type of connection
Plug type J (CH)
Type of protection
IP20
Type of sensor
Moti
UGR
< 19
Width
310.00 mm
With light source
Yes
