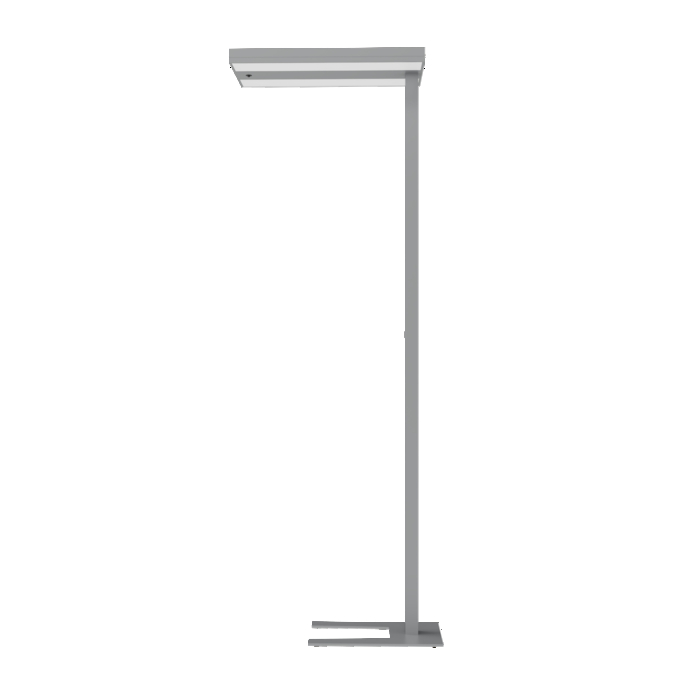

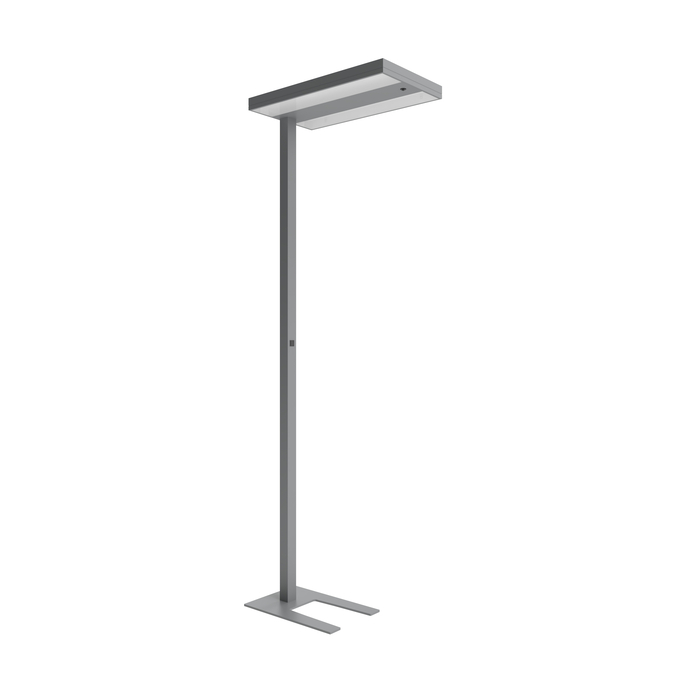

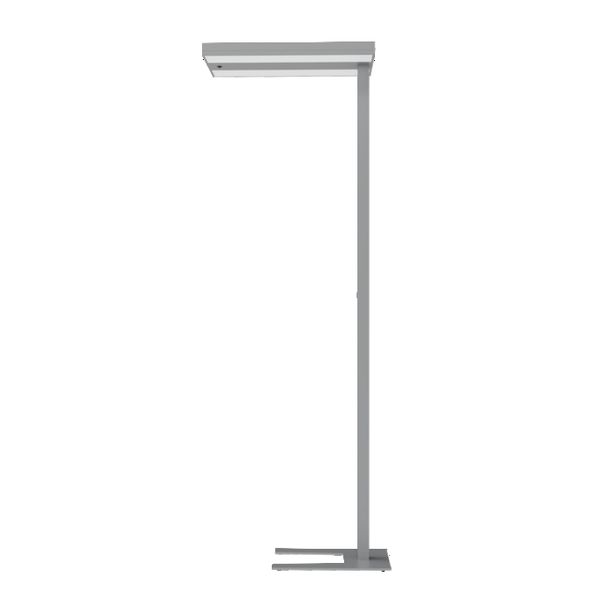

FS CMFT HEAD SN P 114W 840 GY
4099854606564
Product benefits
- Uniformly lighting thanks to a high indirect lighting share
- Low direct lighting part for an optimized glare reduction
- Daylight and motion-dependent control thanks to an integrated sensor
Areas of application
- Single component (luminaire head, luminaire pole, luminaire base and regional electrical connection) for mounting the FLOOR STANDING COMFORT
- For use at single or double desks
- Individual offices
- Open-space office
- Home offices
Product features

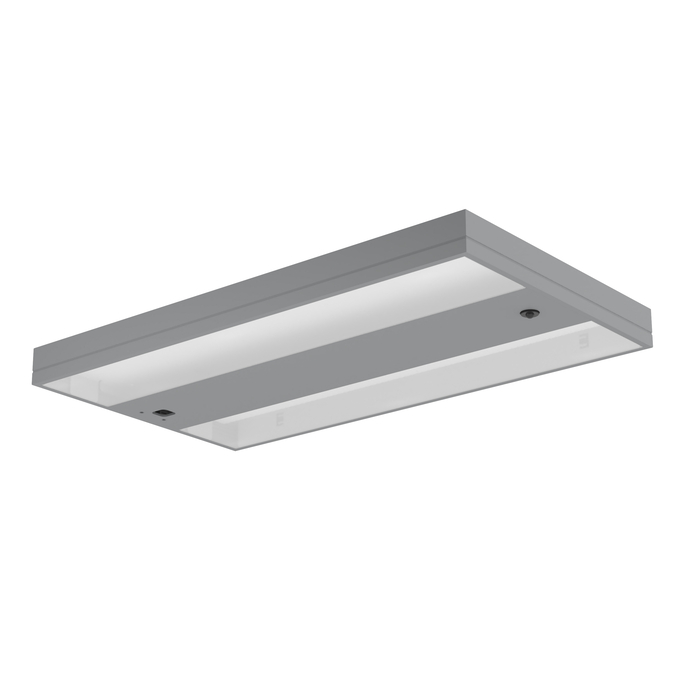

- Powder coated luminaire head made of aluminum
- High lumen output with overall up to 20,000 lm (18,400 lm indirect and 1,600 lm direct)
- High luminous efficacy: up to 175 lm/W

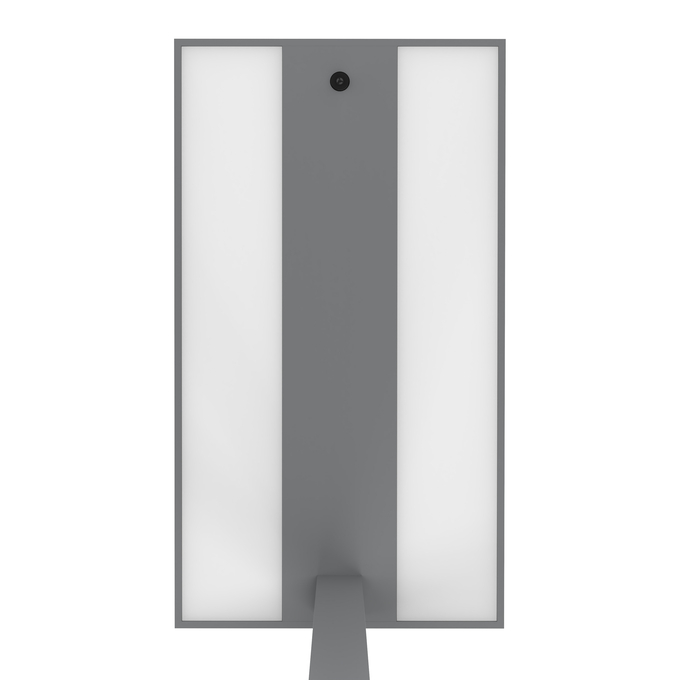

- Diffuser prismatic (direct) and transparent (indirect) for an overall glare reduction of UGR <16
- Lifetime (L80/B10): up to 100,000 h (at 25 °C)
- Color temperature 4,000 K with SDCM <3 and CRI 80
- Available in white (like RAL9003), grey (like RAL9006) and black (like RAL9005)
Equipment / Accessories
- Other required components to be ordered separately
- Accessories for mounting the luminaire included
Safety advice
- All electrical connections must be made by a qualified person.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- For Guarantee see
Adjustable
No
Ambient temperature range
+10…+35 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 ° x 90 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Detection range of motion sensor
0…2.5 m
Detection threshold of daylight sensor
10…1200 lx
Dimmable
Yes
ECG - Output ripple current
< 5 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854606564
Height
48.00 mm
Housing color
Gray
Inrush current
5 A
Inrush current time Th50
900 µs
Length
660.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
175 lm/W
Luminous flux
20000 lm 1)
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
22
Max. number of luminaires per miniature circuit breaker C10
23
Max. number of luminaires per miniature circuit breaker C16
37
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Floor
Mounting type
Standing
Nominal current
630.000 mA
Nominal voltage
220…240 V
Nominal wattage
114.00 W
Number of illuminants
-
Number of switching cycles
200000
Operating mode
Integrated LED driver
Output current
630 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.95
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product weight
5600.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9006
Replaceable light source
No
Sensor controlled switching time
900 s
Sensor detection angle
80 °
Sensor IK rating
IK03
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
+5…+40 °C
Total harmonic distortion
< 20 %
Type of dimming
DALI
Type of protection
IP20
Type of sensor
Moti
UGR
< 16
Width
370.00 mm
With light source
Yes
