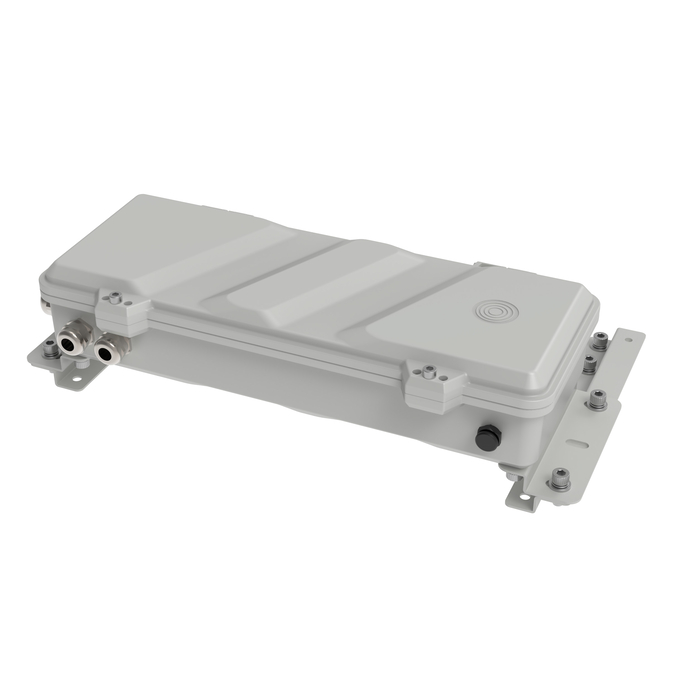

FL MAX PSU DA P 900W WAL
4099854681677
Product benefits
- For extreme temperatures: –40 °C to +50 °C (outdoors), up to +40 °C (indoors)
- Driver box installable up to 150 m from head, central maintenance, reduced mast weight
- Pre-fitted connectors enable quick, waterproof wiring on site (IP66)
- Standardized drivers are always easy to replace for simple maintenance
- Auxiliary DALI power for sensor and control integration, e.g. Smart City
- Optimized logistics: luminaire and driver box can be ordered separately
- Future-proof: high efficiency, long life and multiple interfaces
- Robust and weatherproof: IP66 / IK08, C5-M corrosion protection for harsh environments
Areas of application
- Suitable for indoor and outdoor installations
- Ports/logistics: lights deep & wide areas, ideal with C5 corrosion protection
Product features
- Wide voltage range: 200-480V AC
- Efficiency: ≤97 %, saves energy and reduces running costs
- Integration: for lighting control, DMX, 0-10V dimming
- Climate membrane protects from water and lets air pass through
- Surge protection: up to 20 kV, improved safety in stadiums
- Emergency lighting: EN 60598-2-22 compliant
- Protection: lockable driver box prevents tampering
Equipment / Accessories
- Cable glands included and preinstalled in the power supply
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Added function
VIVARES
Ambient temperature range
-40…+50 °C
Ball shot safe
Yes
Body material
Aluminum
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Corrosion resistance class acc. to EN 12944
C5
Dimmable
Yes 1)
Dimming range
0…100 %
ECG lifetime
100000 h
EPD
LEDV-00061-V02.01-EN
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854681677
Height
105.00 mm
IoT ready
Support of DALI data type PART 251, 252, 253 2)
Length
487.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
1
Max. number of luminaires per miniature circuit breaker C16
1
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
200…480 V
Nominal wattage
900.00 W
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.94
Product color
Gray/White aluminum
Product recyclability
Mostly recyclable product 1)
Product weight
6100.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9006
Replaceable light source
No
Surge capability (L-N)
20 kV
Temperature range at storage
-40…85 °C
Type of connection
Cable, 5-pole
Type of dimming
DALI D4i
Type of protection
IP66
Width
199.00 mm
