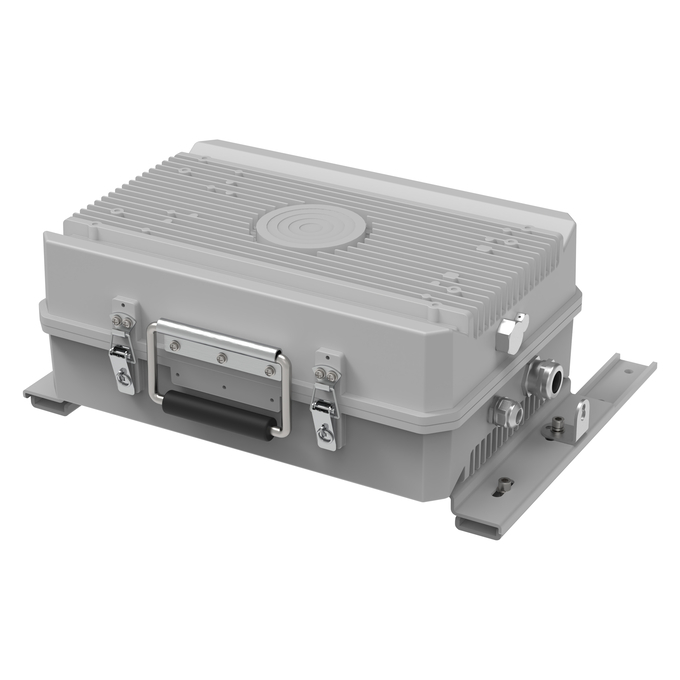

FL MAX POWER SUPPLY P 900W WAL
4058075580732
Product benefits
- Highly robust and durable
- Quick and easy wiring, due to tool-free housing opening

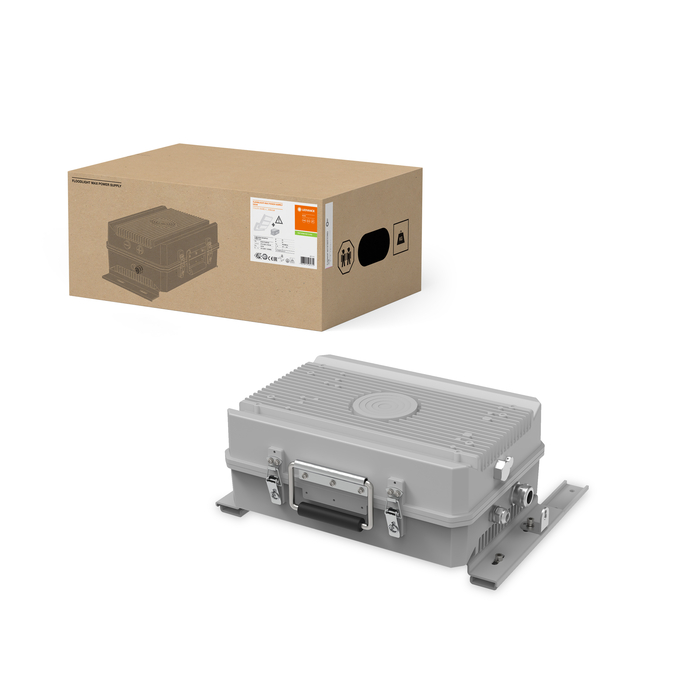

- Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
- 5 years guarantee
Areas of application
- Outdoor use (IP66)
- Lighting of large areas
- Sports facilities
- Construction areas
Product features
- Power supply for Floodlight Max luminaire heads
- Joint or separate installation with Floodlight Max luminaire head with up to 40 m distance
- M20 and M25 PG glands for mains cable feed-in
- LED-module wiring by means of pre-installed fast quick release connector
- High surge protection: up to 10 kV (L/N-PE and L-N)
Equipment / Accessories
- Extension cables and mounting kit for pole installation of power supply in preparation
Safety advice
- Floodlight Max Luminaire Heads must be operated with official Floodlight Max Power Supplies only, as described in the user manual.
- If only one fixation point is used for luminaires installed higher >3m, a secondary fixation of luminaire and bracket (e.g. a restraining wire) is needed for safety reasons.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.
References / Links
- For Guarantee see
Ambient temperature range
-30…+50 °C
Ball shot safe
Yes
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Aluminium
Dimmable
No
EPD
LEDV-00007-V01.01-EN
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075580732
Height
166.00 mm
Inrush current
135 A
Inrush current time Th50
1200 µs
Length
270.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous intensity
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker C16
1
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Nominal current
3900 mA
Nominal voltage
200…277 V
Nominal wattage
900.00 W
Number of switching cycles
100000
Output current
4740 mA
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
0.95
Product recyclability
Mostly recyclable product 1)
Product weight
10500.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Replaceable light source
No
Stroboscope effect metric (SVM)
-
Temperature range at storage
-40…+70 °C
Total harmonic distortion
< 20 %
Type of protection
IP67
Width
447.00 mm
With light source
No
