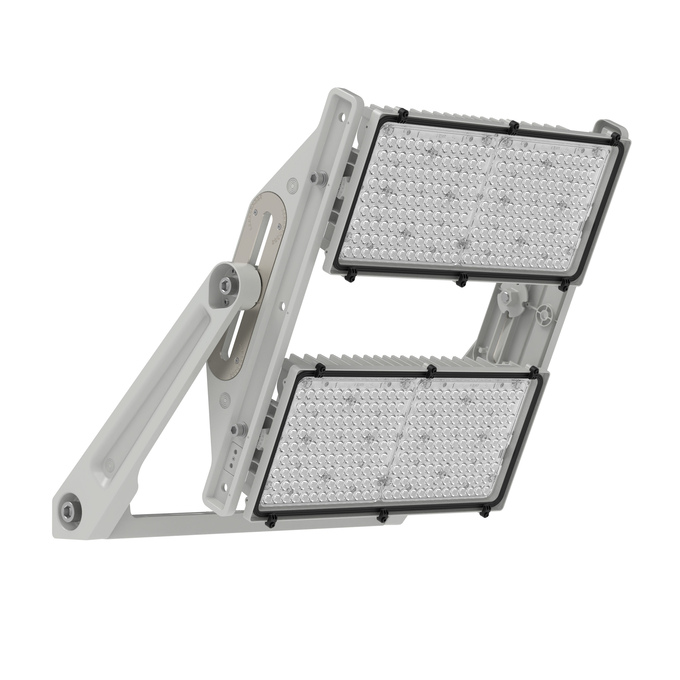

FL MAX P 900/1200W 740 R25 WAL

Product benefits

• For extreme temperatures: –40 °C to +50 °C (outdoors), up to +40 °C (indoors)
• Robust and weatherproof: IP66 / IK08, C5-M corrosion protection for harsh environments
• Ball-impact safe: tested to DIN 18032-32, ideal for sports halls

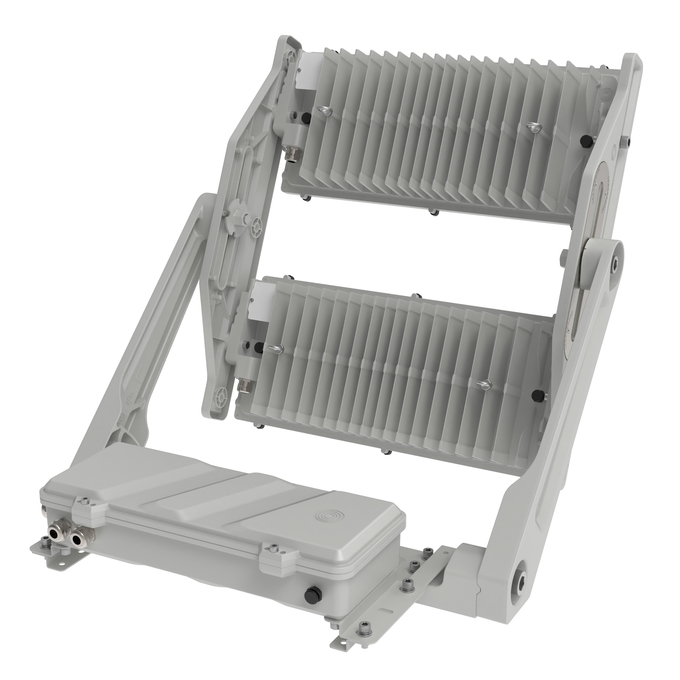

• Optimized logistics: luminaire and driver box can be ordered separately
• Effective thermal management: up to 115,000 operating hours lifespan

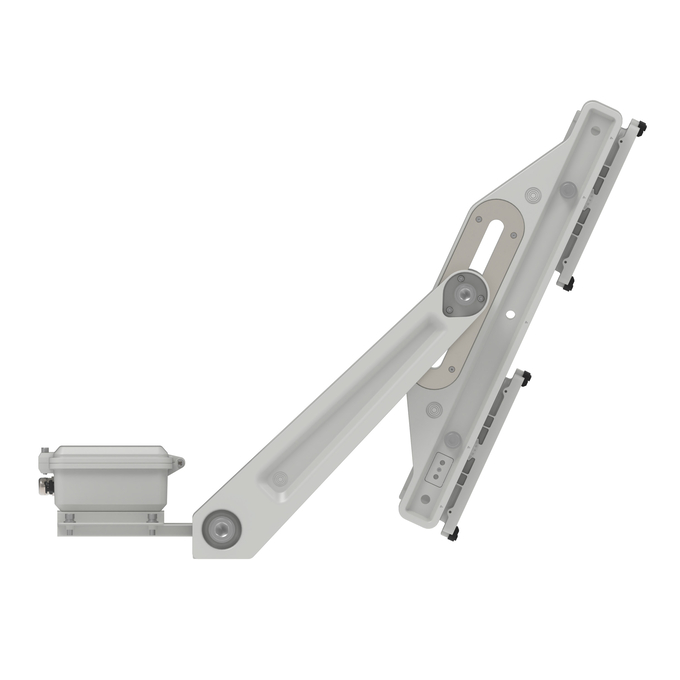

• Flexible mounting: luminaires can be mounted overhead, on a pole, or on a wall
• Safety rope: included as standard for fall protection
• Insect-friendly: 3000 K light protects wildlife, supports subsidies
• Investment security: efficient, durable, future-proof (Zhaga / NEMA / Casambi)
• Manual aiming: sight at the luminaire head allows precise orientation to be fixed

Areas of application

• Large stadiums & arenas: homogeneous indoor/outdoor lighting, ideal for TV applications
• City centers/parks: suitable for large squares, monuments, events, or open-air cinemas
• Ports/logistics: lights deep & wide areas, ideal with C5 corrosion protection
• Industrial sites: wide-area safety lighting for factories and power plants
• Motorsport venues: various lenses, illuminating long track sections for TV use
• Equestrian centres: various lenses for riding tracks and similar venues

Product features

• Medium angle: balanced beam (R25°), good range, even illumination of large areas
• High luminous output up to 270.000 lm, with top efficiency up to 160 lm/W
• Selectable colors (3000 K, 4000 K, 5700 K) and CRI> 80 or CRI> 70
• Flexible driver unit; install up to 150 m away to lighten the mast.
• Modular LED modules, individually swiveling, adjustable beam direction
• Low-flicker light (<1 % flicker), ideal for camera use without flickering
• Climate membrane protects from water and lets air pass through
• Pre-assembled cables for quick wiring to driver or FL MAX CONNECTOR BOX
• Luminaire can be centered and aligned precisely via scale
• Optimized housing: lighter than GEN 1 for easier installation

Equipment / Accessories

• Safety rope for luminaire included in all versions
• Power supply unit is not included; luminaire head and and driver box sold separately
• Light modules pre-wired for direct connection in the driver or FL MAX CONNECTOR BOX

Safety advice

• All electrical connections must be made by a qualified person.
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
• Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.

References / Links

• For Guarantee see
