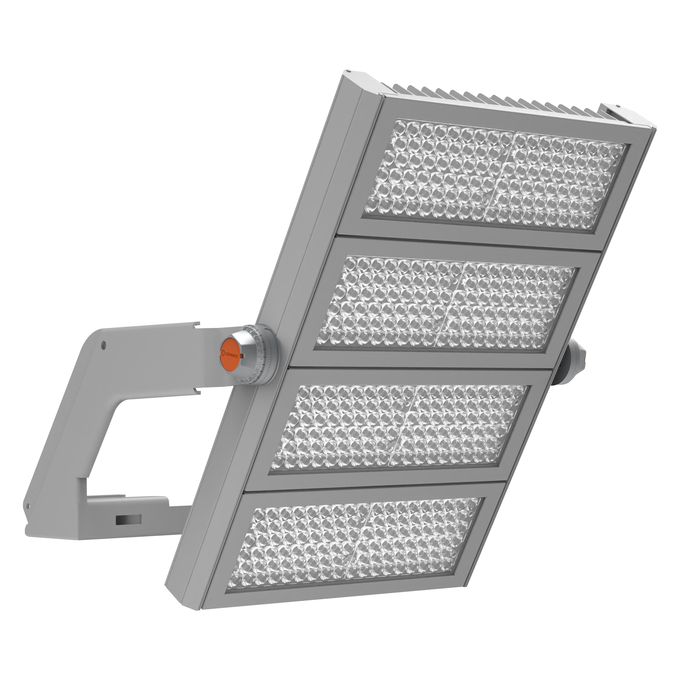

FL MAX LUM P 1200W 757ASYM50x110WAL
4058075580695
Product benefits
- Very bright, robust and durable
- Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
- Easy dimming to 50% by wiring
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt

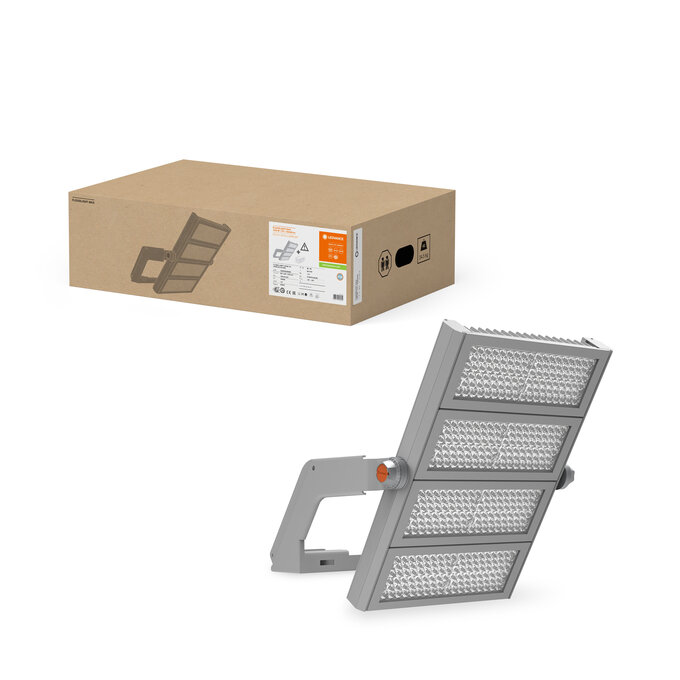

- Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
- Low flicker light
- 5 years guarantee
Areas of application
- Outdoor use (IP66)
- Lighting of large areas
- Sports facilities
- Construction areas
- Direct replacement for luminaires using HID lamps
Product features
- Modular, high-power floodlight with up to 135 lm/W

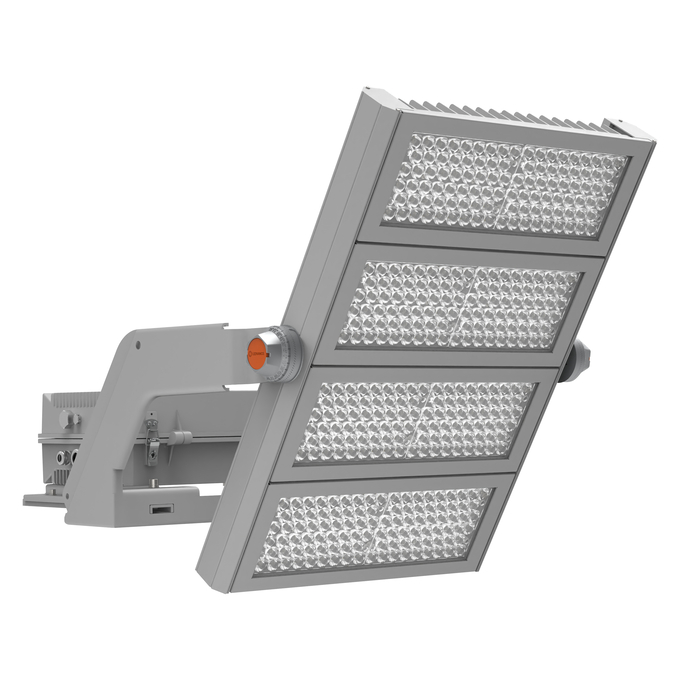

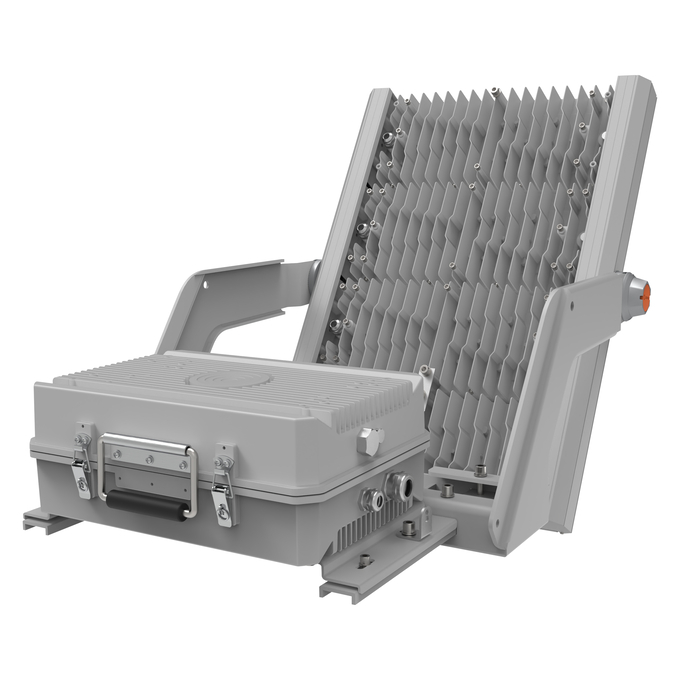

- Joint or separate installation with Floodlight Max power supply with up to 40 m distance
- Available with 10°, 30° and 60° symmetric beam angles, as well as 50°x110° asymmetric light distribution

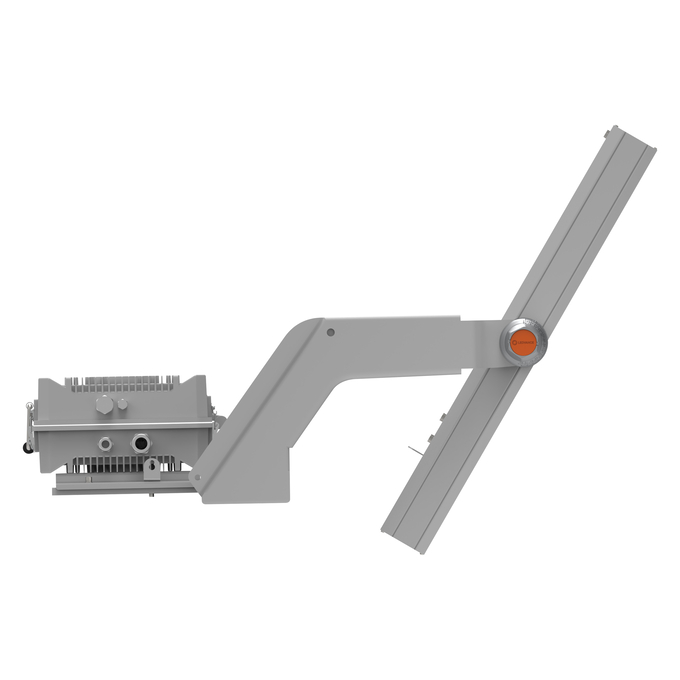

- Mounting bracket for up to 180° tilting
- Highly-transparent, tempered glass diffuser
Equipment / Accessories
- Power supply not included in luminaire head delivery unit
- Operation only with official 1200 W power supply, GTIN(EAN) 4058075580749
- Aiming device in preparation
- Visor for front light cut-off in preparation
Safety advice
- Floodlight Max Luminaire Heads must be operated with official Floodlight Max Power Supplies only, as described in the user manual.
- If only one fixation point is used for luminaires installed higher >3m, a secondary fixation of luminaire and bracket (e.g. a restraining wire) is needed for safety reasons.
- The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 4 m is not expected.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-30…+50 °C
Application environment
Outdoor
Ball shot safe
Yes
Beam angle
50 ° x 110 °
Body material
Aluminum
Cable length
1300 mm
Color rendering index Ra
≥70
Color temperature
5700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Glass
Dimmable
No
EPD
LEDV-00007-V01.01-EN
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075580695
Height
282.00 mm
Housing color
Gray
Length
841.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Cool Daylight
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
137 lm/W
Luminous flux
164000 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
6320 mA
Nominal voltage
180 V
Nominal wattage
1200.00 W
Number of switching cycles
100000
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG2
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product weight
31900.00 g
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9006
Replaceable light source
No
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
-
Temperature range at storage
-40…+70 °C
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP66
Width
591.00 mm
With light source
Yes
