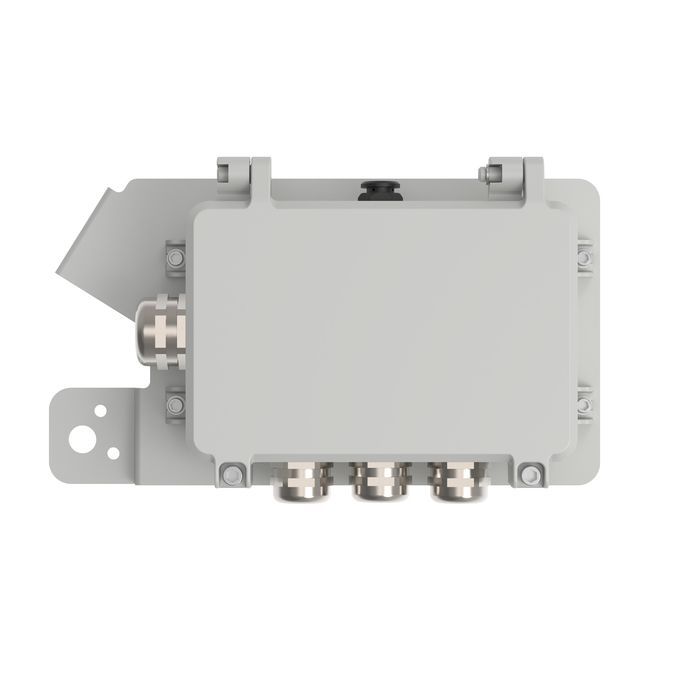

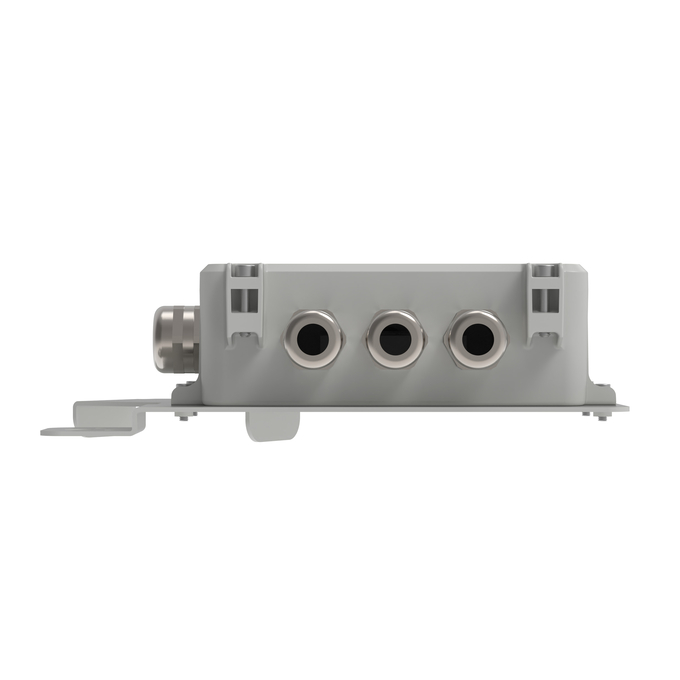

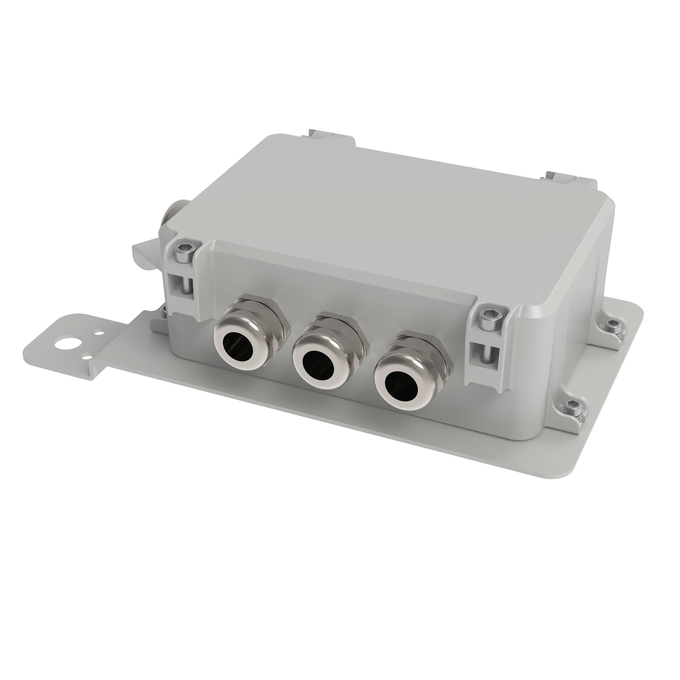

FL MAX CONNECTOR BOX
4099854696176
Product benefits
- For extreme temperatures: –40 °C to +50 °C (outdoors), up to +40 °C (indoors)
- Quick wiring: pre-fitted cable glands (IP66) enable safe, easy on-site connection
- Robust and weatherproof: IP66 / IK08, C5-M corrosion protection for harsh environments
Areas of application
- Suitable for indoor and outdoor installations
- Ports/logistics: lights deep & wide areas, ideal with C5 corrosion protection
Product features
- Connector box can be mounted directly to luminaire bracket
- Flexible driver unit; install up to 150 m away to lighten the mast.
- Climate membrane protects from water and lets air pass through
Equipment / Accessories
- Cable glands included and preinstalled in the power supply
Ambient temperature range
-40…+50 °C
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Corrosion resistance class acc. to EN 12944
C5
GTIN
4099854696176
Height
77.0 mm
Housing color
Gray
Length
247.0 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
1100.00 g
Protection class
I
RAL Color (most similar)
RAL 9006
Replaceable light source
No
Type of protection
IP66
Width
151.0 mm
