FL H M POWER SUPPLY V 500W
4099854196522
Product benefits
- Highly robust and durable
- Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
- 5 years guarantee
Areas of application
- Outdoor use (IP66)
- Suitable for high mast applications
- Lighting of large areas
- Construction areas
- Industry
Product features

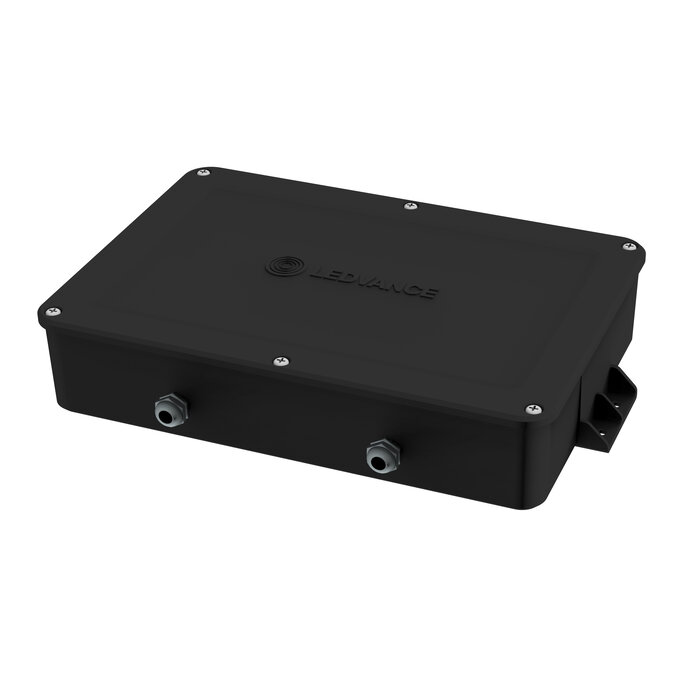

- Power supply for floodlight high mast luminaire heads
- Joint or separate installation with floodlight high mast power supply
- M16 cable gland for mains cable
References / Links
- For Guarantee see
Ambient temperature range
-40…+50 °C
Body material
Aluminum
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854196522
Height
61.00 mm
Length
317.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Nominal voltage
220…240 V
Nominal wattage
500.00 W
Number of switching cycles
100000
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.90
Product recyclability
Mostly recyclable product 1)
Product weight
2350.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Replaceable light source
No
Temperature range at storage
-40…+70 °C
Total harmonic distortion
< 15 %
Type of protection
IP66/IP66
Width
201.00 mm
With light source
No
