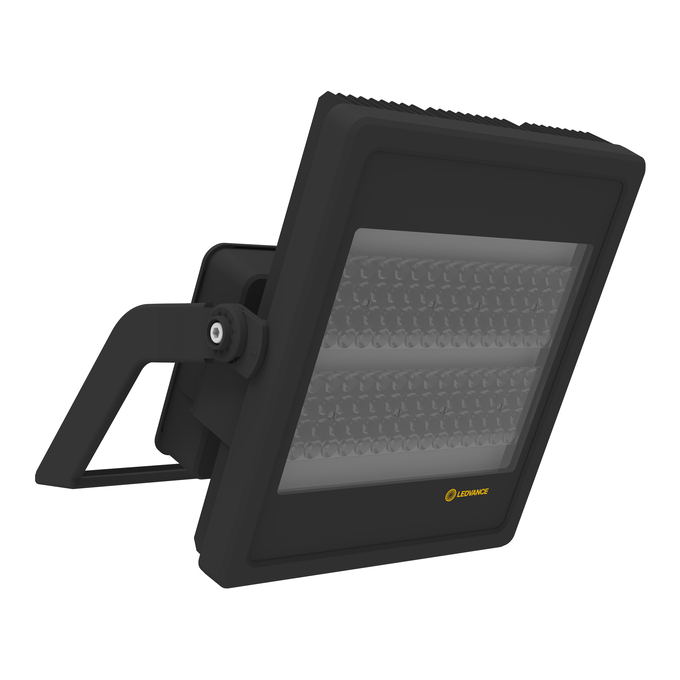

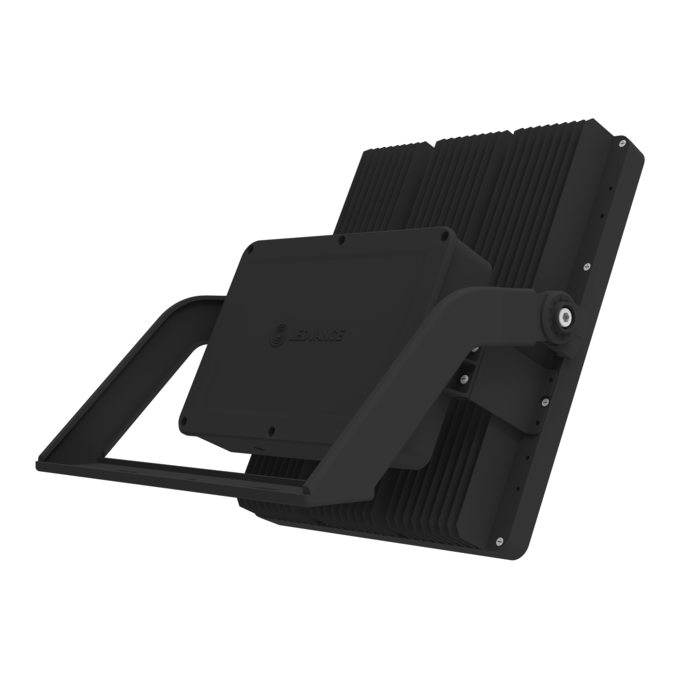

FL H M LUM V 300W 757 SYM R12
4099854195679
Product benefits
- Low flicker light thanks to special electronic control gear
- Energy savings thanks to system efficacy of up to 140lm/W
- Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
- 5 years guarantee
- Symmetric and asymmetric light distribution for various application areas
Areas of application
- Replacement for luminaires with mercury vapor or metal halide lamps
- Outdoor use (IP66)
- Suitable for high mast applications
- Lighting of large areas
- Construction areas
- Industry
Product features
- Cover made of high quality glass
- High-power floodlight with up to 140 lm/W
- Lifetime (L80/B50): up to 100,000 h (at 25 °C)
- Joint or separate installation with floodlight high mast power supply
- Highly-transparent, tempered glass diffuser
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-40…+50 °C
Application environment
Outdoor
Beam angle
12 °
Body material
Aluminum
Color rendering index Ra
70
Color temperature
5700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Tempered glass
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854195679
Height
243.00 mm
Housing color
Black
Inrush current time Th50
988 µs
Length
479.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W
Luminous flux
36000 lm
Luminous intensity
350000 cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
4
Max. number of luminaires per miniature circuit breaker C10
4
Max. number of luminaires per miniature circuit breaker C16
7
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
810.000 mA
Nominal voltage
345 V
Nominal wattage
300.00 W
Number of switching cycles
100000
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
8650.00 g
Protection class
I
Protection class IK (shock resistance)
IK10
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-40…+80 °C
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP66
Width
389.00 mm
With light source
Yes
