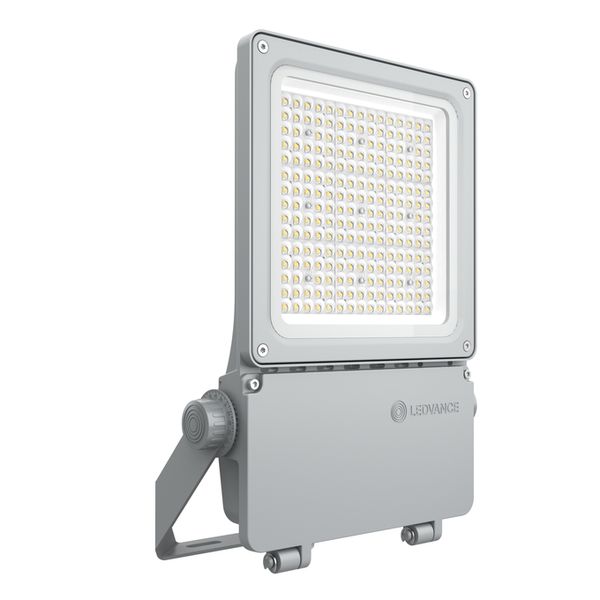

FL FLEX P 80W ML 822 A45X140 WAL
4099854374074
Product benefits
- Corrosion resistance C5: tested in environments with high salinity
- Serviceable luminaire: LED driver can be replaced
- Flexible application due to a range of different lumen packages and beam angles
- 3 cable entries for flexible use and easy connection between luminaires
- Integrated breather for preventing condensation inside the luminaire
- Energy savings of up to 91 % compared to halogen lamp floodlights
- Energy savings of up to 51 % compared to luminaires that use conventional discharge lamps
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- Intelligent design of the water drain to prevent standing water
- Simple angle adjustment by locking every 2.5°
- Clear angular degree indication
- Key hole to ensure ease of installation
Areas of application
- Coastal areas, like ports
- General outdoor area lighting
- Parking
- Suitable for indoor and outdoor sports facilities
- Architectural lighting
- Industry
- Direct replacement for luminaires using HID lamps
Product features
- Corrosion resistance C5 based on 1,500 hours salt mist spray test
- High luminous efficacy: up to 161 lm/W
- Multi Lumen function: 4 lumen steps selectable
- Daisy chaining possible
- High surge protection: up to 10 kV (L/N-PE), 6 kV (L-N)
- High lifetime (L70/B50): up to 120,000 h (at 25 °C)
- Lumen packages up to 70000 lm
- Additional 2200 K color temperature version available
Equipment / Accessories
- Delivery without cables
- Second cable gland included
- 2 rubber inserts for 6,5 - 7,5 mm cables included
References / Links
- For Guarantee see
Added function
MULTI SELECT
Adjustable
Yes
Ambient temperature range
-30…+50 °C
Application environment
Outdoor
Ball shot safe
Yes
Beam angle
45 ° x 140 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
2200 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Corrosion resistance class acc. to EN 12944
C5
Cover material
Glass
Dimmable
No
ECG - Output ripple current
< 10 %
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854374074
Height
67.00 mm
Housing color
White aluminum
Inrush current
46 A
Inrush current time Th50
104 µs
Length
479.00 mm
Lifespan L70/B50 at 25 °C
120000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Very Warm White
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Alkanes / Chloroalkanes C10-13 (85535-84-8)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
104 lm/W / 105 lm/W / 107 lm/W
Luminous flux
8300 lm / 7100 lm / 5900 lm / 4700 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
28
Max. number of luminaires per miniature circuit breaker C10
20
Max. number of luminaires per miniature circuit breaker C16
32
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
358.000 mA
Nominal voltage
220…240 V
Nominal wattage
80 W / 68 W / 56 W / 44 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
2100 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White aluminum
Product recyclability
Mostly recyclable product 1)
Product weight
4700.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9006
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
6 kV
Surge capability (L/N-Ground)
10 kV
Temperature range at storage
-30…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal
Type of protection
IP66
Width
304.00 mm
With light source
Yes
