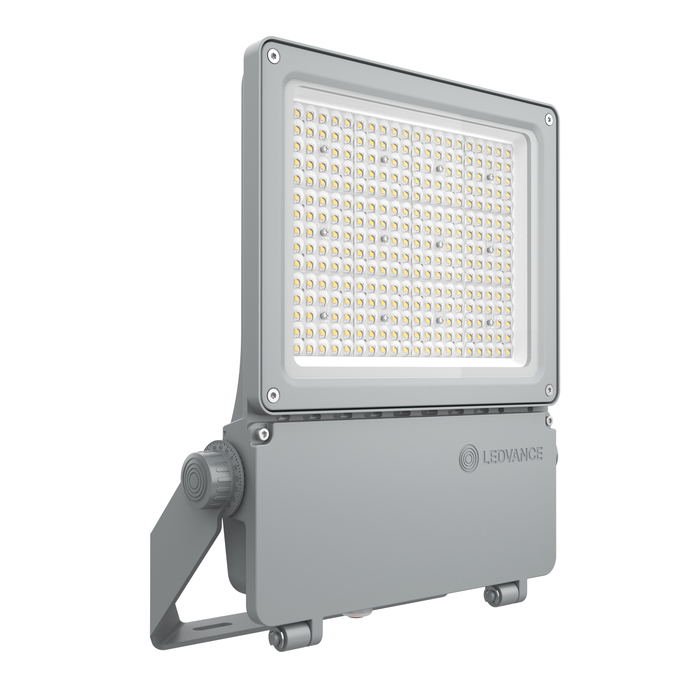

FL FLEX P 130W ML 830 R60 WAL
4099854373350
Product benefits
- Corrosion resistance C5: tested in environments with high salinity
- Serviceable luminaire: LED driver can be replaced
- Flexible application due to a range of different lumen packages and beam angles
- 3 cable entries for flexible use and easy connection between luminaires
- Integrated breather for preventing condensation inside the luminaire
- Energy savings of up to 91 % compared to halogen lamp floodlights
- Energy savings of up to 51 % compared to luminaires that use conventional discharge lamps
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- Intelligent design of the water drain to prevent standing water
- Simple angle adjustment by locking every 2.5°
- Clear angular degree indication
- Key hole to ensure ease of installation
Areas of application
- Coastal areas, like ports
- General outdoor area lighting
- Parking
- Suitable for indoor and outdoor sports facilities
- Architectural lighting
- Industry
- Direct replacement for luminaires using HID lamps
Product features
- Corrosion resistance C5 based on 1,500 hours salt mist spray test
- High luminous efficacy: up to 166 lm/W
- Multi Lumen function: 4 lumen steps selectable
- Daisy chaining possible
- High surge protection: up to 10 kV (L/N-PE), 6 kV (L-N)
- High lifetime (L70/B50): up to 120,000 h (at 25 °C)
- Lumen packages up to 70000 lm
Equipment / Accessories
- Delivery without cables
- Second cable gland included
- 2 rubber inserts for 6,5 - 7,5 mm cables included
References / Links
- For Guarantee see
Added function
MULTI SELECT
Adjustable
Yes
Ambient temperature range
-30…+50 °C
Application environment
Outdoor
Ball shot safe
Yes
Beam angle
60 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Corrosion resistance class acc. to EN 12944
C5
Cover material
Glass
Dimmable
No
ECG - Output ripple current
< 10 %
EPD
LEDV-00046-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854373350
Height
68.00 mm
Housing color
White aluminum
Inrush current
65.6 A
Inrush current time Th50
190 µs
Length
492.00 mm
Lifespan L70/B50 at 25 °C
120000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Warm White
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Alkanes / Chloroalkanes C10-13 (85535-84-8)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
153 lm/W / 155 lm/W / 158 lm/W
Luminous flux
19900 lm / 16900 lm / 14100 lm / 11300 lm
Luminous intensity
20895 cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
10
Max. number of luminaires per miniature circuit breaker C10
10
Max. number of luminaires per miniature circuit breaker C16
17
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
574.000 mA
Nominal voltage
220…240 V
Nominal wattage
130 W / 110.5 W / 91.0 W / 71.5 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
3750 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White aluminum
Product recyclability
Mostly recyclable product 1)
Product weight
5900.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9006
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
6 kV
Surge capability (L/N-Ground)
10 kV
Temperature range at storage
-30…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal
Type of protection
IP66
Width
361.00 mm
With light source
Yes
