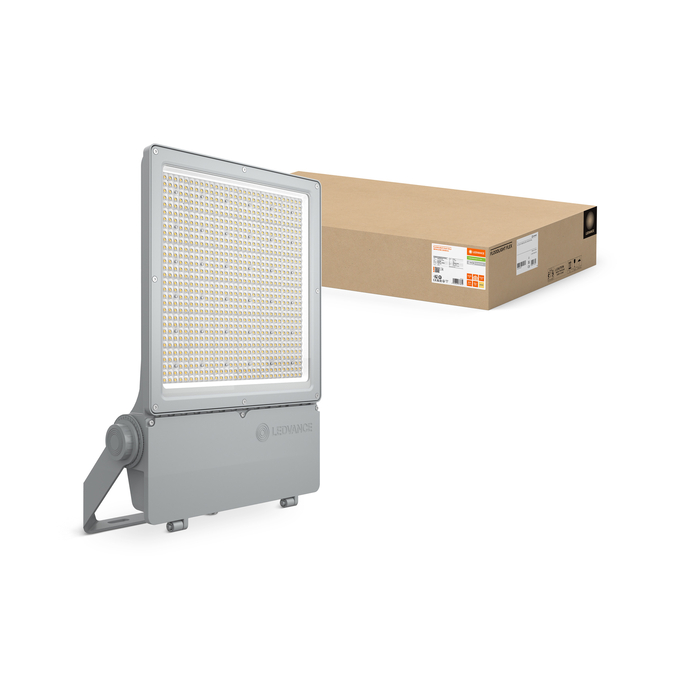

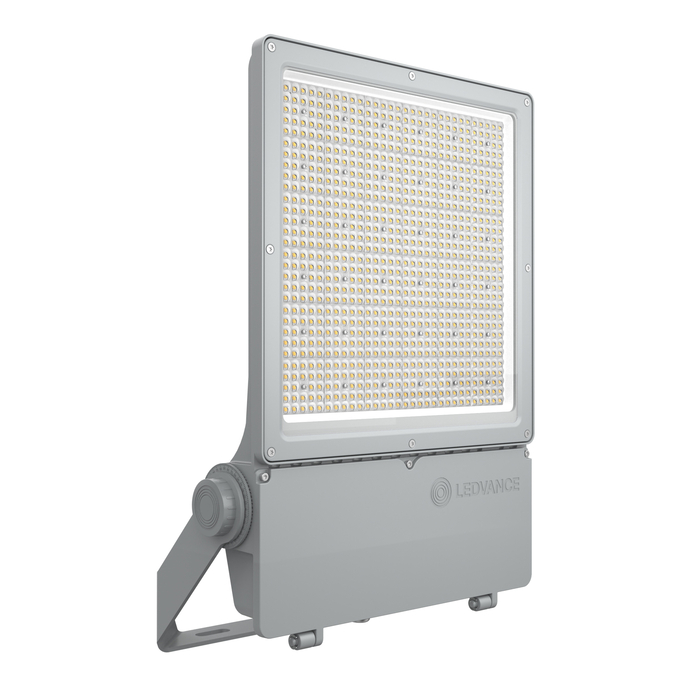

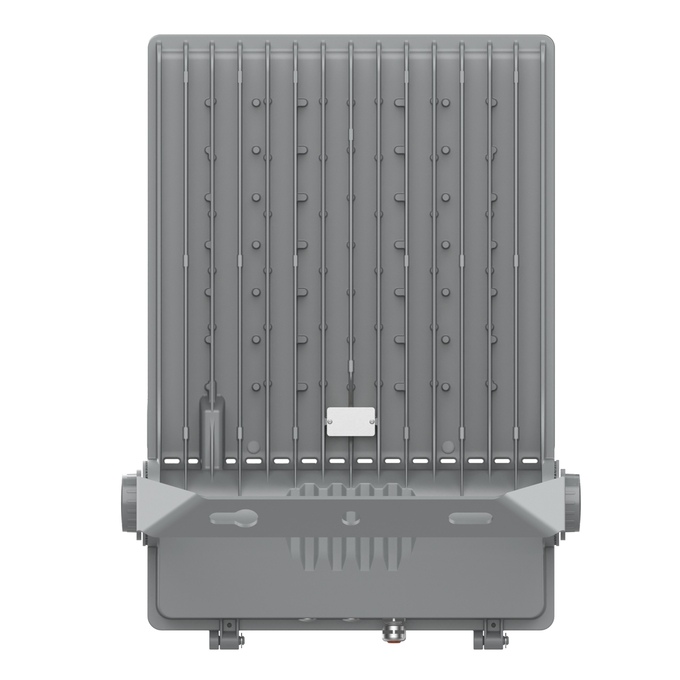

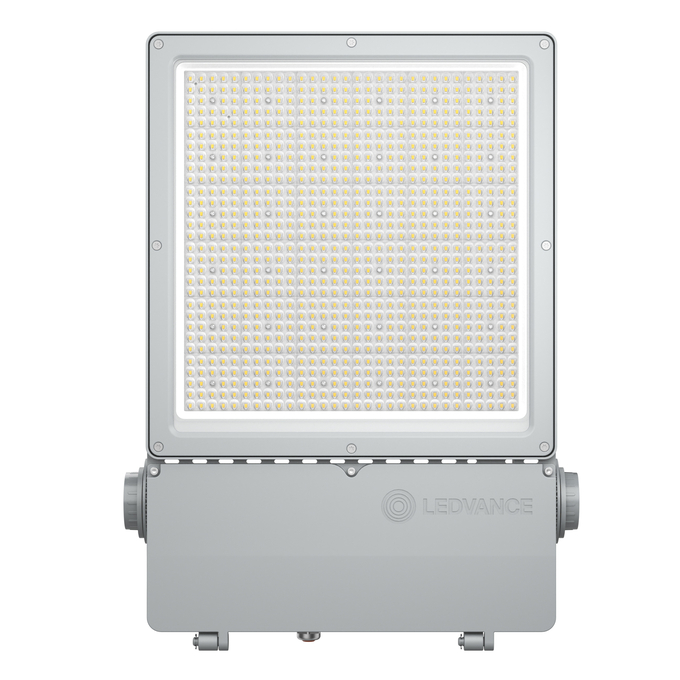

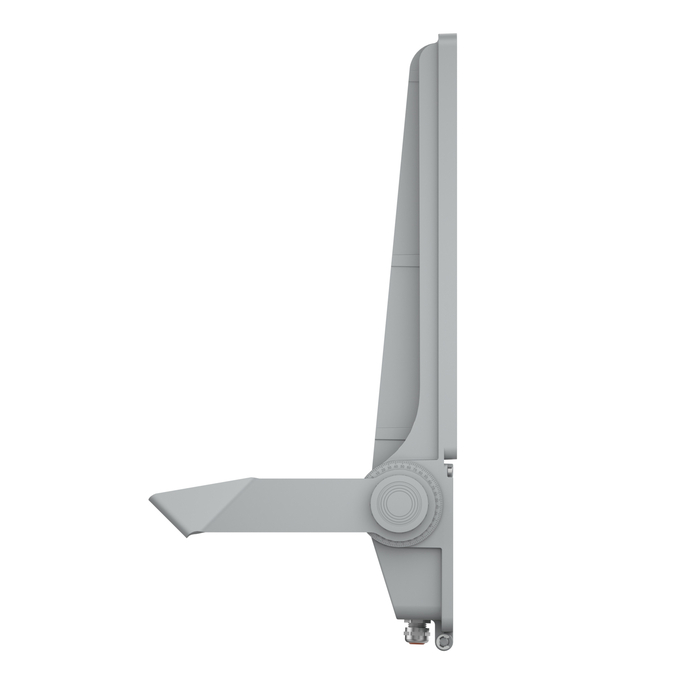

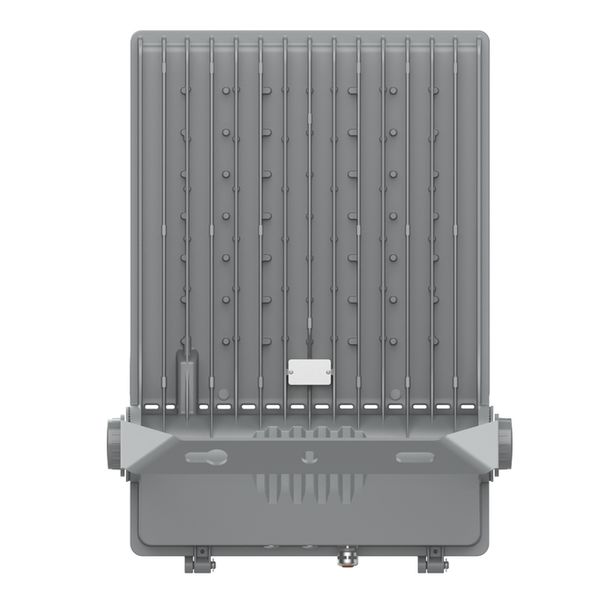

FL FLEX DA P 360W 830 A45X140 WAL
4099854373879
Product benefits
- Corrosion resistance C5: tested in environments with high salinity
- Serviceable luminaire: LED driver can be replaced
- Flexible application due to a range of different lumen packages and beam angles
- 3 cable entries for flexible use and easy connection between luminaires
- Integrated breather for preventing condensation inside the luminaire
- Energy savings of up to 91 % compared to halogen lamp floodlights
- Energy savings of up to 51 % compared to luminaires that use conventional discharge lamps
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- Intelligent design of the water drain to prevent standing water
- Simple angle adjustment by locking every 2.5°
- Clear angular degree indication
- Key hole to ensure ease of installation
Areas of application
- Coastal areas, like ports
- General outdoor area lighting
- Parking
- Suitable for indoor and outdoor sports facilities
- Architectural lighting
- Industry
- Direct replacement for luminaires using HID lamps
Product features
- Corrosion resistance C5 based on 1,500 hours salt mist spray test
- High luminous efficacy: up to 156 lm/W
- DALI D4i drivers for smart city applications
- Daisy chaining possible
- High surge protection: up to 10 kV (L/N-PE), 6 kV (L-N)
- High lifetime (L70/B50): up to 120,000 h (at 25 °C)
- Lumen packages up to 70000 lm
- Additional 2200 K color temperature version available
Equipment / Accessories
- Delivery without cables
- Second cable gland included
- 2 rubber inserts for 6,5 - 7,5 mm cables included
References / Links
- For Guarantee see
Added function
VIVARES
Adjustable
Yes
Ambient temperature range
-30…+50 °C
Application environment
Outdoor
Ball shot safe
Yes
Beam angle
45 ° x 140 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Corrosion resistance class acc. to EN 12944
C5
Cover material
Glass
Dimmable
Yes
ECG - Output ripple current
< 10 %
EPD
LEDV-00046-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854373879
Height
105.00 mm
Housing color
White aluminum
Inrush current
14.5 A
Inrush current time Th50
2000 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
751.00 mm
Lifespan L70/B50 at 25 °C
120000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Warm White
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Alkanes / Chloroalkanes C10-13 (85535-84-8)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
144 lm/W
Luminous flux
52000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
4
Max. number of luminaires per miniature circuit breaker C10
4
Max. number of luminaires per miniature circuit breaker C16
6
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
1610.000 mA
Nominal voltage
220…240 V
Nominal wattage
360.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
10000 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.96
Product color
White aluminum
Product recyclability
Mostly recyclable product 1)
Product weight
14100.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9006
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
6 kV
Surge capability (L/N-Ground)
10 kV
Temperature range at storage
-30…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal
Type of dimming
DALI D4i
Type of protection
IP66
Width
480.00 mm
With light source
Yes
