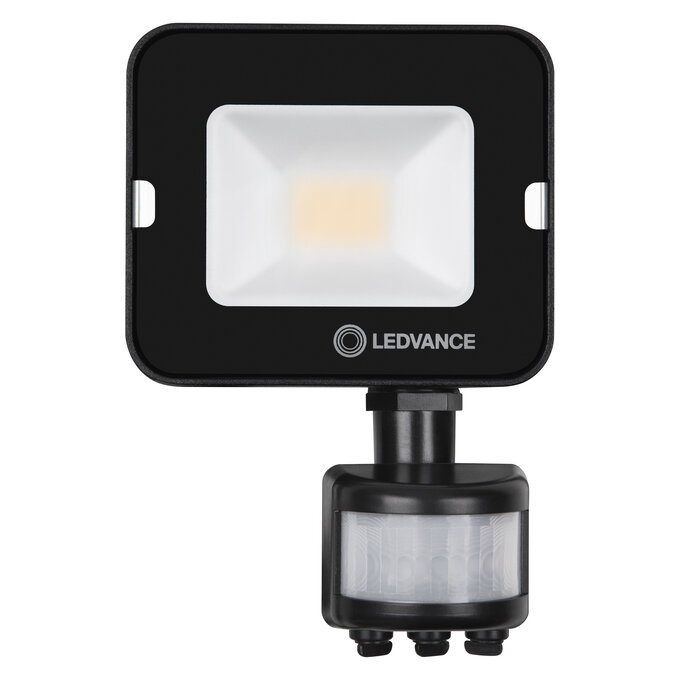

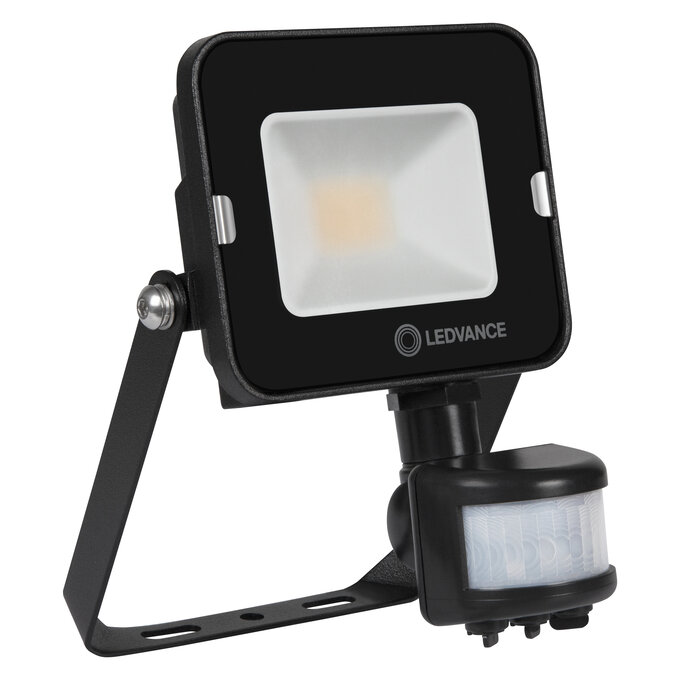

FL COMP SEN V 10W 840 SYM 100 BK
4058075575240
Product benefits
- Robust, yet light and compact design
- Demand optimized illumination due to flexible and programmable sensor
- Easy adjustment of sensor range, daylight detection and hold time
- Always-on override, activated via special mains switching pattern
- Safe and very uniform illumination, due to frosted and tempered glass diffuser
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- Energy savings of up to 90 % compared to halogen lamp floodlights
- 3 years guarantee
Areas of application
- Replacement for floodlights with halogen lamps
- Outdoor use (IP65)
- Public areas
- Building facades
- Gardens, balconies and other outdoor areas
- Construction areas
Product features
- Flexible motion and daylight sensor
- Sensor with 350° pan and 180° tilt
- Reflector-based, symmetric light distribution with 100° x 100° beam angle

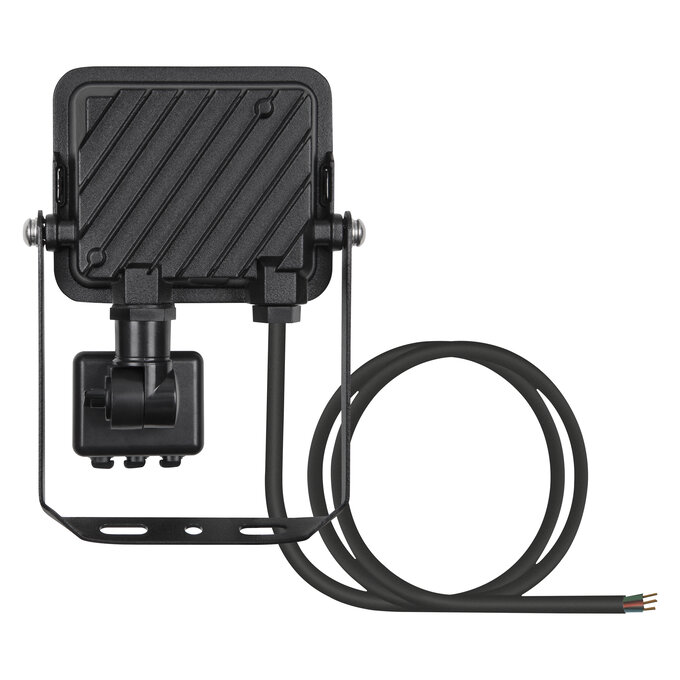

- Mounting bracket with 30° angle and wide rotation area

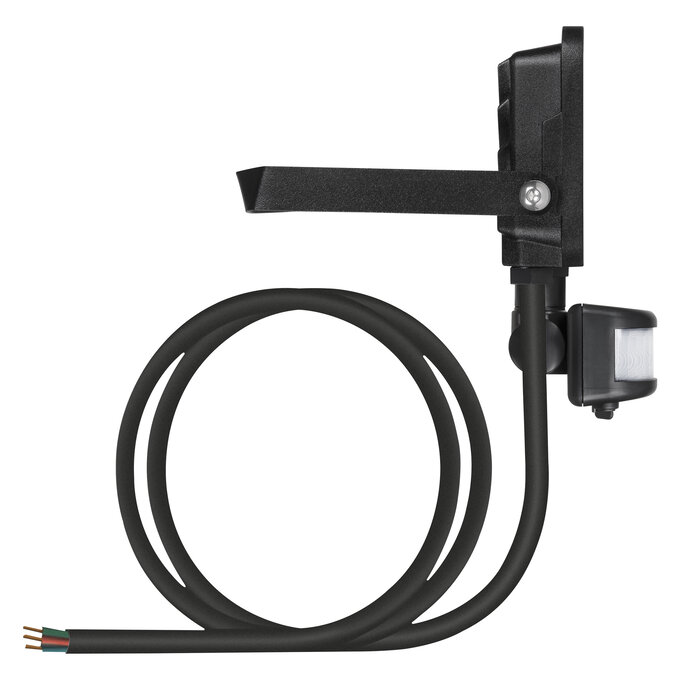

- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
Safety advice
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Terminal block not included. Installation must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-30…+45 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
100 ° x 100 °
Body material
Aluminum
Cable length
1000 mm
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Tempered glass
Detection range of motion sensor
2…12 m
Detection threshold of daylight sensor
10…2000 lx
Dimmable
No
EPD
LEDV-00054-V01.01-EN
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075575240
Height
53.00 mm
Housing color
Black
Inrush current
6.3 A
Inrush current time Th50
2.3 µs
Length
153.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
35000 h 1)
Lifespan L90/B10 at 25 °C
25000 h
Light color (designation)
Cool White
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W
Luminous flux
1000 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
159
Max. number of luminaires per miniature circuit breaker C10
116
Max. number of luminaires per miniature circuit breaker C16
185
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
55 mA
Nominal voltage
220…240 V
Nominal wattage
10.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.80
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
330.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor controlled switching time
10 s…12 min
Sensor detection angle
40 °…160 °
Sensor IK rating
IK05
Sensor IP rating
IP65
Sensor technology
Passive infrared/Photocell
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
-
Temperature range at storage
-40…+70 °C
Total harmonic distortion
< 20 %
Type of connection
Cable, 3-pole
Type of protection
IP65
Type of sensor
Moti
Width
109.00 mm
With light source
Yes
