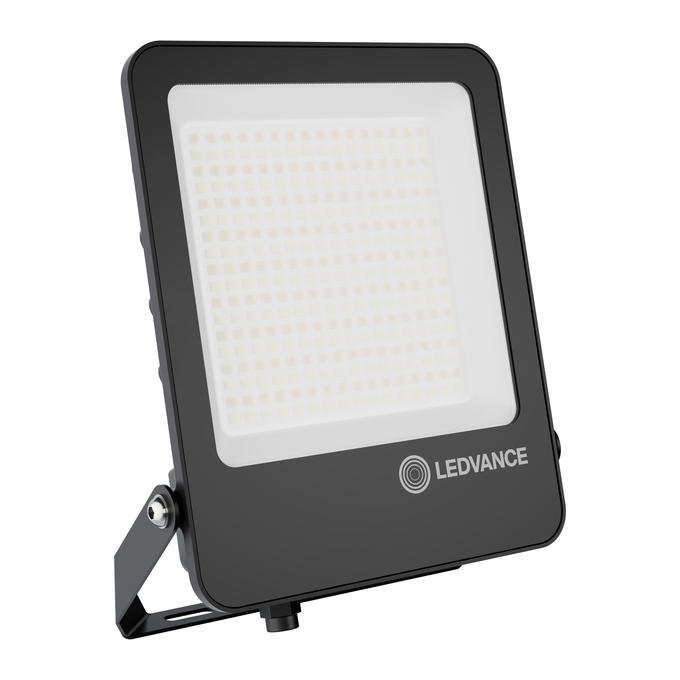

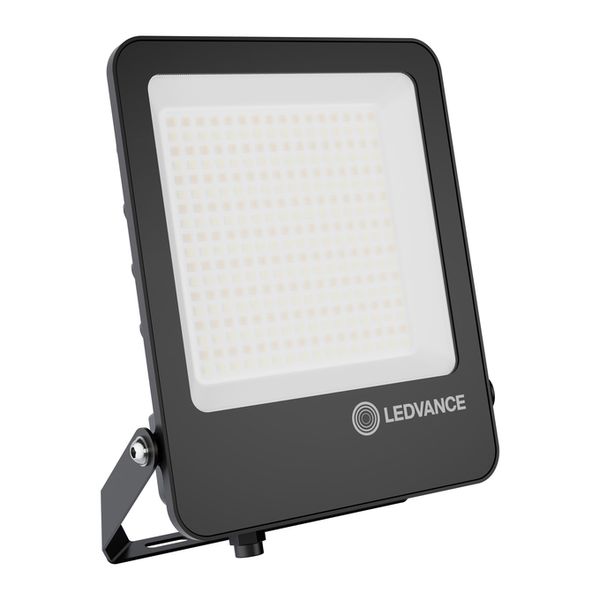

FL COMP 60/80 V 70W ML 8304065 BK
4099854832222
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select) thanks to a switch on the backside
- Robust cable gland with integrated waterstop function
- Breather membrane to optimize air exchange, without compromising IP protection
- Bright, robust and durable
- Energy savings of up to 90 % compared to halogen lamp floodlights
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
- Replacement for floodlights with halogen lamps
- Outdoor use (IP65)
- Public areas
- Building facades
- Construction areas
- Gardens, balconies and other outdoor areas
Product features
- High luminous efficacy: up to 150 lm/W
- Type of protection: IP65
- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
- Reflector-based, symmetric light distribution with 100° x 100° beam angle
- Mounting bracket with 30° angle and wide rotation area
- Integrated voltage driver, suitable for 220 - 240 V AC
Safety advice
- Max. wind load surface 18 W = 0,010 m² / 42 W = 0,018 m² / 70 W = 0,033 m² / 105 W = 0,044 m² / 135 W = 0,060 m² / 178 W = 0,074 m²
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Terminal block not included. Installation must be made by a qualified person.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
55 W
140 lm/W
70 W
140 lm/W
Added function
MULTI SELECT
Adjustable
Yes
Ambient temperature range
-30…+45 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
100 ° x 100 °
Body material
Aluminum
Cable length
1000 mm
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Corrosion resistance class acc. to EN 12944
C4 Medium
Cover material
Glass
Dimmable
No
ECG - Output ripple current
< 40 %
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854832222
Height
35.00 mm
Housing color
Black
Inrush current
34 A
Inrush current time Th50
3.2 µs
Length
184.00 mm
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Warm Whi
Light emitting surface material
Structured glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
150 lm/W
Luminous flux
10500 lm / 8200 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
22
Max. number of luminaires per miniature circuit breaker C10
17
Max. number of luminaires per miniature circuit breaker C16
28
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting height
≤5 m
Mounting location
Wa
Mounting type
Surface
Nominal current
314mA / 247 mA
Nominal voltage
220…240 V
Nominal wattage
70 W / 55 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
169 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.9
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product remark
Available from June 2026
Product weight
879.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
RAL Color (most similar)
RAL 9017
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤5 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
4 kV
Surge capability (L/N-Ground)
6 kV
Temperature range at storage
-40…+80 °C
Total harmonic distortion
≤ 10 %
Type of connection
Cable, 3-pole
Type of emergency operation test
None
Type of protection
IP65
Width
250.00 mm
With light source
Yes
