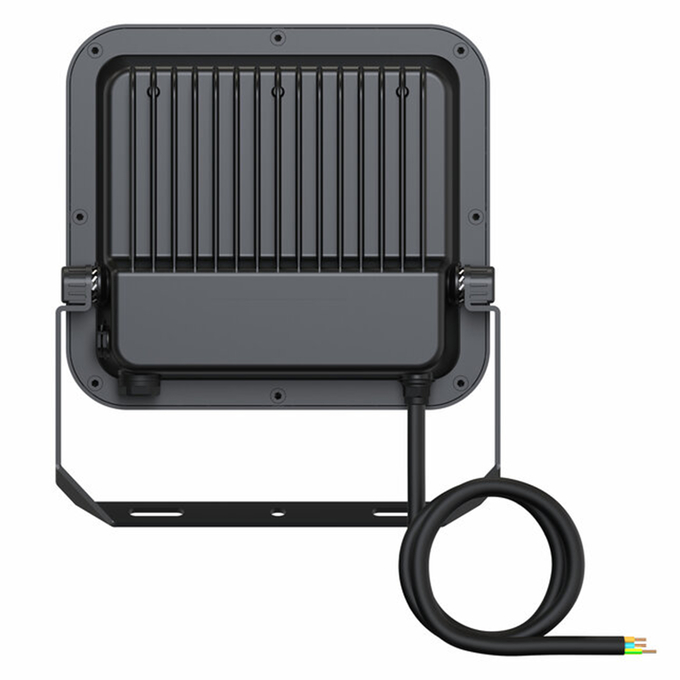

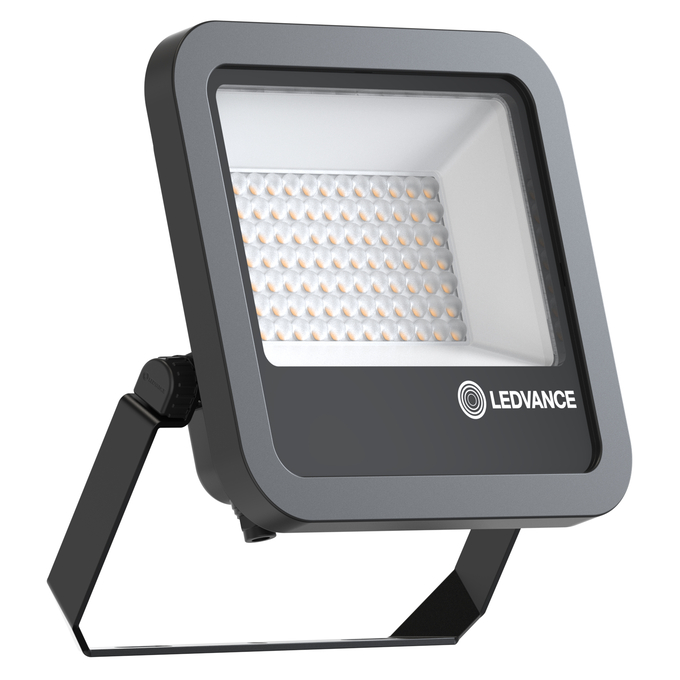

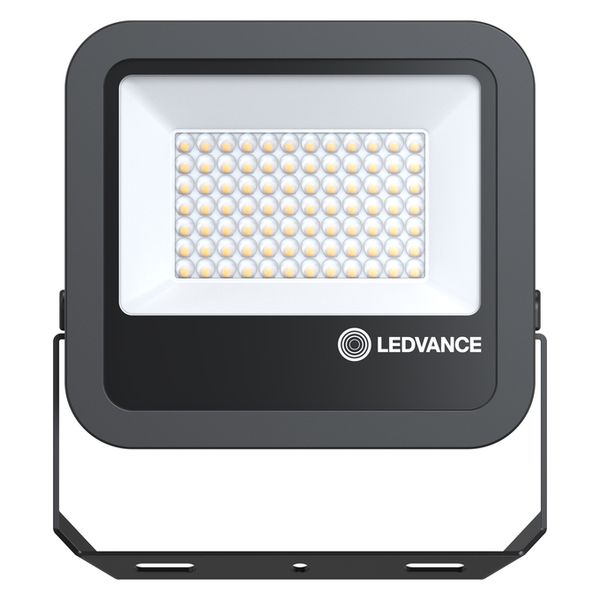

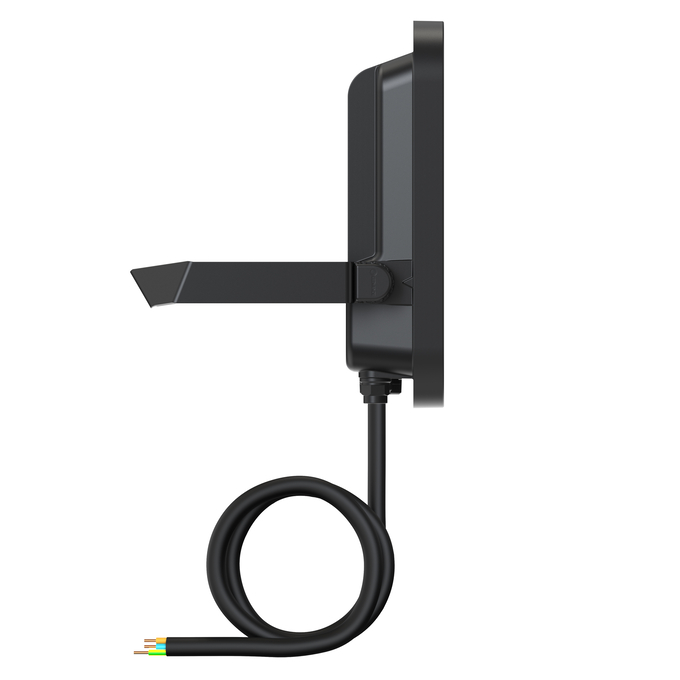

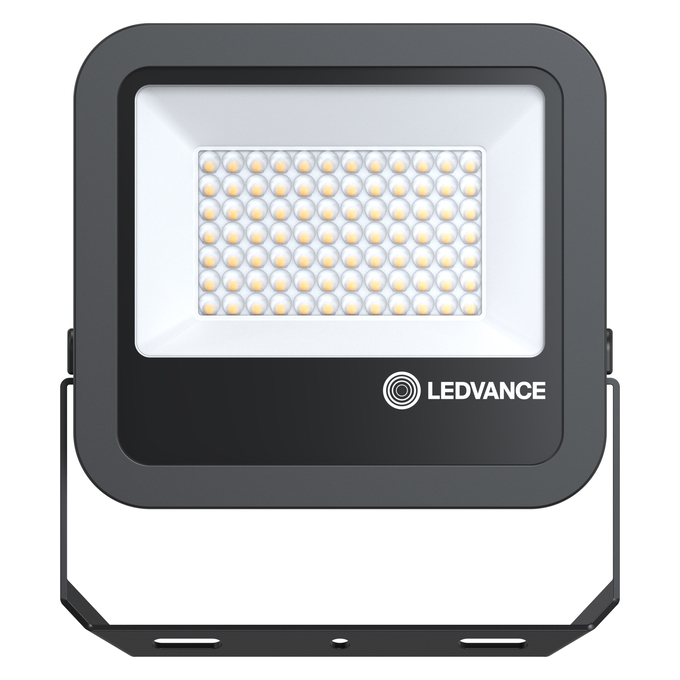

FL AREA V 50W ML 840 A48X85 BK
4099854427305
Product benefits
- Breather membrane to optimize air exchange, without compromising IP protection
- Highly versatile due to selectable lumen steps (Multi Lumen) on the housing
- Robust cable gland with integrated waterstop function
- High light uniformity and low glare light thanks to precise lens design
- Robust and weatherproof: IP66 / IK08, C4 corrosion protection for harsh environments
- Effective thermal management: up to 75,000 operating hours lifespan
- Insect-friendly: 3000 K light protects wildlife, supports subsidies
- Energy savings of up to 90 % compared to halogen lamp floodlights
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
- Replacement for floodlights with halogen lamps
- Outdoor use (IP66)
- D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
- Public areas
- Sports facilities
- Construction areas
- Parking
- Logistics areas, transport facilities and corridors
Product features
- High luminous output up to 25.000 lm, with top efficiency up to 150 lm/W
- Asymmetric light distribution for various application areas
- Multi Lumen function to adjust brightness levels to suit specific needs
- Type of protection: IP66
- Corrosion resistance C4: suitable for use in environments with moderate salinity
- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
- Mounting bracket with 30° angle and wide rotation area
Safety advice
- Max. wind load surface 16 W = 0,015 m² / 32 W = 0,025 m² / 50 W = 0,045 m² / 67 W = 0,070 m² / 100 W = 0,085 m² / 133 W and 160 W = 0,105 m²
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Terminal block not included. Installation must be made by a qualified person.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
36 W
146 lm/W
50 W
140 lm/W
Added function
MULTI SELECT
Adjustable
Yes
Ambient temperature range
-30…+50 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
48° x 85 °
Body material
Aluminum
Cable length
1000 mm
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Corrosion resistance class acc. to EN 12944
C4 Medium
Cover material
Glass
Dimmable
No
ECG - Output ripple current
20 %
EPD
LEDV-00049-V01.01-EN
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854427305
Height
52.00 mm
Housing color
Black
Inrush current
12.8 A
Inrush current time Th50
145 µs
Length
236.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Cool White
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
140 lm/W / 146 lm/W
Luminous flux
7000 lm / 5250 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
47
Max. number of luminaires per miniature circuit breaker C10
31
Max. number of luminaires per miniature circuit breaker C16
50
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting height
12 m
Mounting location
Wa
Mounting type
Surface
Nominal current
250/180 mA
Nominal voltage
220…240 V
Nominal wattage
50 W / 36 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
400 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
1747.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9017
Replaceable light source
No
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
4 kV
Surge capability (L/N-Ground)
6 kV
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Cable, 3-pole
Type of emergency operation test
None
Type of protection
IP66
Width
267.00 mm
With light source
Yes
