FL AREA V 133W ML 830 A48X85 BK

Product benefits

• Breather membrane to optimize air exchange, without compromising IP protection
• Highly versatile due to selectable lumen steps (Multi Lumen) on the housing
• Robust cable gland with integrated waterstop function
• High light uniformity and low glare light thanks to precise lens design
• Robust and weatherproof: IP66 / IK08, C4 corrosion protection for harsh environments
• Effective thermal management: up to 75,000 operating hours lifespan
• Insect-friendly: 3000 K light protects wildlife, supports subsidies
• Energy savings of up to 90 % compared to halogen lamp floodlights
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt

Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP66)
• D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
• Public areas
• Sports facilities
• Construction areas
• Parking
• Logistics areas, transport facilities and corridors

Product features

• High luminous output up to 25.000 lm, with top efficiency up to 150 lm/W
• Asymmetric light distribution for various application areas
• Multi Lumen function to adjust brightness levels to suit specific needs
• Type of protection: IP66
• Corrosion resistance C4: suitable for use in environments with moderate salinity

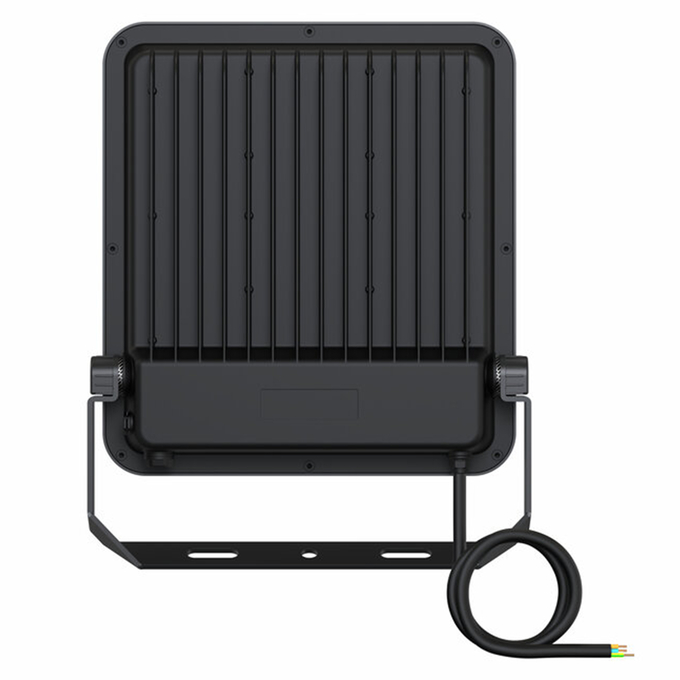

• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires

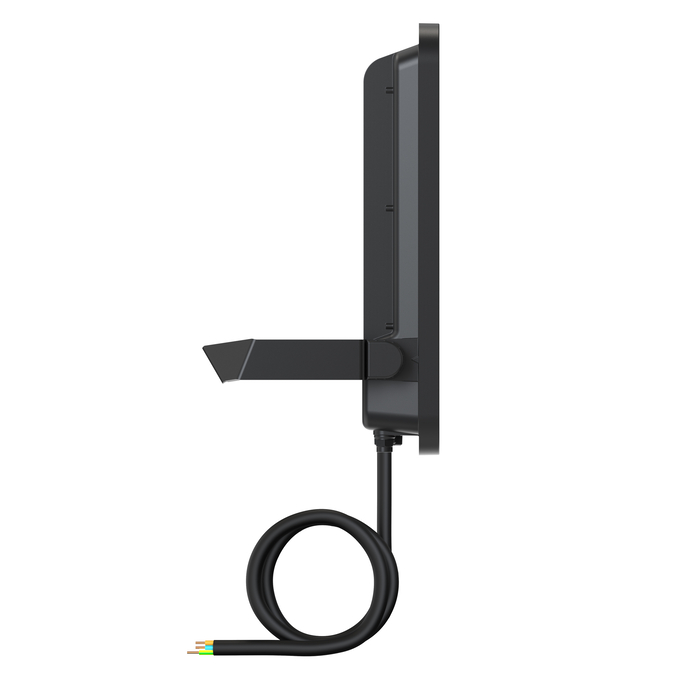

• Mounting bracket with 30° angle and wide rotation area

Safety advice

• Max. wind load surface 16 W = 0,015 m² / 32 W = 0,025 m² / 50 W = 0,045 m² / 67 W = 0,070 m² / 100 W = 0,085 m² / 133 W and 160 W = 0,105 m²
• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
• Terminal block not included. Installation must be made by a qualified person.
• To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
