FL AR QU S 1500W T857 15DEG DMX
4099854780998
Product benefits
- Light shaping free of color interference
- Minimized spill light and glare with optional reflector
- No upper light output ratio (ULOR 0 %)
- Various options for control gear functionality and mounting location
- Flicker <1 % also in dimming state
Areas of application
- Sports applications from leisure sport to international competition, where spill light minimization is required
- Suitable for indoor and outdoor sports facilities
- Large stadiums & arenas: homogeneous indoor/outdoor lighting, ideal for TV applications
- Suitable for large monument illumination, events, or open-air cinemas
- Motorsport venues: various lenses, illuminating long track sections for TV use
- Illumination for ski slopes to international events
Product features

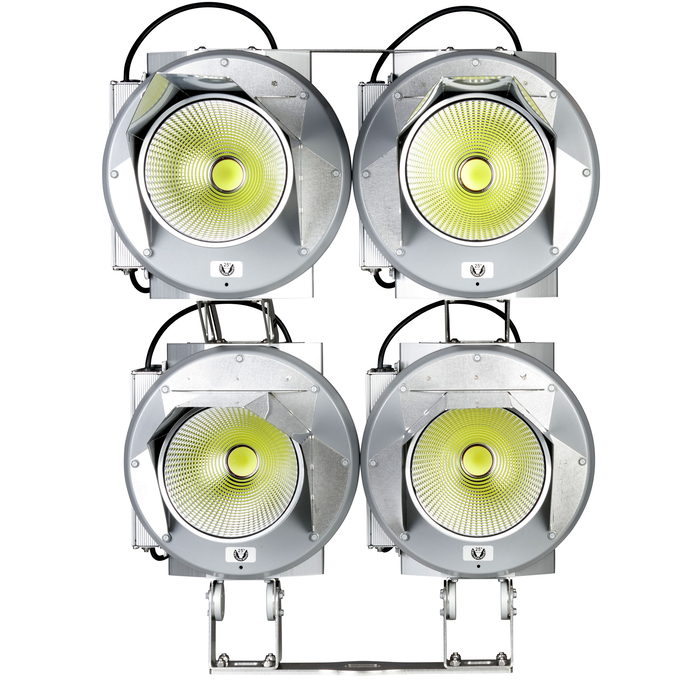

- With its huge flexibility FLOODLGHT ARENA can be configured in multiple different variants, e.g prewired solutions, DMX In/Out via XLR plugs, Solo/Duo and Quattro versions, customized driver assembly plates
- Please ask our sales for assistance via sports@ledvance.com

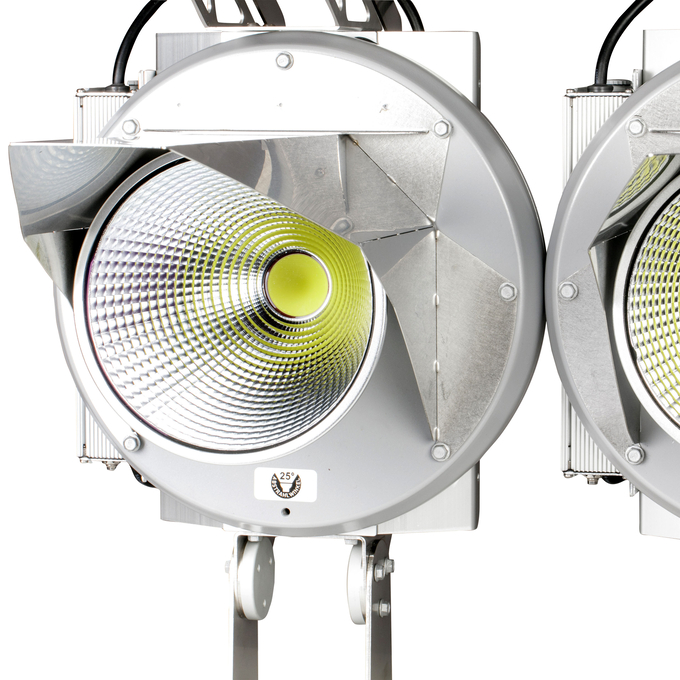

- COB based floodlight with anodized die-casted aluminum housing

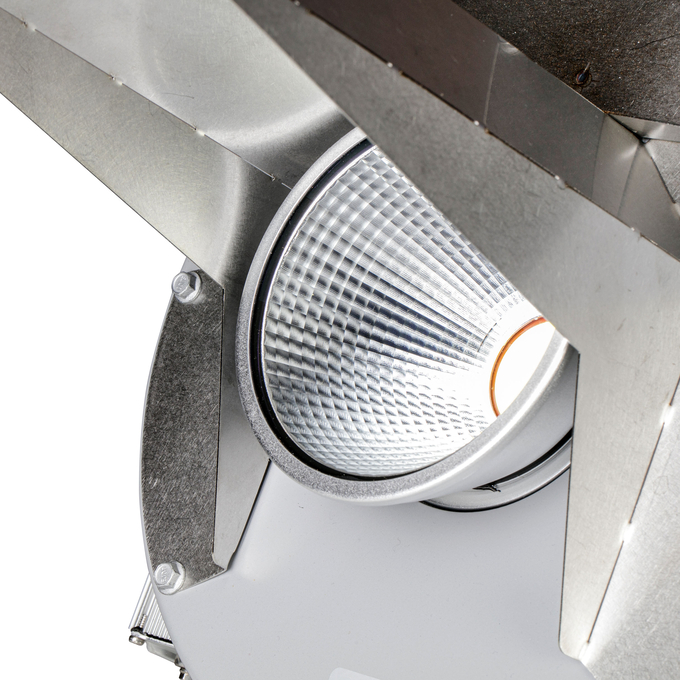

- Light shaping via high grade metal reflector

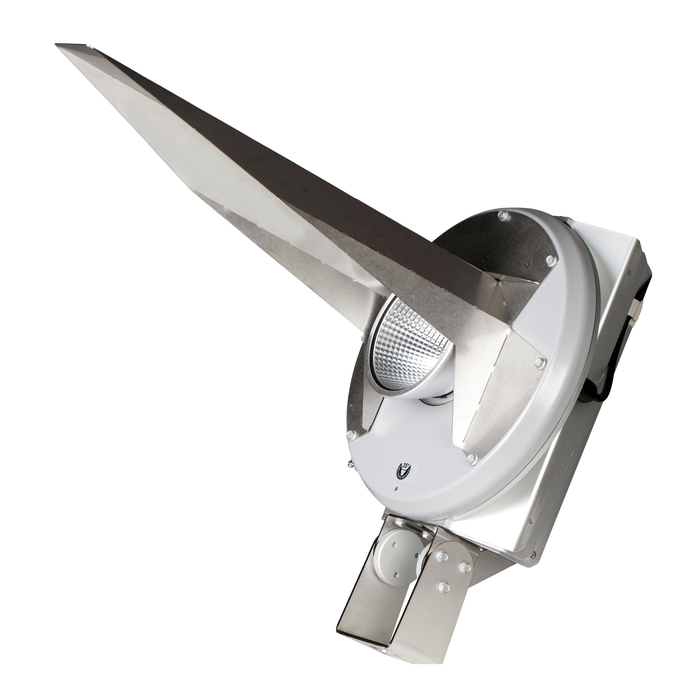

- Optional stainless steel reflector shields available

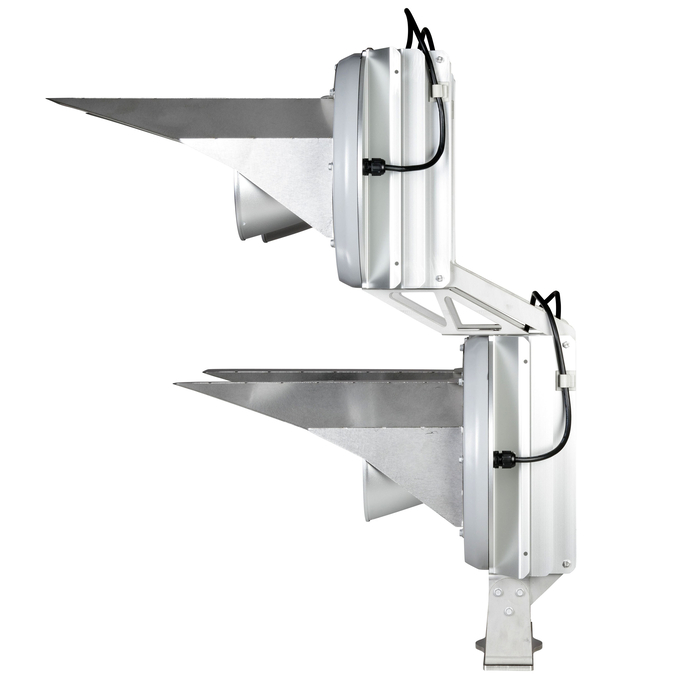

- Control gear attached to the luminaire or mounted separately, thermally decoupled from light source
Equipment / Accessories
- Aiming device available
- Various reflector shields for front light cut-off available
Safety advice
- All electrical connections must be made by a qualified person.
- For single point fixation and installation heights > 3 m a secondary fixation of luminaire and bracket restraining wire is mandatory for safety reasons.
- Caution, risk of electric shock.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-25…+50 °C
Application environment
Outdoor
Ball shot safe
Yes
Beam angle
15 °
Body material
Anodised aluminum
Color rendering index Ra
≥80
Color temperature
5700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Glass
Dimmable
Yes
Flickering metric (Pst LM)
≤ 1
GTIN
4099854780998
Height
748.00 mm
Housing color
Silver
Length
550.00 mm
Light color (designation)
Cool Daylight
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminous efficacy
133 lm/W
Luminous flux
200000 lm
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal voltage
220…240 V
Nominal wattage
1500.00 W
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.96
Product color
Silver
Product recyclability
Mostly recyclable product 1)
Product weight
32000.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Stroboscope effect metric (SVM)
≤ 0.4
Surge capability (L-N)
6 kV
Surge capability (L/N-Ground)
10 kV
Type of connection
Cable, 3-pole
Type of dimming
DMX
Type of protection
IP65/IP65
Width
632.00 mm
With light source
Yes
