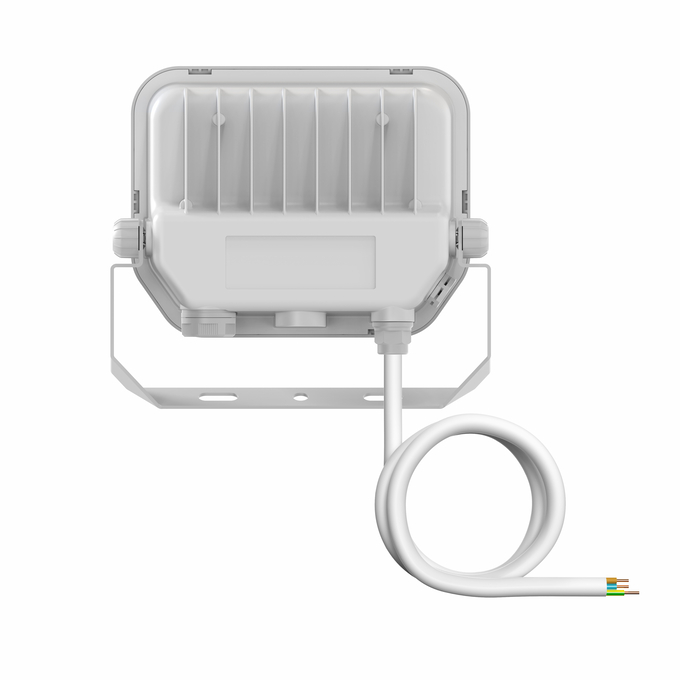

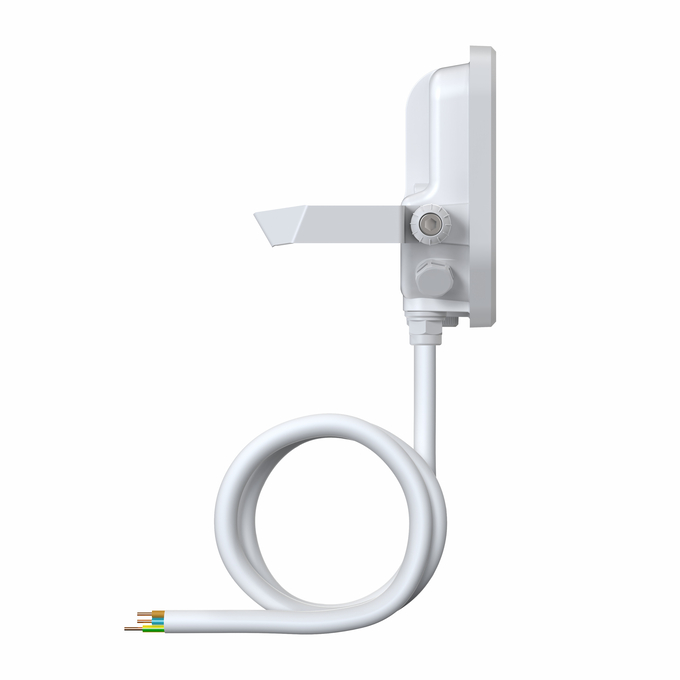

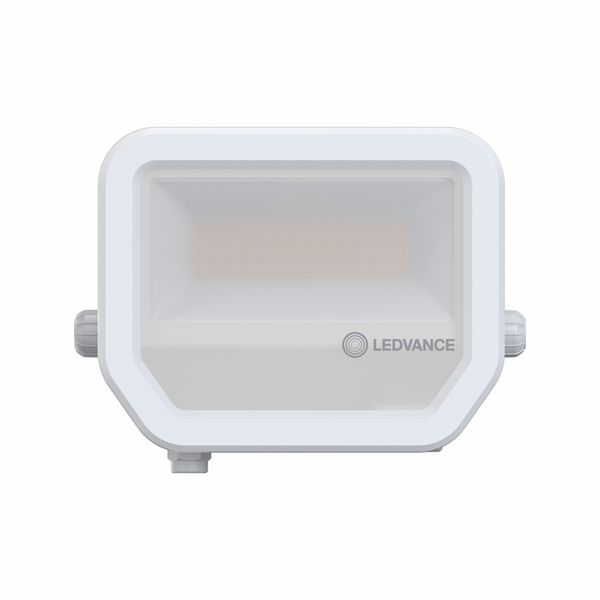

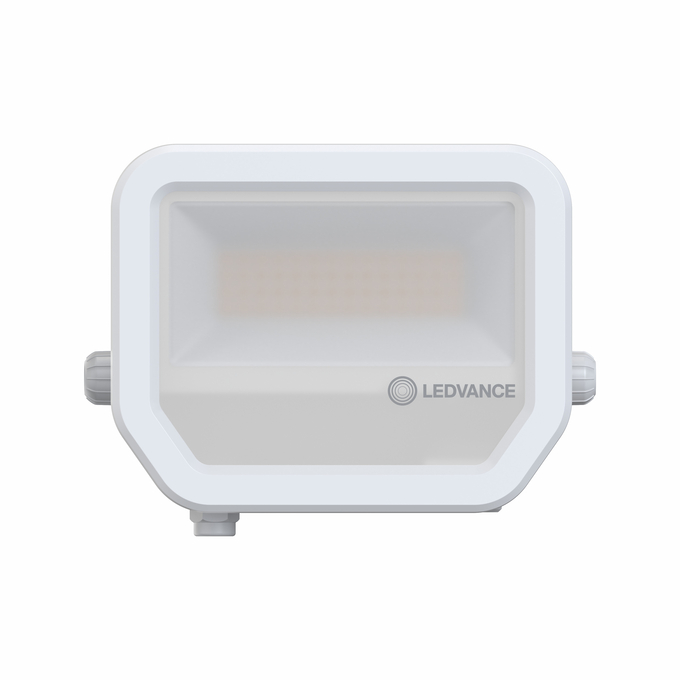

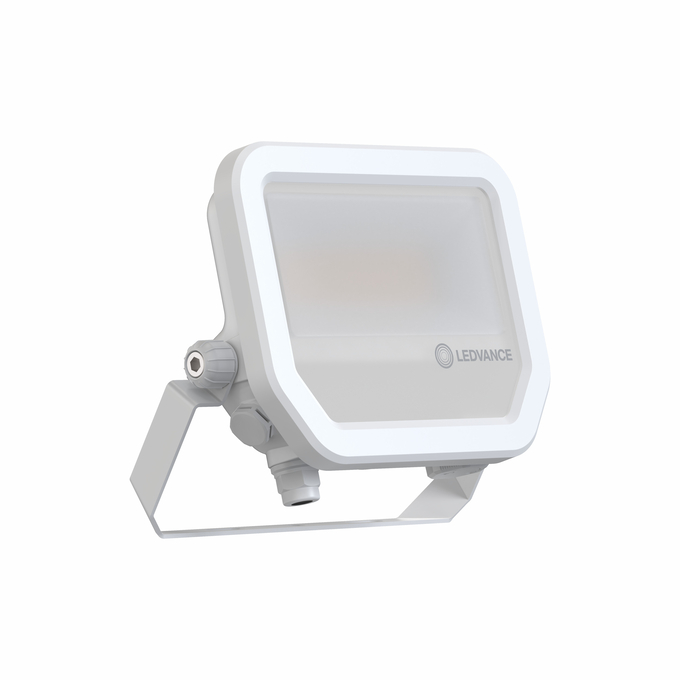

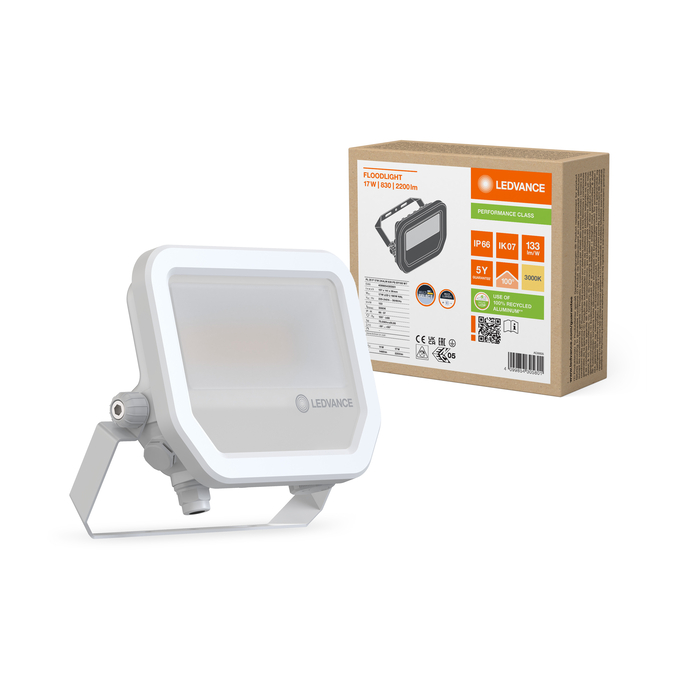

FL 20 P 17W 2K4LM 830 PS SY100 WT
4099854305801
Product benefits
- Breather membrane to optimize air exchange, without compromising IP protection
- Highly versatile due to selectable lumen steps (Multi Lumen) on the housing
- Robust cable gland with integrated waterstop function
- Safe and very uniform illumination, due to frosted and tempered glass diffuser
- Bright, robust and durable
- Energy savings of up to 90 % compared to halogen lamp floodlights
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
- Replacement for floodlights with halogen lamps
- Outdoor use (IP66)
- D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
- Public areas
- Building facades
- Construction areas
- Parking
- Gardens and balconies
Product features
- High luminous efficacy: up to 145 lm/W
- Type of protection: IP66
- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
- Reflector-based, symmetric light distribution with 100° x 100° beam angle
- Mounting bracket with 30° angle and wide rotation area
Safety advice
- Max. wind load surface 0.015 m²
References / Links
- For Guarantee see
11 W
133 lm/W
17 W
133 lm/W
Added function
MULTI SELECT
Adjustable
Yes
Ambient temperature range
-30…+50 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
100 ° x 100 °
Body material
Aluminum
Cable length
1000 mm
Color rendering index Ra
80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Corrosion resistance class acc. to EN 12944
C4
Cover material
Glass
Dimmable
No
ECG - Output ripple current
< 20 %
EPD
LEDV-00031-V01.01-EN
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854305801
Height
141.00 mm
Housing color
White
Inrush current
7.32 A
Inrush current time Th50
23.4 µs
Length
157.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
35000 h
Light color (designation)
Warm White
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
133 lm/W
Luminous flux
2200 lm / 1465 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
102
Max. number of luminaires per miniature circuit breaker C10
81
Max. number of luminaires per miniature circuit breaker C16
131
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
75/60 mA
Nominal voltage
220…240 V
Nominal wattage
17 W / 11 W
Operating mode
Integrated LED driver
Output current
133 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
526.00 g
Protection class
I
Protection class IK (shock resistance)
IK07
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
≤0.9
Surge capability (L-N)
2 kV
Surge capability (L/N-Ground)
4 kV
Temperature range at storage
-40…+70 °C
Total harmonic distortion
< 20 %
Type of connection
Cable, 3-pole
Type of protection
IP66
Width
38.00 mm
With light source
Yes
