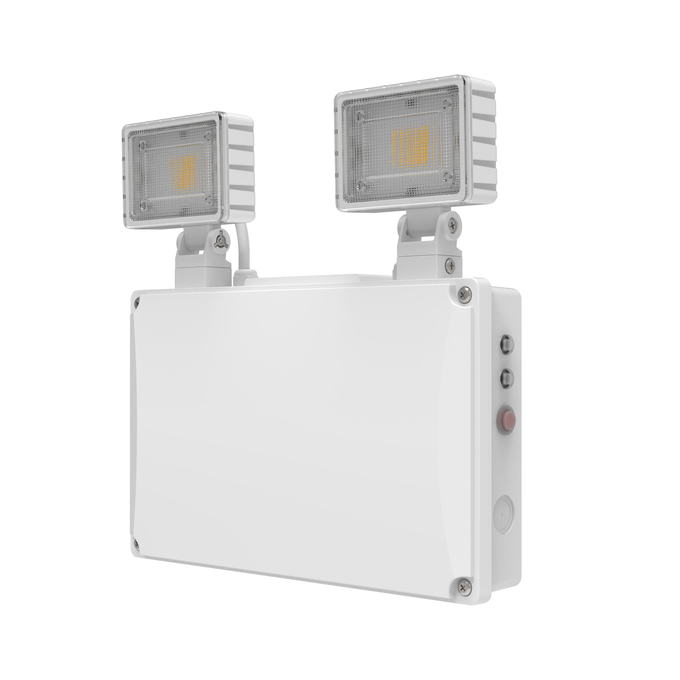

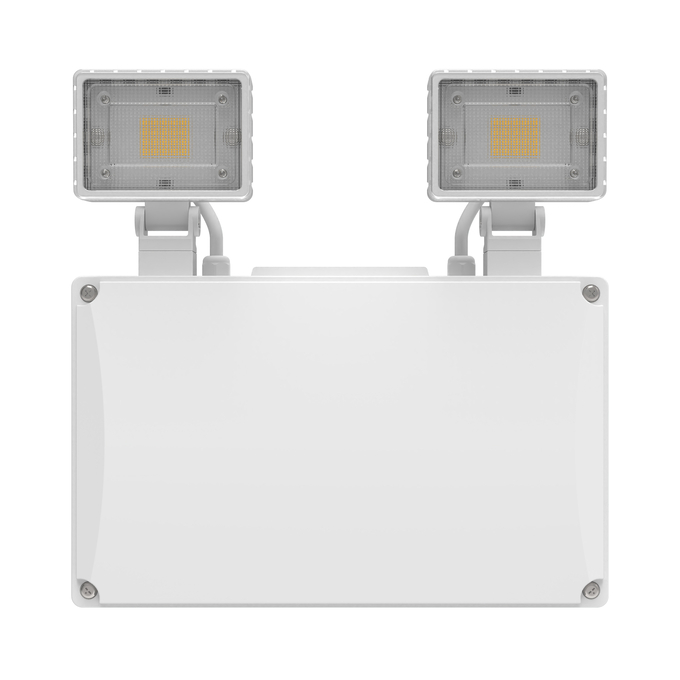

EM TWIN SPOT V 3W 3H AT IP65 WT
4099854668203
Product benefits
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Emergency lighting according to IEC 60598-2-22 with emergency lighting driver and battery

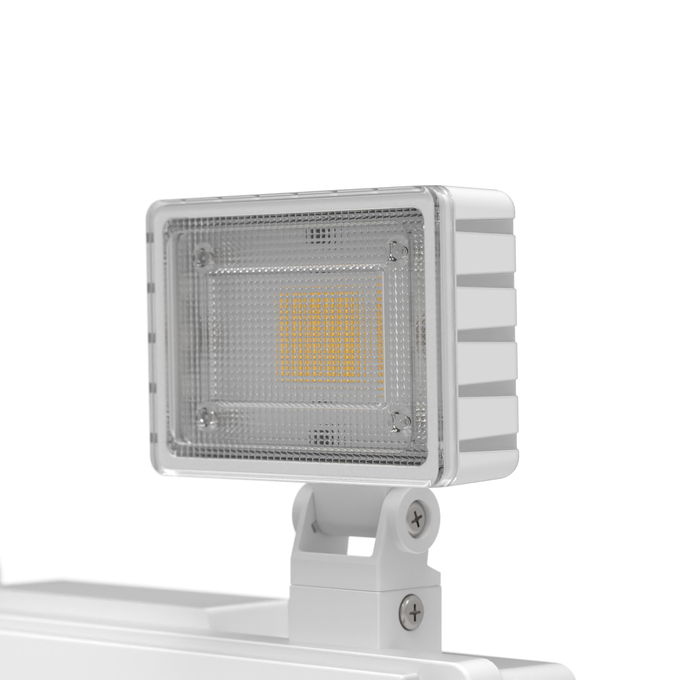

- Fully adjustable twin spot lights ensure optimal illumination
Areas of application
- Antipanic lighting
- Car parks and industrial sites
- Offices, education, public buildings
Product features
- Type of protection: IP65
- Battery discharge time: 3 h
- Battery technology: LiFePO4
- Function test of emergency lighting: automatic (AT)

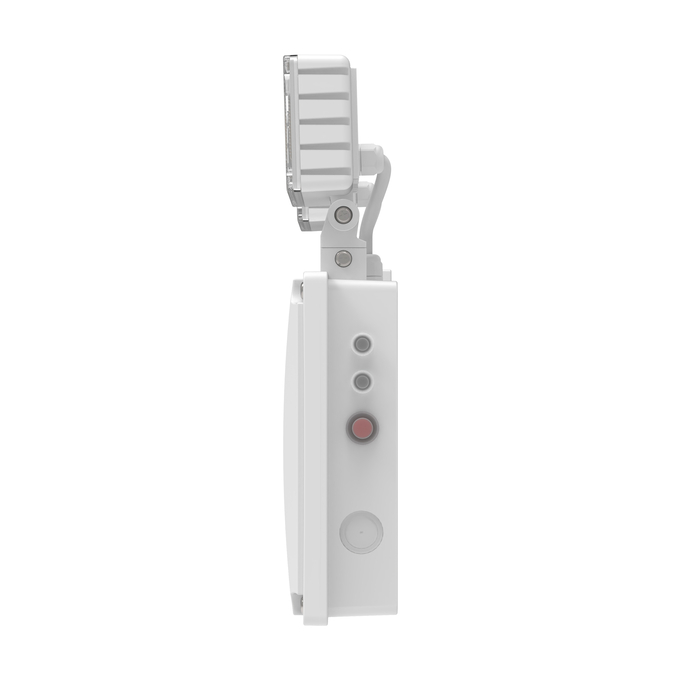

- With integrated test switch for manual testing
- Operation mode: non-maintained (NM)
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Adjustable
No
Ambient temperature range
0…+45 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighting
Ball shot safe
No
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
100 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
8 %
Flickering metric (Pst LM)
≤ 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854668203
Height
274.00 mm
Housing color
White
Inrush current
6.8 A
Inrush current time Th50
48 µs
Integrated test switch
Yes
Length
275.00 mm
Lifespan L70/B50 at 25 °C
80000 h 1)
Lifespan L80/B10 at 25 °C
80000 h 1)
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
150 lm/W
Luminous flux
450 lm
Luminous flux in emergency operation mode
450 lm
Luminous intensity
no relevant
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
110
Max. number of luminaires per miniature circuit breaker C10
90
Max. number of luminaires per miniature circuit breaker C16
150
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
55.5 mm
Mounting location
Wall
Mounting type
Recessed
Nominal capacity of battery
1500 mAh
Nominal current
45 mA
Nominal voltage
220…240 V
Nominal voltage of battery
9.6 V
Nominal wattage
3.00 W
Number of switching cycles
50000
Operating mode
Integrated LED driver
Output current
247…331 mA
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
0.3
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1015.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
≤ 0,4
Surge capability (L-N)
1 kV
Temperature range at storage
0…+45 °C
Type of Battery
LiFePO4
Type of connection
Terminal
Type of emergency light operation
Non-maintained
Type of emergency operation test
Automatic
Type of protection
IP65
Wattage in emergency operation mode
3 W
Width
55.00 mm
With light source
Yes
