EM SPOT E 1.3W 3H AT
4099854230653
Product benefits

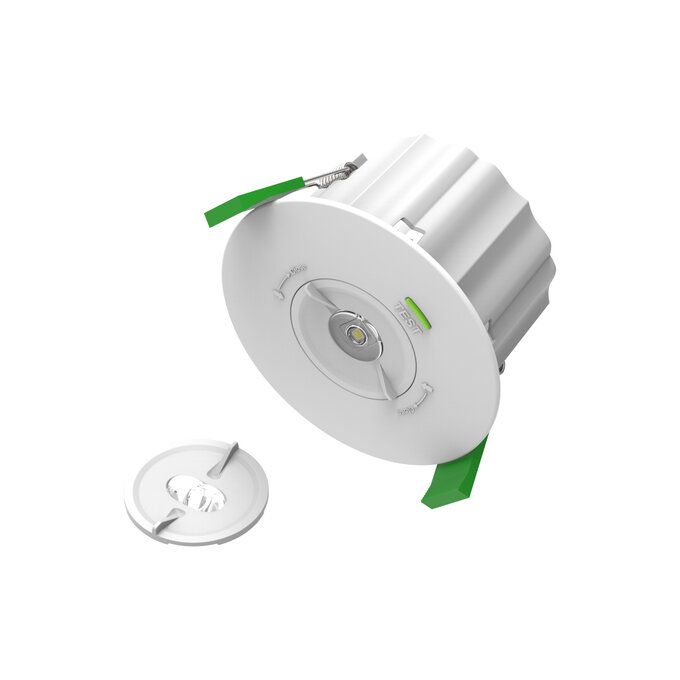

- Flexible changeable lenses for different applications included in packaging
- Less luminaires per installation due to optimized light distribution
- Easy maintenance with automatic test function or integrated test switch
Areas of application
- Antipanic lighting
- Foyers
- Offices
- Corridors, entrances, foyers, stairwells, elevators
Product features
- Battery discharge time: 3 h
- Battery technology: LiFePO4
- Function test: manual (MA) or automatic (AT)
- With integrated test switch for manual testing
- Operation mode: non-maintained (NM)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
1.3 W
150 lm/W + 120lm/W
Adjustable
No
Ambient temperature range
0…+45 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighting
Ball shot safe
No
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
150° + 155x90 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 70
Color temperature
5700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
104.00 mm
Dimmable
No
ECG - Output ripple current
28 %
Flickering metric (Pst LM)
≤ 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854230653
Height
66.00 mm
Housing color
White
Inrush current
6.72 A
Inrush current time Th50
47.6 µs
Integrated test switch
Yes
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
150 lm/W
Luminous flux
200 lm
Luminous flux in emergency operation mode
200 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
111
Max. number of luminaires per miniature circuit breaker C10
89
Max. number of luminaires per miniature circuit breaker C16
142
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
66.00 mm
Mounting diameter
95 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal capacity of battery
1800 mAh
Nominal current
20.000 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
1.30 W
Number of switching cycles
50000
Operating mode
Integrated LED driver
Output current
230 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.2
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
250.00 g
Protection class
II
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Stroboscope effect metric (SVM)
≤ 0,4
Temperature range at storage
0…+35 °C
Type of Battery
LiFePO4
Type of connection
Terminal
Type of emergency light operation
Non-maintained
Type of Emergency Lighting (EL)
EL unit (battery and controller) for decentral operation included
Type of emergency operation test
Automatic
Type of protection
IP20
Wattage in emergency operation mode
1.3 W
With light source
Yes
