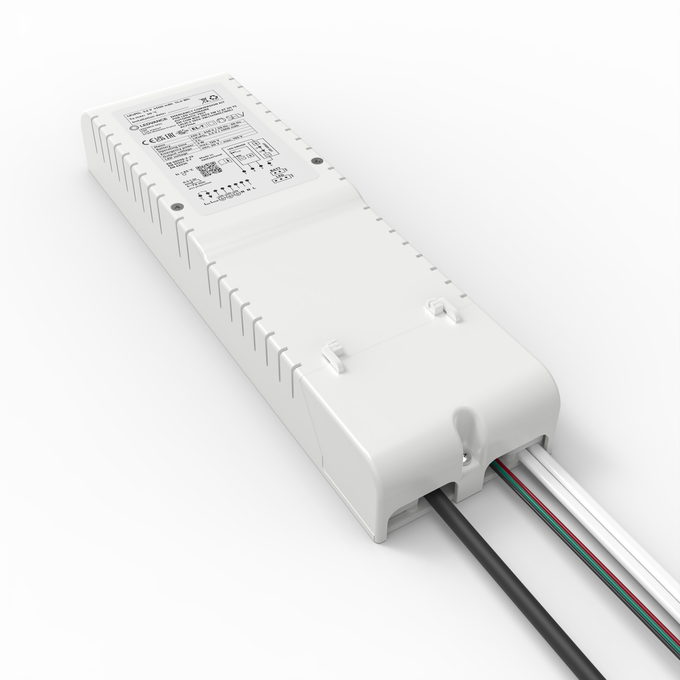

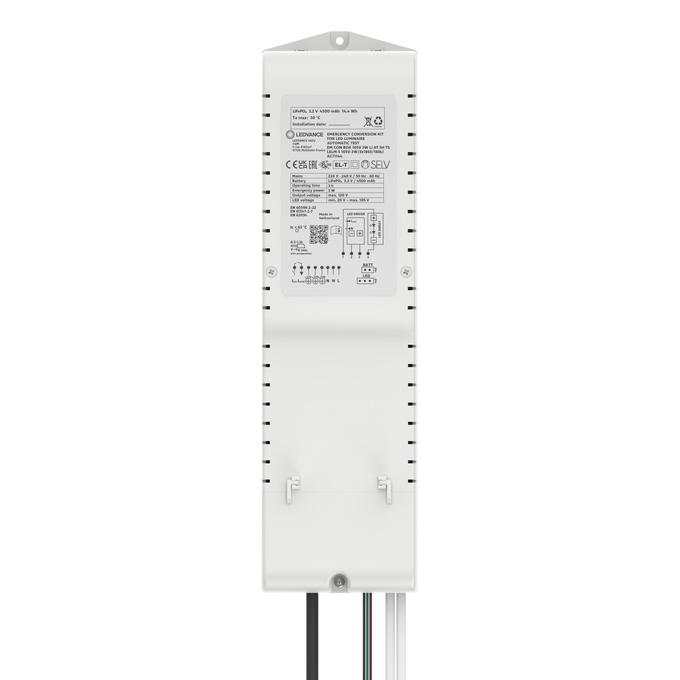

EM CONVERSION BOX TEMPERATURE SENSOR
4099854455933
Product benefits
- Converts selected panels and downlights to emergency luminaires
- With integrated battery temperature sensor control
- Emergency conversion unit reduces stock-keeping complexity of emergency lighting products
- Plug-and-play system allows easy installation
- Easy testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
Areas of application
- Buildings requiring up to 3 h emergency light operation
Product features
- Self-contained emergency conversion unit with single battery
- Automatic function test of emergency lighting
- Battery technology: LiFePO4
- Recessed ceiling mounting
Equipment / Accessories
- Control LED with a retainer for recessed installation included
Safety advice
- The conformity of the converted luminaire with all relevant statutory and legal safety and other requirements and technical standards, such as EN 60598-1 and EN 60598-2-22, has to be ensured during and after installation of the Emergency Conversion Box. It is also recommended to comply with ICEL 1004:2018. The converted luminaire has to be marked with a new data plate.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
+5…+50 °C
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854455933
Height
41.00 mm
Integrated test switch
No
Length
292.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Recessed
Nominal capacity of battery
4500 mAh
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
352.00 g
Protection class
II
Replaceable light source
No
Temperature range at storage
+5…+35 °C
Type of Battery
LiFePO4
Type of connection
Screwless
Type of emergency light operation
Maintain
Type of emergency operation test
Automatic
Type of protection
IP20
Wattage in emergency operation mode
3,0 W
Wattage in maintained operation mode
3,0 W
Width
81.00 mm
