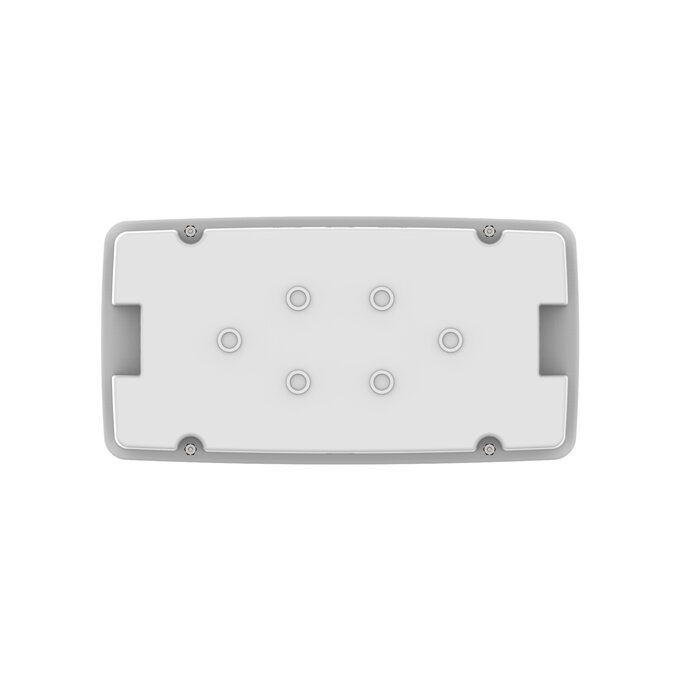

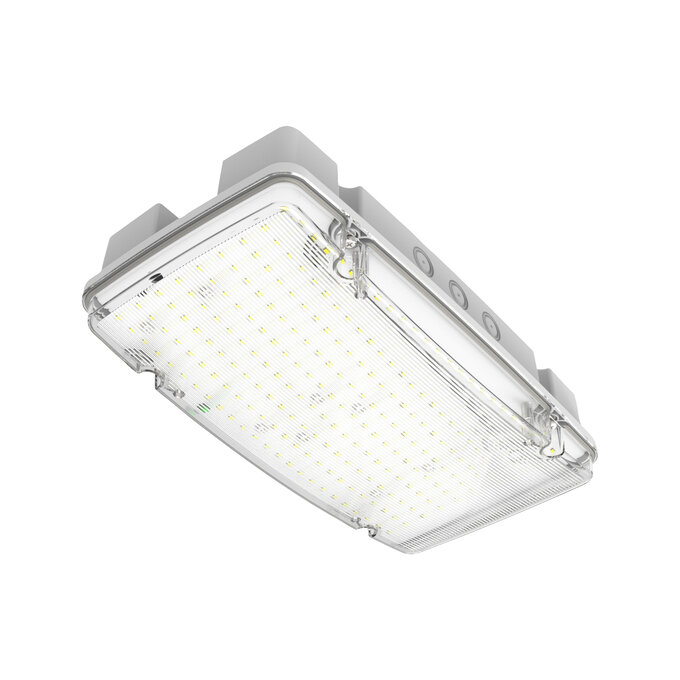

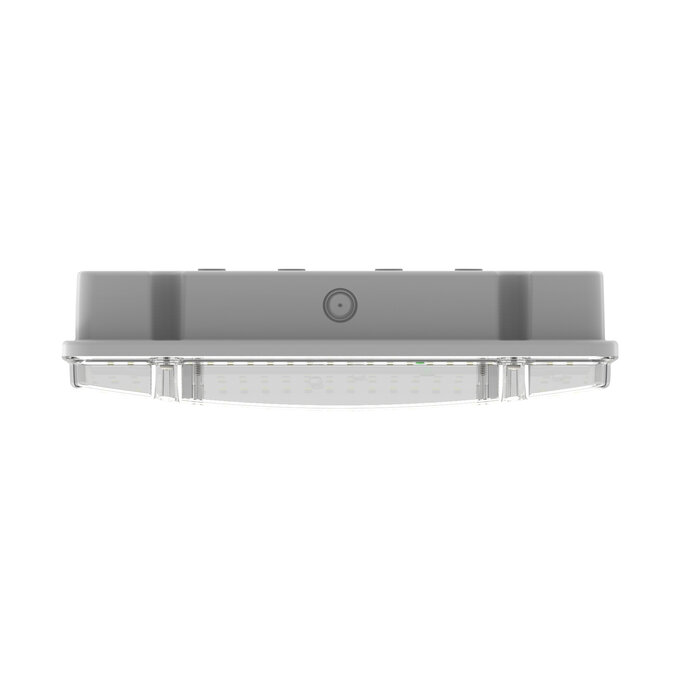

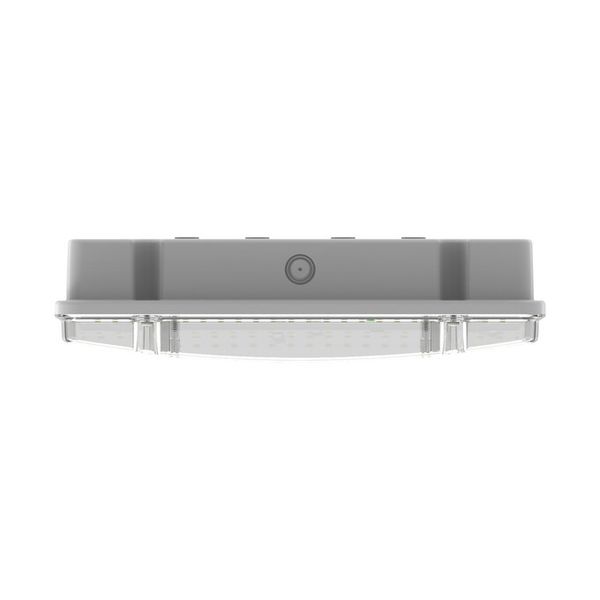

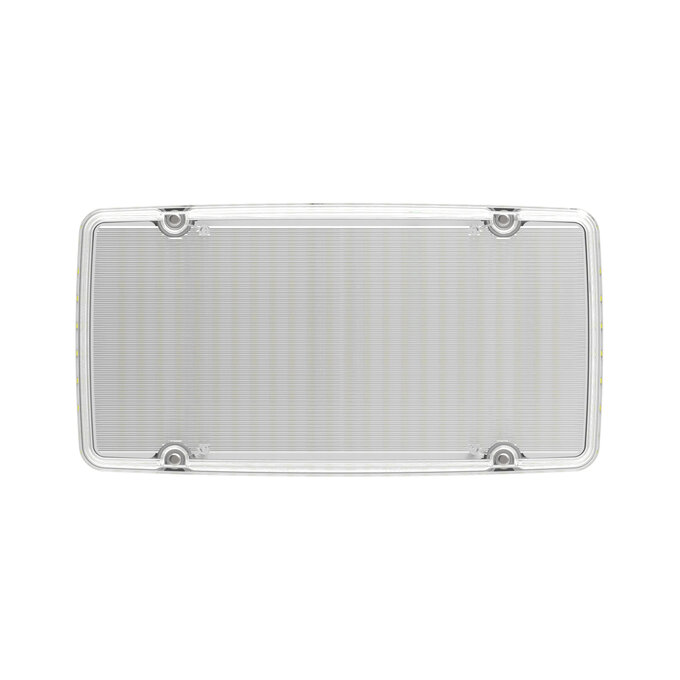

EM BULKHEAD HLO E 10W 3H AT
4099854230691
Product benefits
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Easy maintenance with automatic test function or integrated test switch
Areas of application
- Antipanic lighting
- Industry
- Warehouses
Product features
- Luminous flux: 1500 lm
- Type of protection: IP66
- Battery discharge time: 3 h
- Battery technology: LiFePO4
- Function test: manual (MA) or automatic (AT)
- With integrated test switch for manual testing
- Operation mode: non-maintained (NM)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Adjustable
No
Ambient temperature range
0…+45 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighting
Ball shot safe
No
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
70 ° x 140 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
5700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
8 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854230691
Height
83.00 mm
Housing color
White
Inrush current
4.4 A
Inrush current time Th50
16 µs
Integrated test switch
Yes
Length
321.00 mm
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
150 lm/W
Luminous flux
1500 lm
Luminous flux in emergency operation mode
1500 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
170
Max. number of luminaires per miniature circuit breaker C10
136
Max. number of luminaires per miniature circuit breaker C16
218
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
0 mm
Mounting location
Ceili
Mounting type
Surface
Nominal capacity of battery
6600 mAh
Nominal current
51.000 mA
Nominal voltage
220…240 V
Nominal voltage of battery
6.4 V
Nominal wattage
10.00 W
Number of switching cycles
50000
Operating mode
Integrated LED driver
Output current
900 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.3
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1470.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
Replaceable light source
No
Stroboscope effect metric (SVM)
≤ 0,4
Temperature range at storage
0…+35 °C
Type of Battery
LiFePO4
Type of connection
Terminal
Type of emergency light operation
Non-maintained
Type of Emergency Lighting (EL)
EL unit (battery and controller) for decentral operation included
Type of emergency operation test
Automatic
Type of protection
IP66
Wattage in emergency operation mode
10 W
Width
167.00 mm
With light source
Yes
