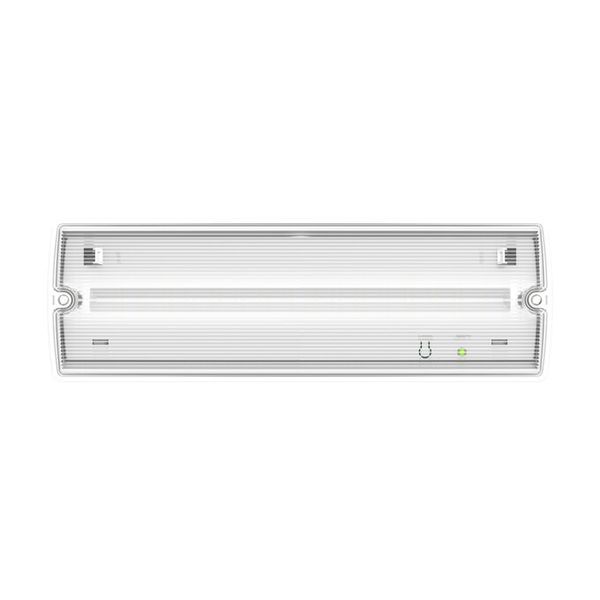

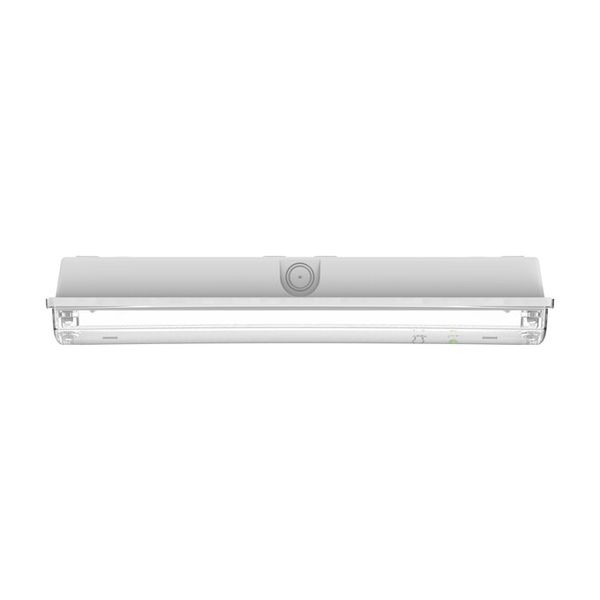

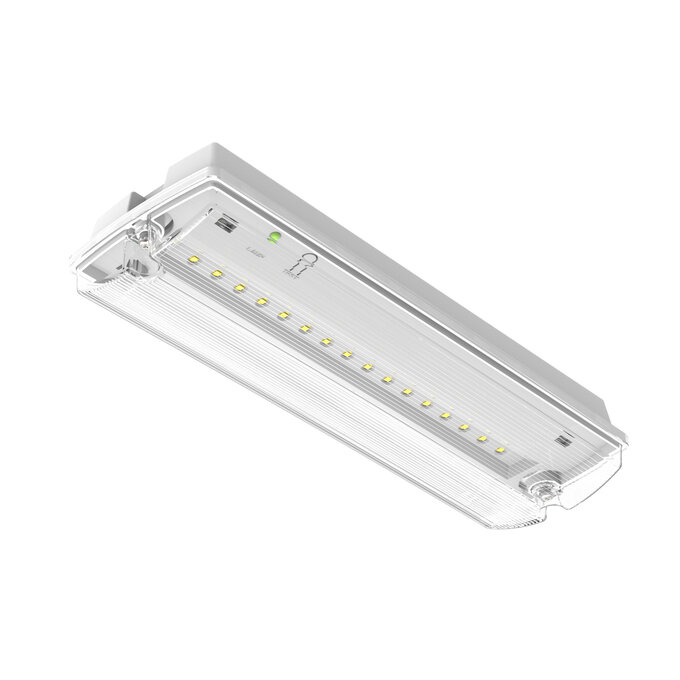

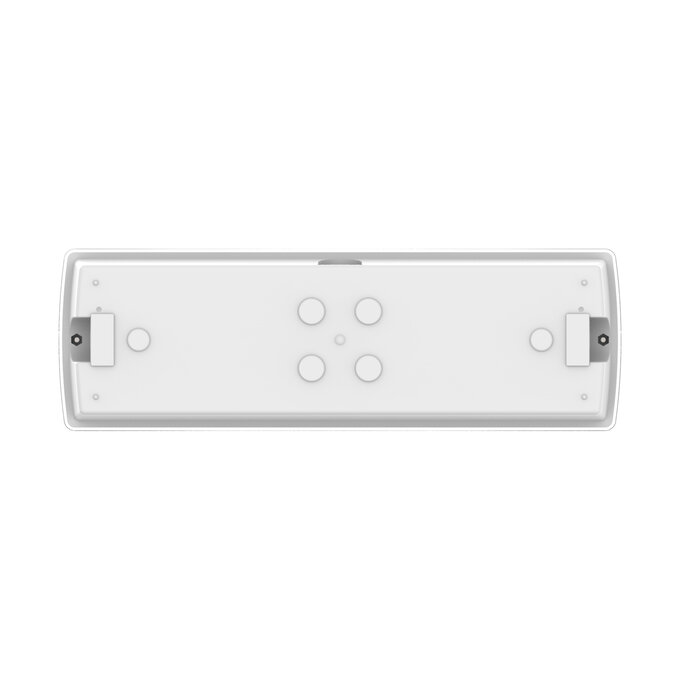

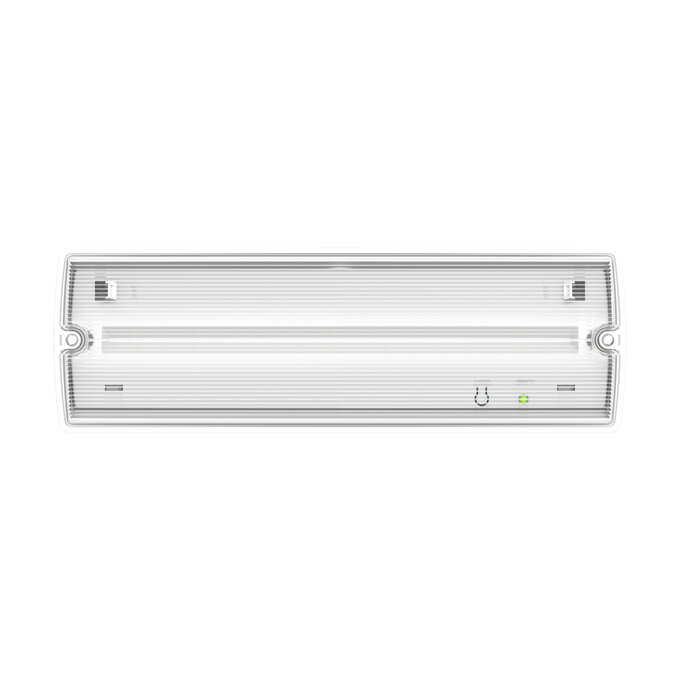

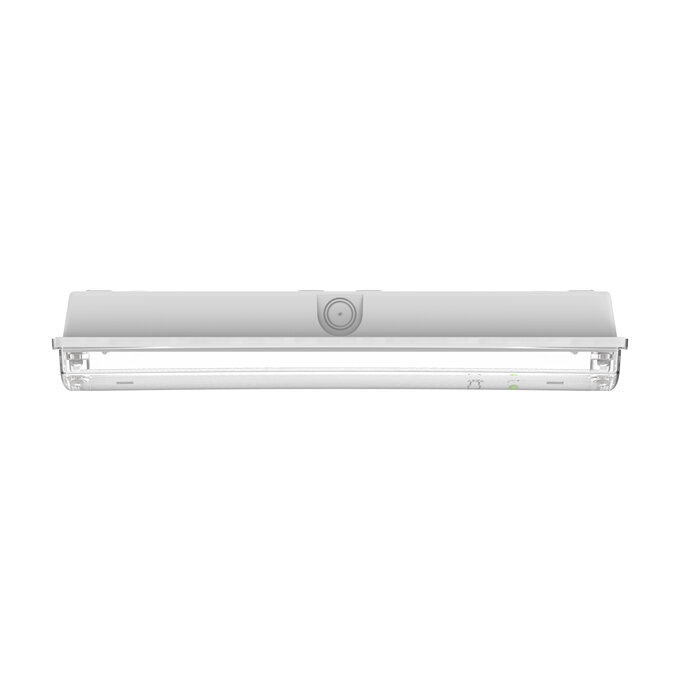

EM BULKHEAD E 1.3W 3H EM/AC AT
4099854230677
Product benefits
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Easy maintenance with automatic test function or integrated test switch
- Emergency pictograms included in packaging
Areas of application
- Antipanic lighting
- Industry
- Corridors, stairways, entrance areas
Product features
- Luminous flux: 200 lm
- Type of protection: IP65
- Battery discharge time: 3 h
- Battery technology: LiFePO4
- Function test: manual (MA) or automatic (AT)
- With integrated test switch for manual testing
- Operation mode: maintained (M) or non-maintained (NM)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Adjustable
No
Ambient temperature range
0…+45 °C
Application environment
Indoor
Area of emergency application
Escape route lighti
Ball shot safe
No
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
100 ° x 120 °
Body material
Polycarbonate (PC)|Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
5700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)/ Acrylonitrile Butadiene Styrene (ABS)
Dimmable
No
ECG - Output ripple current
8 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854230677
Height
63.00 mm
Housing color
White
Inrush current
6.8 A
Inrush current time Th50
48 µs
Integrated test switch
Yes
Length
355.00 mm
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
150 lm/W
Luminous flux
200 lm
Luminous flux in emergency operation mode
200 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
110
Max. number of luminaires per miniature circuit breaker C10
88
Max. number of luminaires per miniature circuit breaker C16
141
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
0 mm
Mounting location
Ceili
Mounting type
Surface
Nominal capacity of battery
1800 mAh
Nominal current
42.000 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
1.30 W
Number of switching cycles
50000
Operating mode
Integrated LED driver
Output current
460 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.3
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
510.00 g
Protection class
II
Protection class IK (shock resistance)
IK06
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
≤ 0,4
Temperature range at storage
0…+35 °C
Type of Battery
LiFePO4
Type of connection
Terminal
Type of emergency light operation
Maintain
Type of Emergency Lighting (EL)
EL unit (battery and controller) for decentral operation included
Type of emergency operation test
Automatic
Type of protection
IP65
Wattage in emergency operation mode
1.3 W
Width
115.00 mm
With light source
Yes
