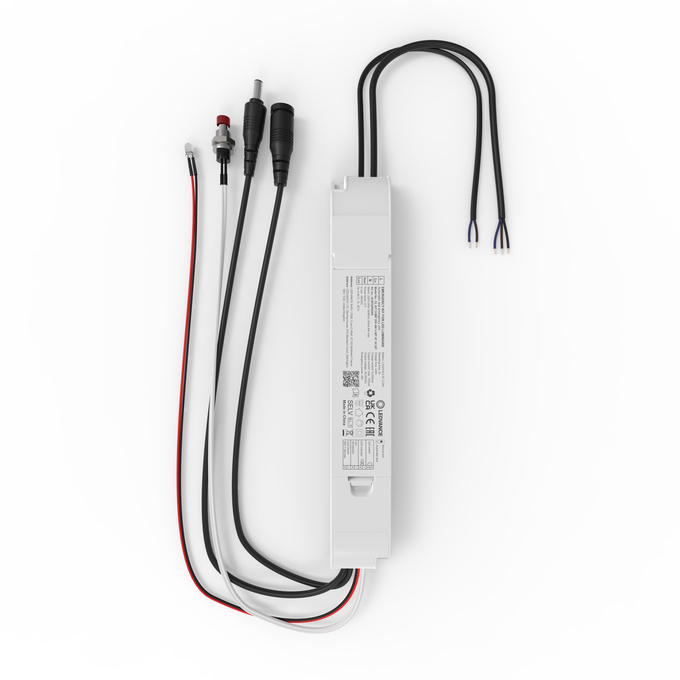

EL KIT COMP 55V 4W LI MT AT 3H WT
4099854679209
Product benefits
- Converts selected panels and downlights to emergency luminaires
- With integrated battery temperature sensor control
- Emergency kit unit reduces stock-keeping complexity of emergency lighting products
- Plug-and-play system allows easy installation
- Easy maintenance thanks to manual or automatic test function of the emergency lighting
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
Areas of application
- Buildings requiring up to 3 h emergency light operation
Product features
- Self-contained emergency conversion unit with single battery
- Manual or automatic function test of emergency lighting
- Battery technology: LiFePO4
Equipment / Accessories
- Control LED with a retainer for recessed installation included
- Battery included
Safety advice
- The conformity of the converted luminaire with all relevant statutory and legal safety and other requirements and technical standards, such as EN 60598-1 and EN 60598-2-22, has to be ensured during and after installation of the Emergency Conversion Box. It is also recommended to comply with ICEL 1004:2018. The converted luminaire has to be marked with a new data plate.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
0…+50 °C
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Body material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
GTIN
4099854679209
Height
30.00 mm
Housing color
White
Inrush current
1.25 A
Integrated test switch
Yes
Length
280.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
91
Max. number of luminaires per miniature circuit breaker C10
94
Max. number of luminaires per miniature circuit breaker C16
151
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal capacity of battery
3200 mAh
Nominal current
23.5 mA
Nominal voltage
220…240 V
Nominal voltage of battery
6.4 V
Nominal wattage
4.00 W
Number of switching cycles
100000
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
415.00 g
Protection class
II
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Temperature range at storage
0…+55 °C
Type of Battery
LiFePO4
Type of emergency light operation
Maintain
Type of emergency operation test
Automatic
Type of protection
IP20
Wattage in emergency operation mode
4 W
Wattage in maintained operation mode
4 W
Width
43.00 mm
