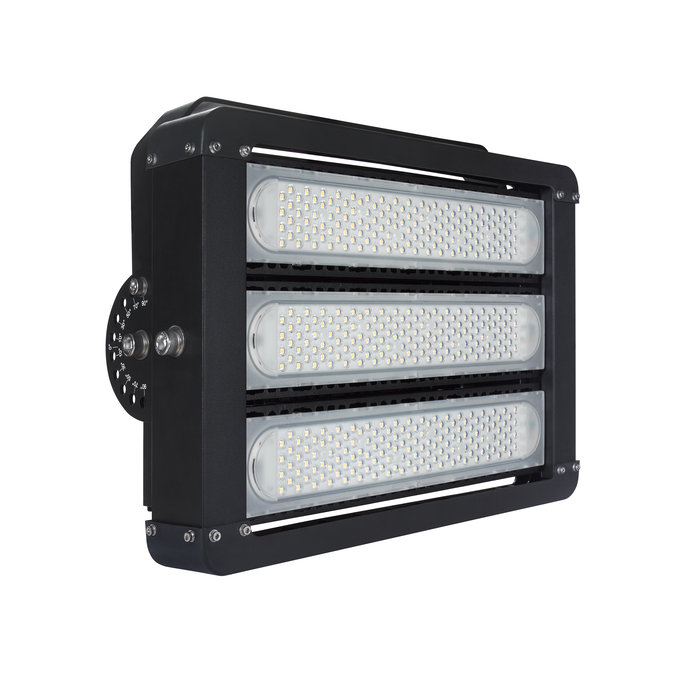

ECO HP FLOOD 300W 840 N 41100LM BK
4058075372450
Product benefits
- Energy savings of up to 90 % compared to halogen lamp floodlights
- Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
- Homogeneous light output
- 5 years guarantee
Areas of application
- Direct replacement for luminaires using HID lamps
- Sports facilities
- Industry
- Lighting of large areas
Product features
- Rotational symmetric light distribution for high mast area lighting
- Various versions with different types of light distribution available
- Mounting bracket for up to 180° tilting
- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-40…+45 °C
Application environment
Outdoor
Beam angle
60 °
Body material
Aluminum
Cable length
1000 mm
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075372450
Height
152.00 mm
Housing color
Black
Inrush current
80 A
Inrush current time Th50
500 µs
Length
522.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
137 lm/W
Luminous flux
41100 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
2
Max. number of luminaires per miniature circuit breaker C10
2
Max. number of luminaires per miniature circuit breaker C16
3
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
1550.000 mA
Nominal voltage
100…240 V
Nominal wattage
300.00 W
Number of illuminants
-
Number of switching cycles
100000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.95
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
10500.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9005
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
-
Total harmonic distortion
< 20 %
Type of connection
Cable, 3-pole
Type of protection
IP65
Width
370.00 mm
With light source
No
