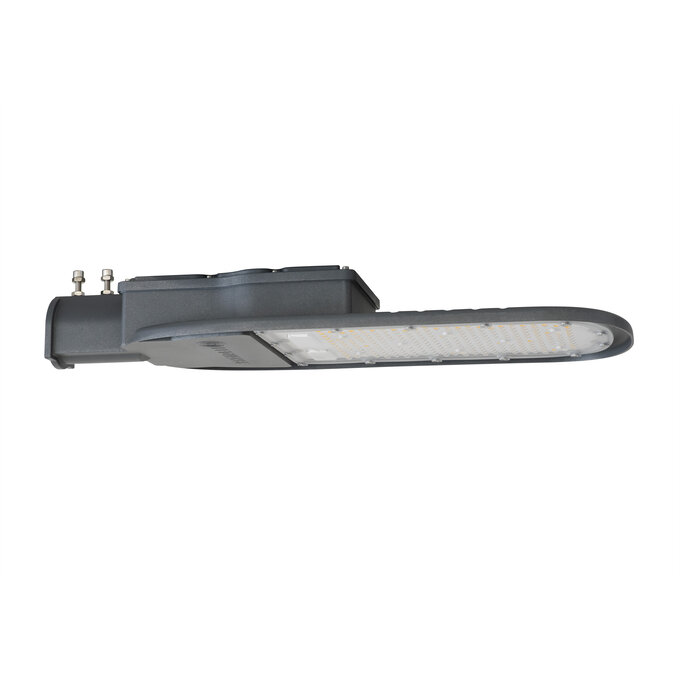

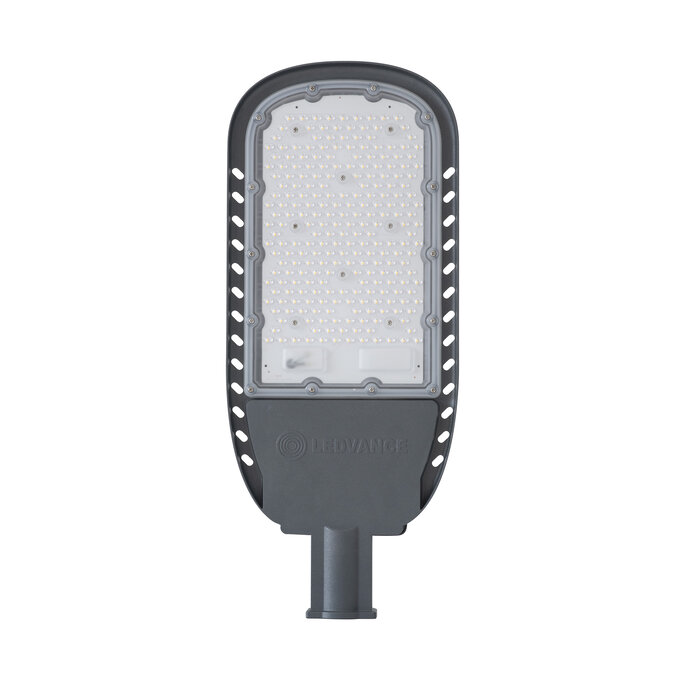

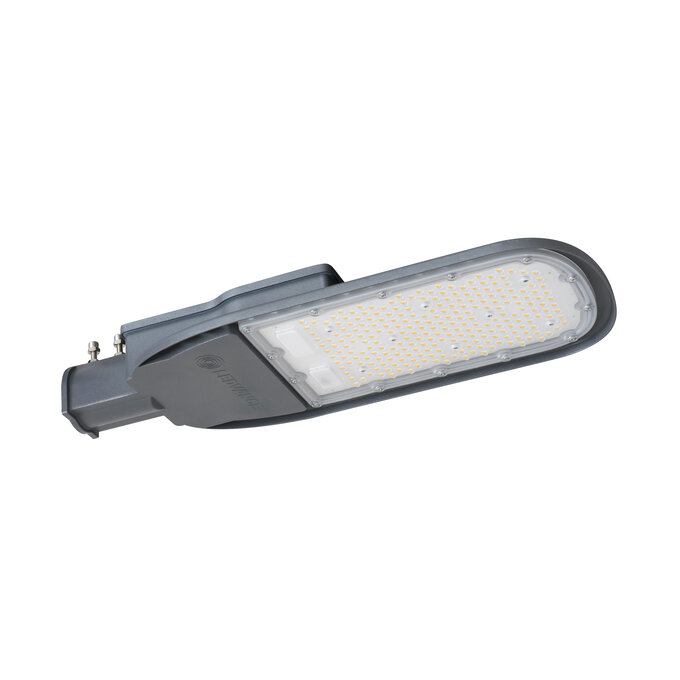

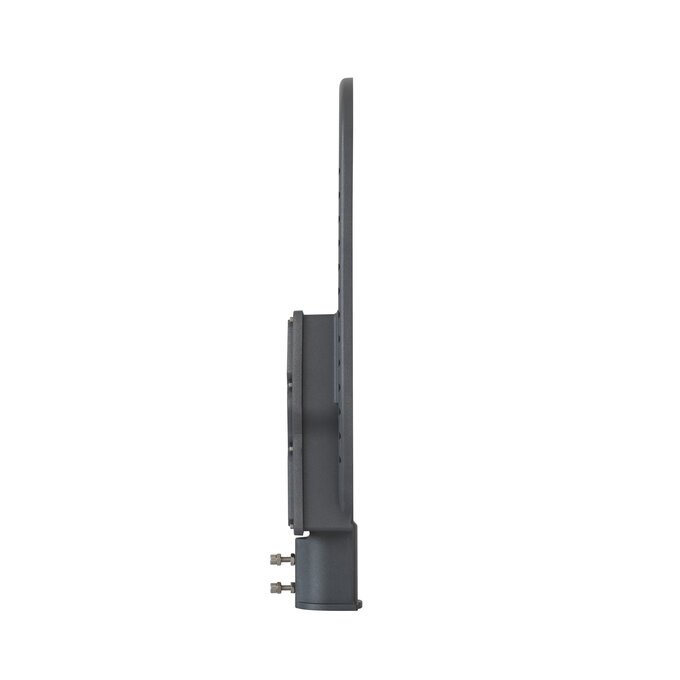

ECO AREA SPD 150W 830 IP66 GY
4058075557932
Product benefits
- Functional and minimalistic design
- Low maintenance and operation costs due to long lifetime of LED
- 5 years guarantee
Areas of application
- Road lighting
- Streets
- Car parks
- Area lighting
Product features
- Asymmetric light distribution for various application areas
- Robust die-cast aluminum housing
- Side-entry mounting for 48…60 mm poles
- Surge protection: 10 kV (L/N-PE)
- Integrated wide voltage driver, suitable for 100 - 240 VAC
- Pre-installed, flexible 0.5 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
References / Links
- For Guarantee see
Ambient temperature range
-30…+50 °C
Application environment
Outdoor
Beam angle
150 ° x 85 °
Body material
Aluminum
Cable length
500 mm
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
GTIN
4058075557932
Height
91.00 mm
Housing color
Grey
Inrush current time Th50
1400 µs
Length
653.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
35000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
125 lm/W
Luminous flux
18750 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
4
Max. number of luminaires per miniature circuit breaker C10
5
Max. number of luminaires per miniature circuit breaker C16
8
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Pole
Mounting type
Side entry
Nominal current
750 mA
Nominal voltage
100…240 V
Nominal wattage
150.00 W
Number of switching cycles
100000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.95
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
4400.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 7015
Replaceable light source
No
Standard deviation of color matching
≤5 sdcm
Temperature range at storage
-35…+70 °C
Total harmonic distortion
< 20 %
Type of connection
Cable, 3-pole
Type of protection
IP66
Width
274.00 mm
With light source
Yes
