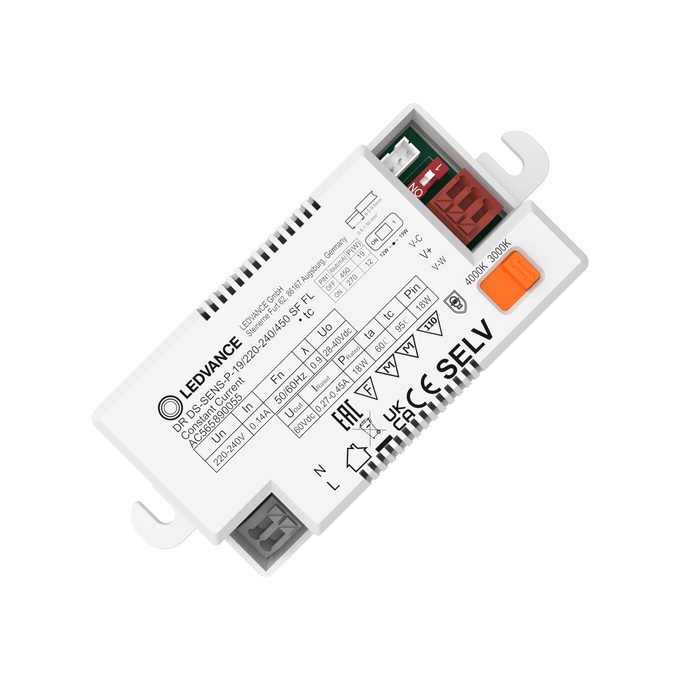

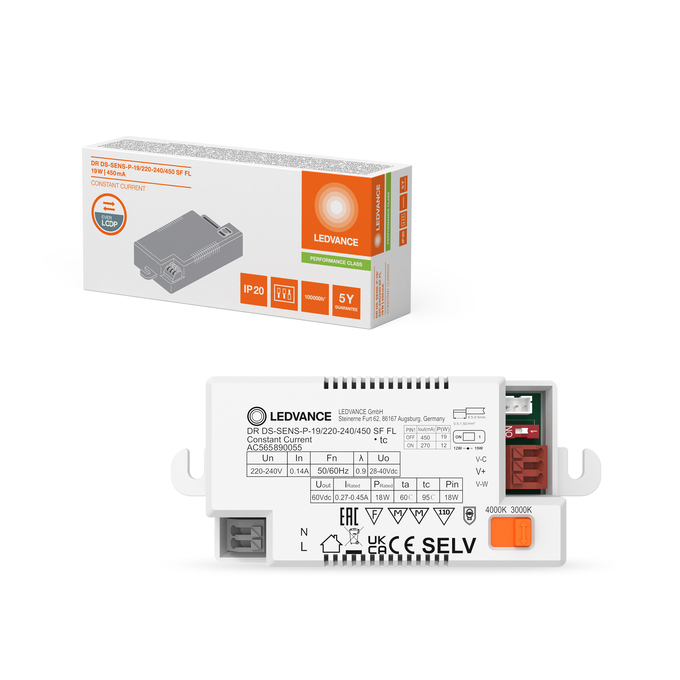

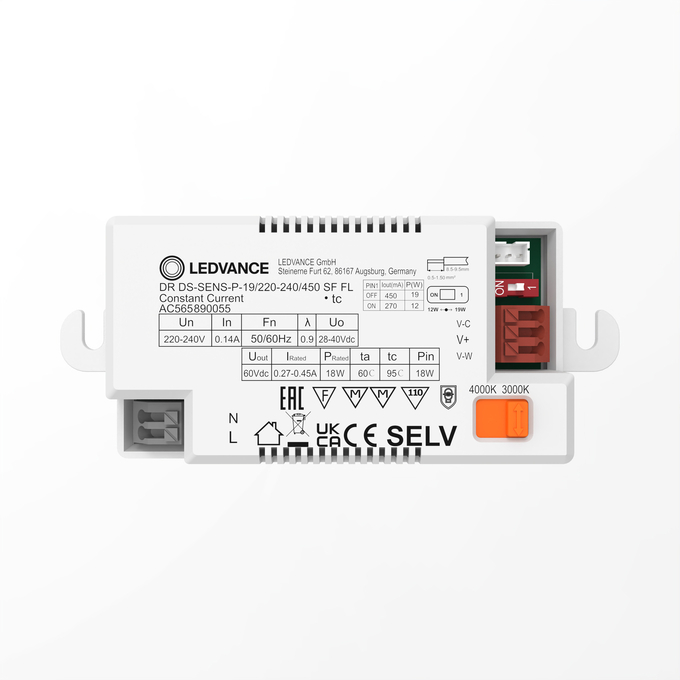

DR DS SENS-P- 19/220-240/450 SF FL
4099854292859
Product benefits
- High flexibility due to adjustable output currents and CCT with switches on the driver
- Low flickering enables high light quality as well as good visual comfort
- High efficiency and reliability
- 5 years guarantee
Areas of application
- Suitable for SURFACE FLAT / SURFACE FLAT SENSOR 19 W / 27 W
Product features
- Available in 19 W, 27 W
- Protection class: II
- Type of protection: IP20
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
Equipment / Accessories
- EVERLOOP luminaire: upgrades and replacements available
- Decorative silver frame separately available
References / Links
- For Guarantee see
Added function
EVERLOOP
Ambient temperature range
-20…+60 °C
Body material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
ECG lifetime
100000 h
GTIN
4099854292859
Height
24.00 mm
Inrush current
13 A
Length
119.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0/50/60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
450 mA
Nominal output current
450 mA
Nominal voltage
220…240 V
Nominal wattage
19.00 W
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.90
Product recyclability
Mostly recyclable product 1)
Product weight
81.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
RAL Color (most similar)
RAL 9003
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 20 %
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of protection
IP20
Width
51.00 mm
