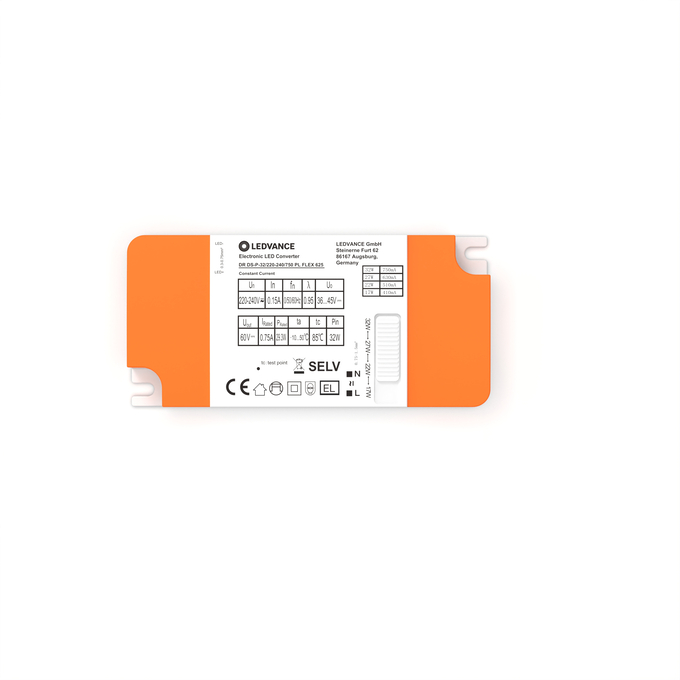

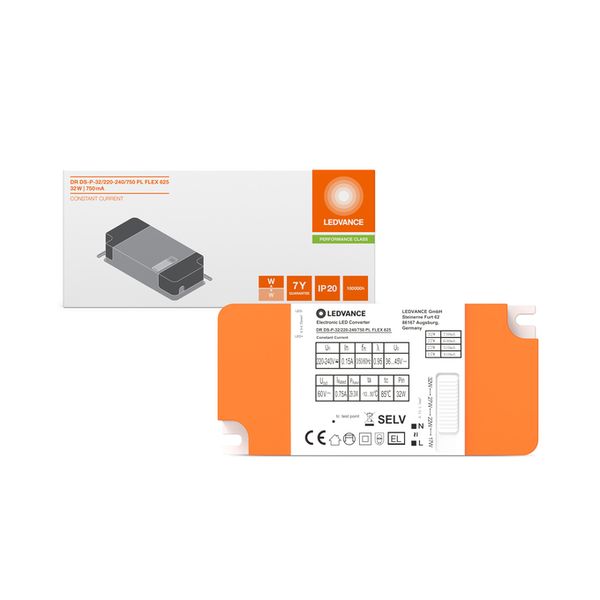

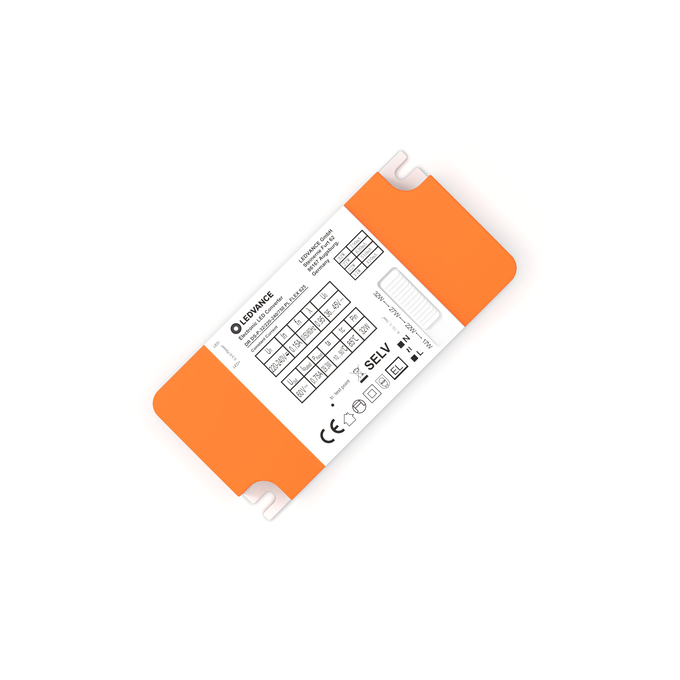

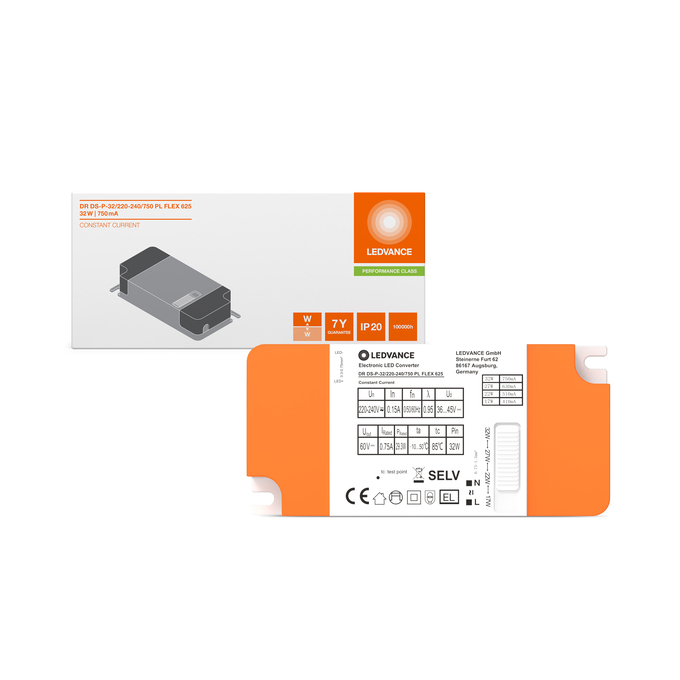

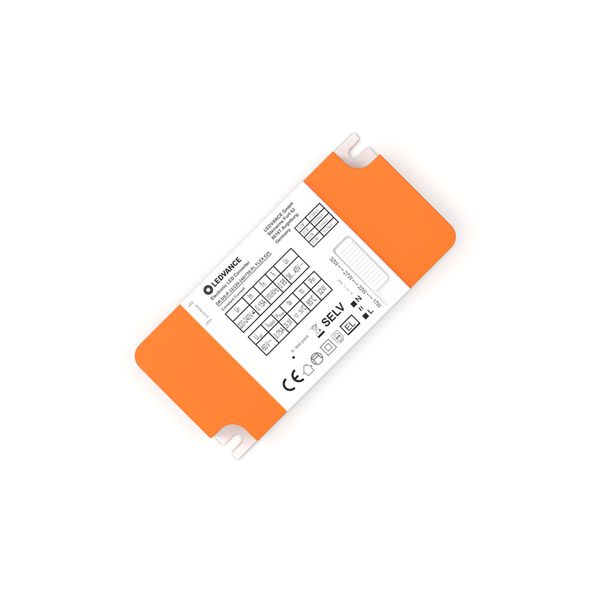

DR DS-P- 32/220-240/750 PL FLEX 625
4058075843691
Product benefits
- High flexibility due to adjustable output currents with a switch on the driver
- Low flickering enables high light quality as well as good visual comfort
- High efficiency and reliability
- 7 years guarantee
Areas of application
- Suitable for PANEL FLEX 30 W / 32 W
Product features
- Available in 30 W, 32 W
- Protection class: II
- Type of protection: IP20
- Supply voltage: 220…240 V
- Operating frequency: 0/50/60 Hz
- Suitable for central battery emergency installations acc. to EN 60598-2-22
References / Links
- For Guarantee see
Ambient temperature range
-10…+50 °C
Body material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
ECG lifetime
100000 h
GTIN
4058075843691
Height
30.00 mm
Inrush current
11.1 A
Length
125.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0/50/60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
700 mA
Nominal output current
750 mA
Nominal voltage
220…240 V
Nominal wattage
32.00 W
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.90
Product recyclability
Mostly recyclable product 1)
Product weight
105.00 g
Protection class
II
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 15 %
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of protection
IP20
Width
60.00 mm
