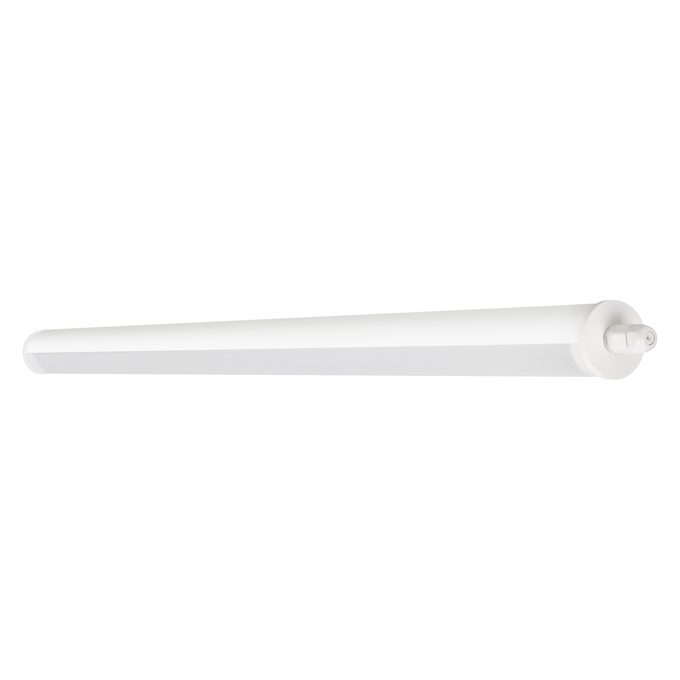

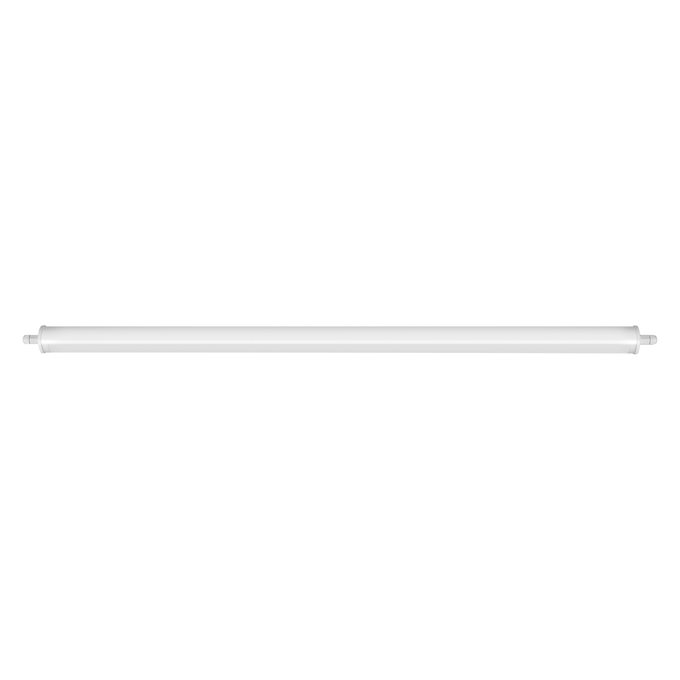

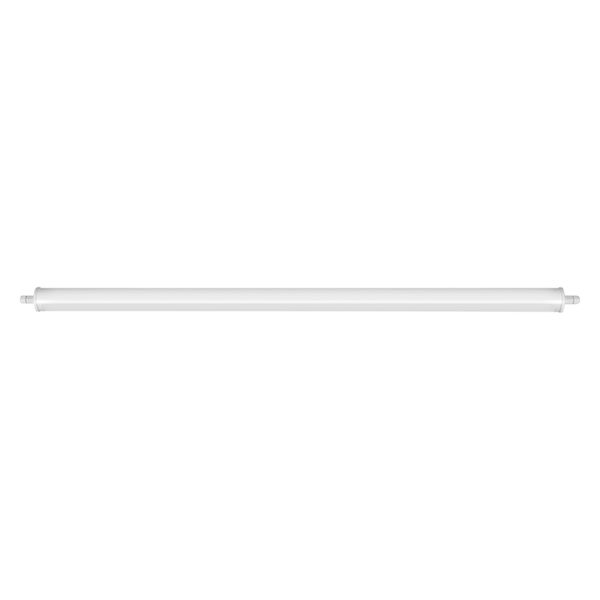

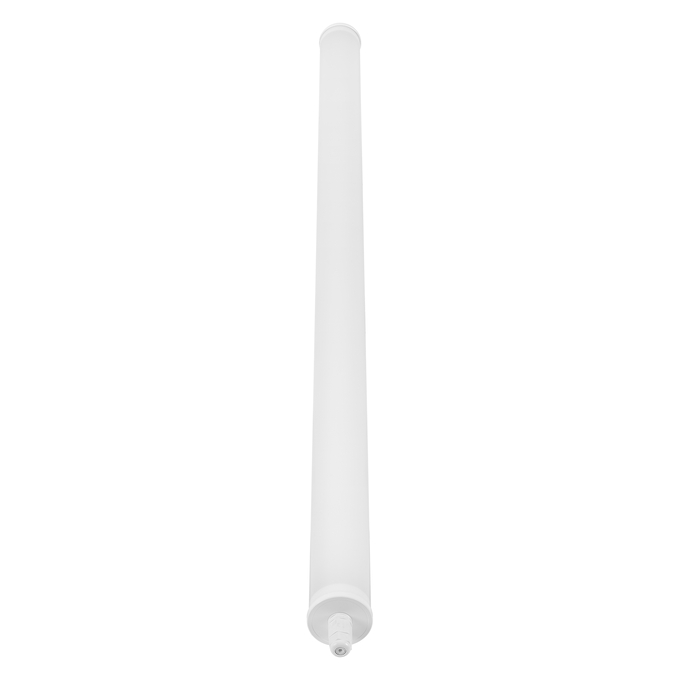

DP SPECIAL 1200 22 W 4000 K WT IP67
4058075452114
Product benefits
- Easy installation as mounting brackets can be positioned freely on the luminaire
- Easy installation, no tools required for connection
- Uniform light distribution
- Energy savings of up to 55 % (compared to luminaires that use fluorescent lamps)
- 5 years guarantee
Areas of application
- Keeping farm animals
- Food industry
- Open car parks and underpasses
- Garages
- Workshops, assembly lines
- Outdoor applications
Product features
- Ammonia resistant
- Sealed housing made of PMMA
- Through-wiring cable already installed
- Type of protection: IP67 (DIN EN 60529), IP69K (ISO 20653:2013)
References / Links
- For Guarantee see
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Beam angle
120 °
Body material
Polymethylmethacrylate (PMMA)
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Diameter
74.00 mm
Dimmable
No
ECG - Output ripple current
< 10 %
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075452114
Height
82.00 mm
Housing color
White
Inrush current
13 A
Inrush current time Th50
230 µs
Length
1344.00 mm
Lifespan L70/B50 at 25 °C
80000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
30000 h
Light color (designation)
Cool White
Light emitting surface material
PMMA
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
130 lm/W
Luminous flux
2800 lm
Luminous intensity
-
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
25
Max. number of luminaires per miniature circuit breaker C10
23
Max. number of luminaires per miniature circuit breaker C16
36
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal current
110 mA
Nominal voltage
220…240 V
Nominal wattage
22.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1130.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9214
Replaceable light source
No
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
-
Temperature range at storage
-40…+70 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 3-Pole
Type of protection
IP67~IP69K
With light source
Yes
