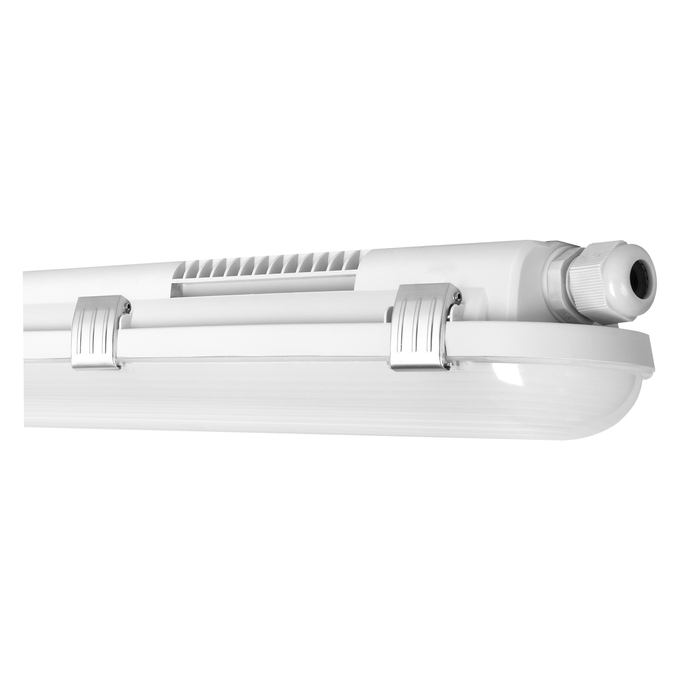

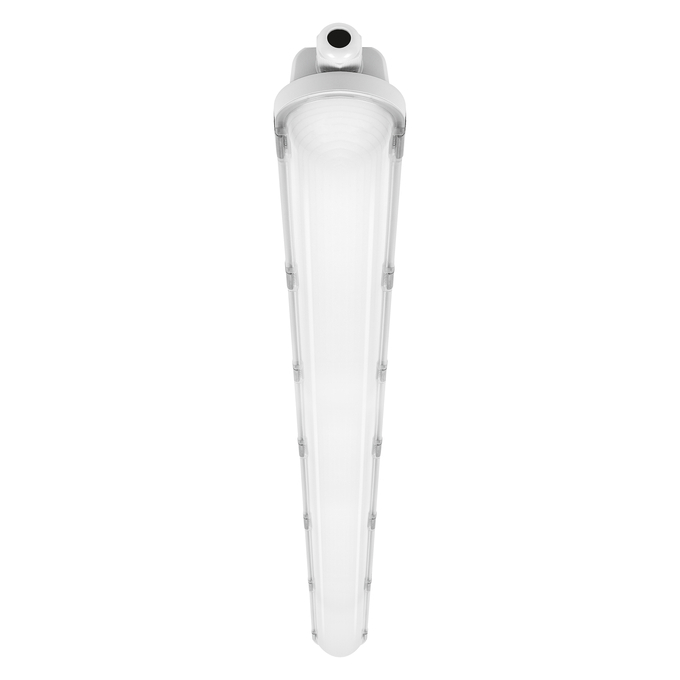

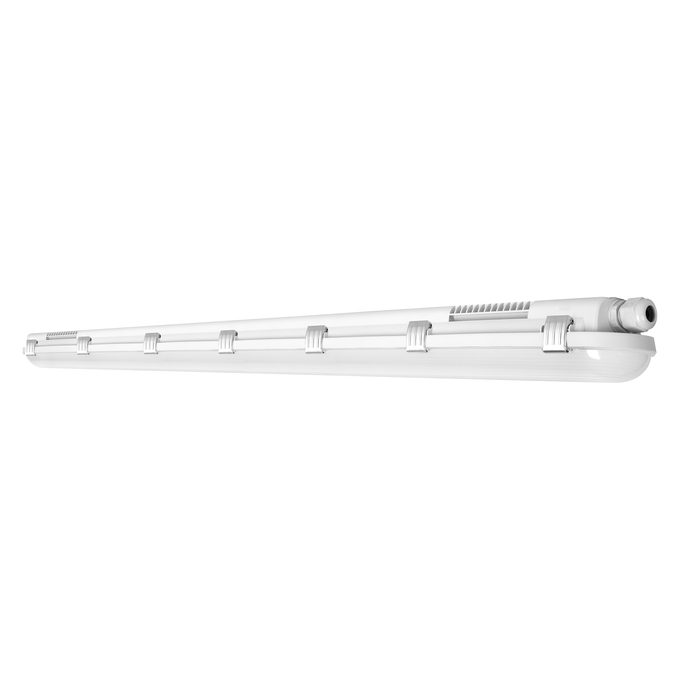

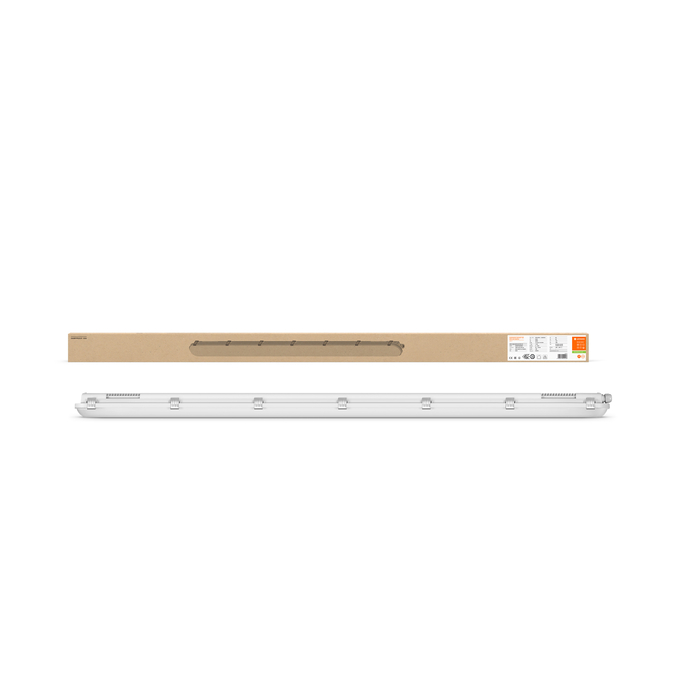

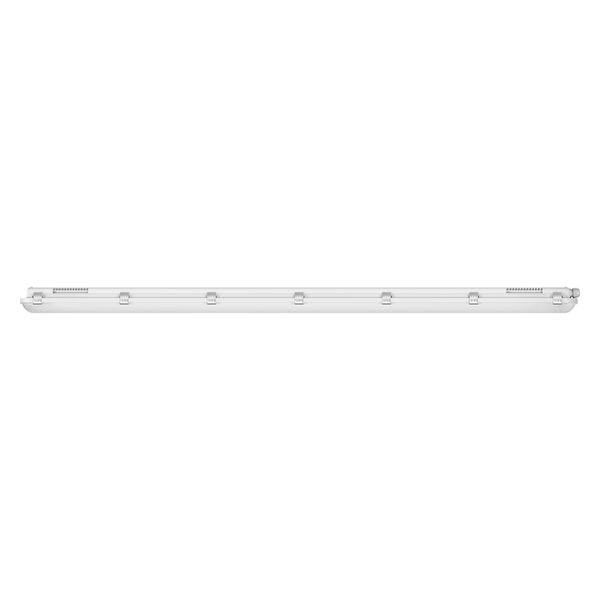

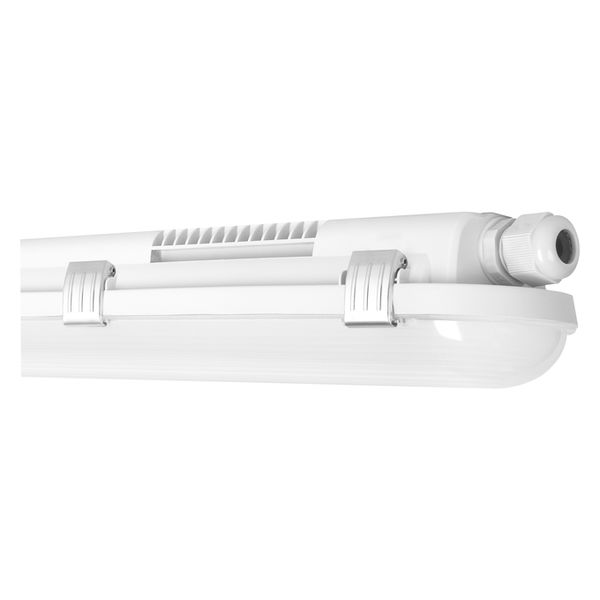

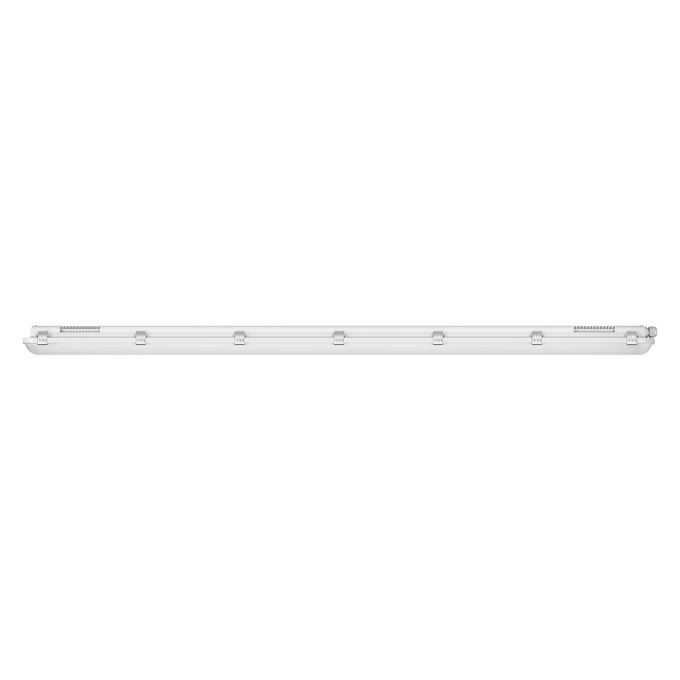

DP S 1500 58W 840 IP65 GY
4058075542006
Product benefits
- Installation of multiple sensor switched luminaires possible due to Master-Slave and Master-Master functionality
- Multiple adjustments of sensor range, daylight detection and hold time
- Low flicker ≤ 10 %
- Easy installation, no tools required for connection
- 5 years guarantee
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- High frequency sensor for daylight and motion detection
- Sensor with Master-Slave and Master-Master functionality
- High luminous efficacy: up to 139 lm/W
- Beam angle: 110°
Equipment / Accessories
- Mounting brackets, Antitheft protection, triangle, 2nd cable gland and 2 grommets included
References / Links
- For Guarantee see
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Polycarbonate (PC)
Detection range of motion sensor
4…12 m 1)
Detection threshold of daylight sensor
2…50 lx
Dimmable
No
EPD
LEDV-00025-V01.01-EN
Flickering metric (Pst LM)
≤ 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075542006
Height
68.00 mm
Housing color
Gray
Inrush current
12.6 A
Inrush current time Th50
222 µs
Length
1500.00 mm
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
34000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
138 lm/W
Luminous flux
8000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
26
Max. number of luminaires per miniature circuit breaker C10
23
Max. number of luminaires per miniature circuit breaker C16
38
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Suspended/Surface
Nominal current
255.000 mA
Nominal voltage
220…240 V
Nominal wattage
58.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
490 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product remark
When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Product weight
1727.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9018
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor controlled switching time
5 s…15 min
Sensor detection angle
< 150 °
Sensor technology
Microwave
Standard deviation of color matching
< 4 sdcm
Stroboscope effect metric (SVM)
≤ 0.4
Temperature range at storage
-25…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Terminal, 5-pin
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP65
Type of sensor
Moti
Width
82.00 mm
With light source
Yes
