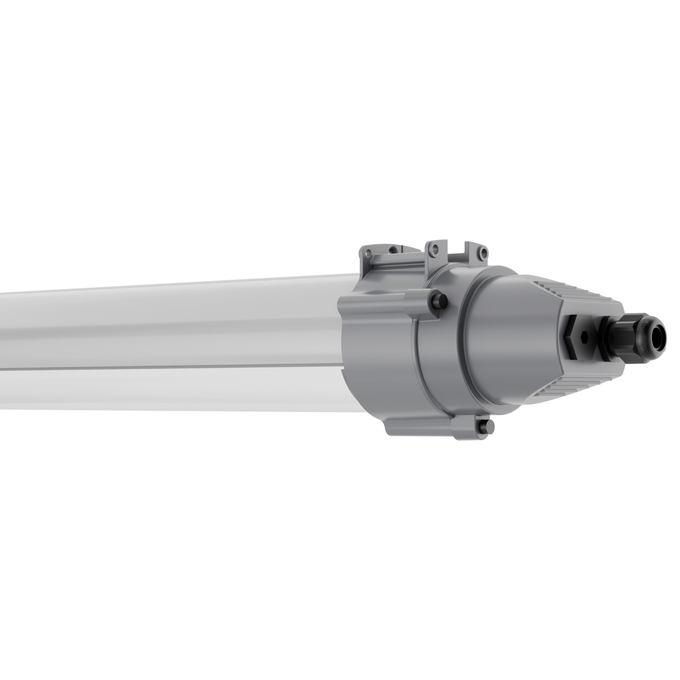

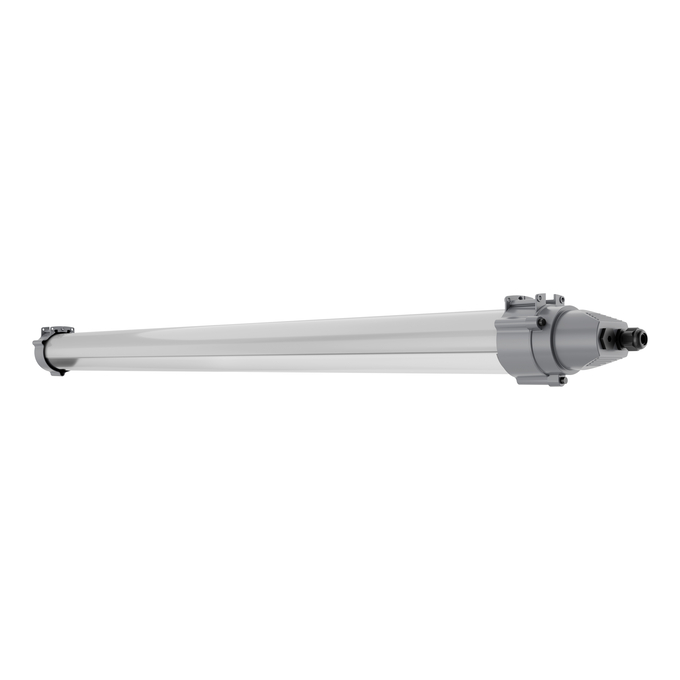

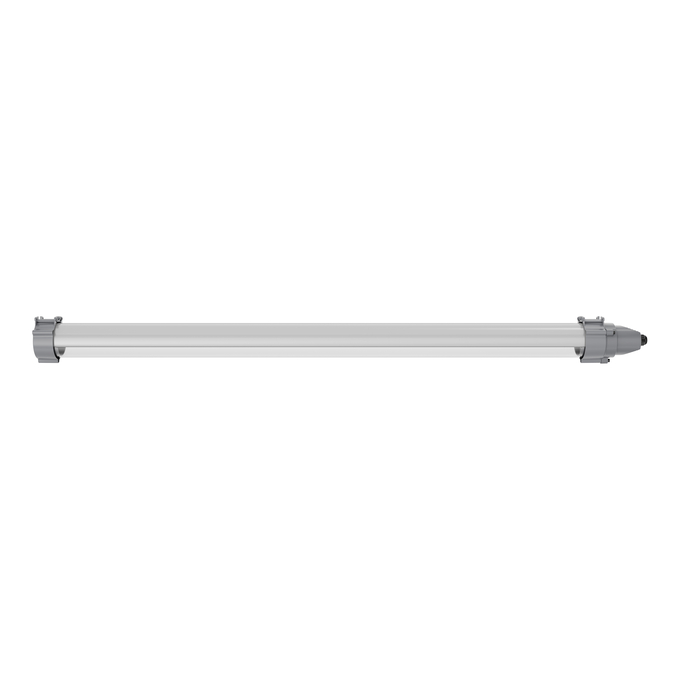

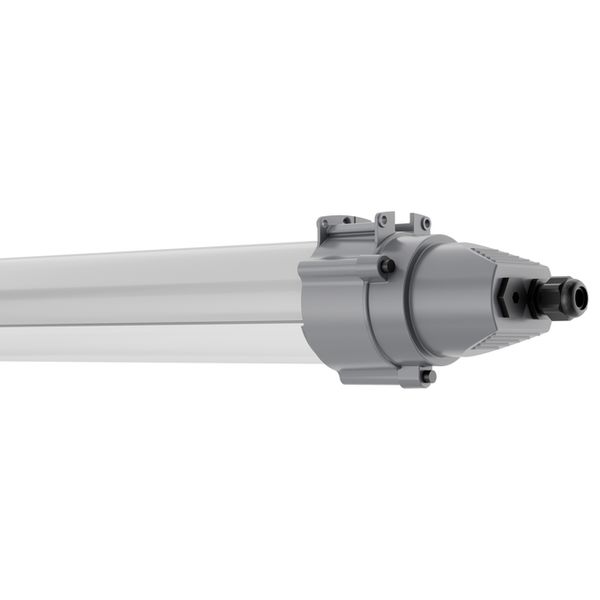

DP MAX EL 1500 S 41W 840 VW IP69
4099854538278
Product benefits
- Seamless integration of luminaires with emergency lighting function into general lighting
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Uniform light distribution in normal operation
- Versatile applications due to resistance to many chemicals and UV light
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Food industry
- Open car parks and underpasses
- Car wash facilities
- Outdoor applications
- Industrial and storage facilities
Product features
- Luminaire suitable for normal lighting and emergency lighting
- Suitable for emergency central battery installations acc. to EN 60598-2-22
- Self-contained luminaires
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Type of protection: IP66, IP69 (80 °C)
- Impact resistance: IK10
- Ammonia resistant
- UV-resistant PMMA diffuser
- Compatible to Zhaga Book 7 LED light sources
Equipment / Accessories

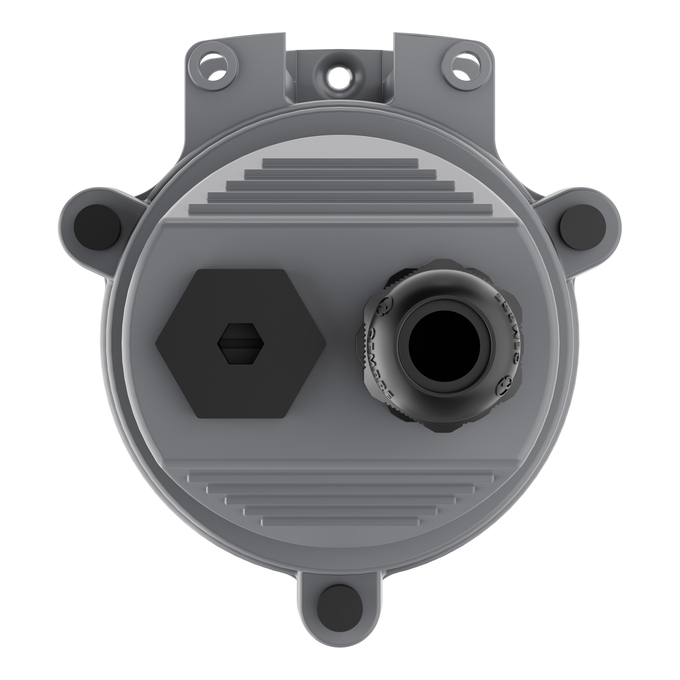

- Stainless steel clamps and M25 cable gland included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Ambient temperature range
0…+35 °C
Application environment
Outdoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
< 24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
133 ° x 107 °
Body material
Polymethylmethacrylate (PMMA)
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
No
ECG - Output ripple current
1.5 %
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854538278
Height
138.00 mm
Housing color
Grey
Inrush current
22.64 A
Inrush current time Th50
203 µs
Length
1730.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Light color (designation)
Cool White
Light emitting surface material
Polymethylmethacrylate (PMMA)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
146 lm/W
Luminous flux
6000 lm
Luminous flux in emergency operation mode
500 lm
Luminous flux in maintained operation mode
6000 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
27
Max. number of luminaires per miniature circuit breaker C10
28
Max. number of luminaires per miniature circuit breaker C16
45
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface/Suspended
Nominal capacity of battery
4500 mAh
Nominal current
165.000 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
41.00 W
Number of switching cycles
> 200000
Operating mode
Integrated LED driver
Output current
75…400 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.95
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
5400.00 g
Protection class
I
Protection class IK (shock resistance)
IK10
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
≤ 0.4
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-20…+35 °C
Total harmonic distortion
< 10 %
Total luminous flux of contained light sources
6650 lm
Type of Battery
LiFePO4
Type of connection
Screwless terminal, 3-Pole
Type of emergency light operation
Maintain
Type of emergency operation test
Automatic
Type of protection
IP66~IP69K
UGR
< 25
Wattage in emergency operation mode
2.3 W
Wattage in maintained operation mode
41 W
Width
125.00 mm
With light source
Yes
