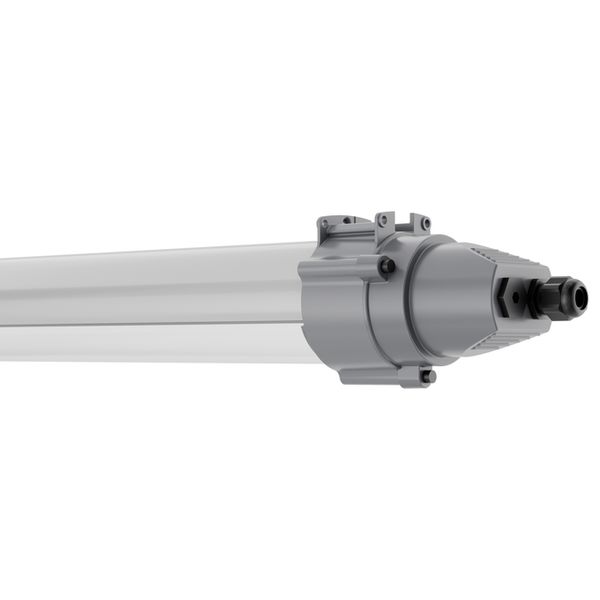

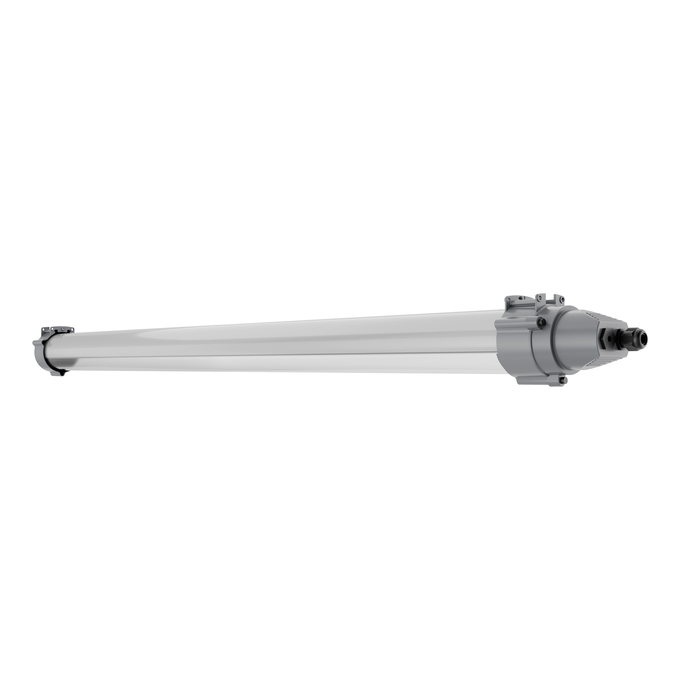

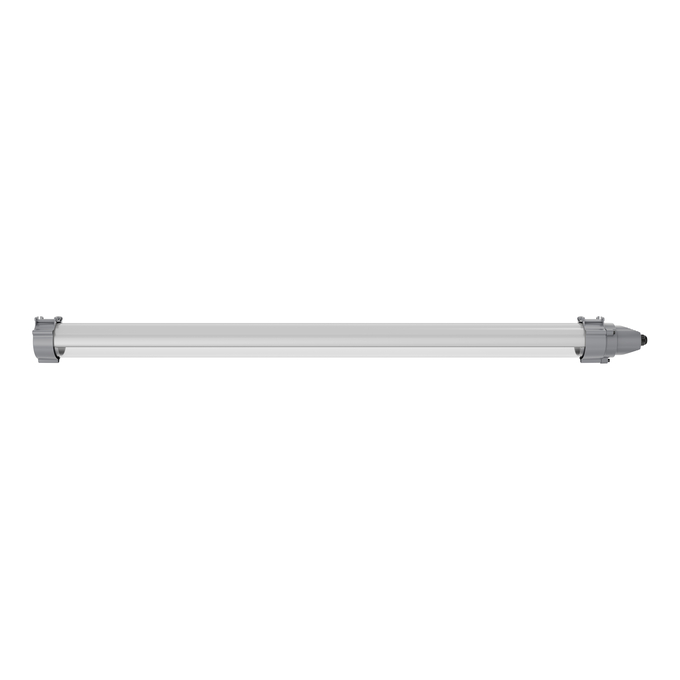

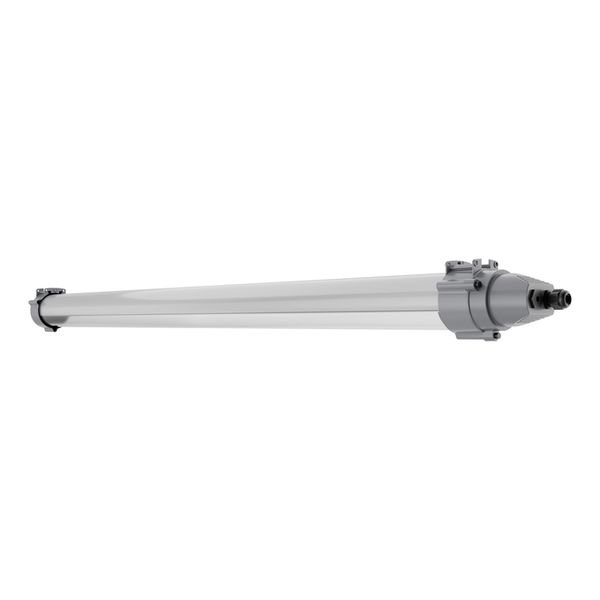

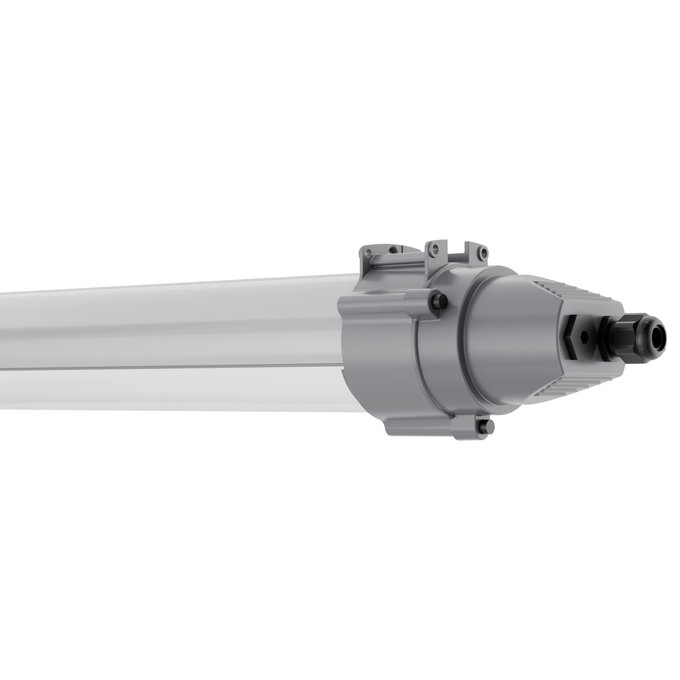

DP MAX DA 1500 S 52W 840 VW IP69
4099854538292
Product benefits
- High compatibility thanks to DALI-2 certification
- Driver suitable for Emergency escape lighting systems acc. to EN 50172
- Uniform light distribution
- Versatile applications due to resistance to many chemicals and UV light
- Easy to clean, even at high temperatures with a high-pressure cleaner
- Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
- Low flicker ≤ 5 %
Areas of application
- DALI installations
- Food industry
- Open car parks and underpasses
- Car wash facilities
- Outdoor applications
- Industrial and storage facilities
- Workshops, assembly lines
- Passages, underpasses
Product features
- High luminous efficacy: up to 154 lm/W
- Lifetime (L80/B50): up to 100,000 h (at 35 °C)
- Type of protection: IP66, IP69 (80 °C)
- Impact resistance: IK10
- Ammonia resistant
- UV-resistant PMMA diffuser
- Compatible to Zhaga Book 7 LED light sources
Equipment / Accessories

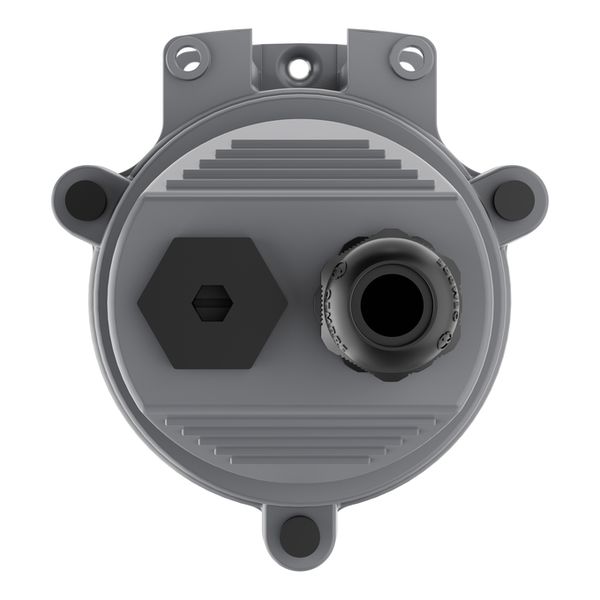

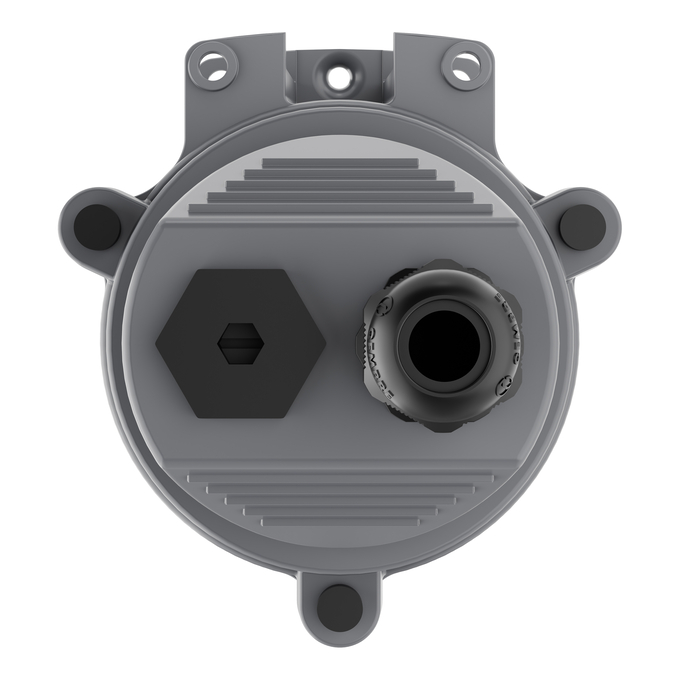

- Stainless steel clamps and M25 cable gland included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Ambient temperature range
-40…+45 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
133 ° x 107 °
Body material
Polymethylmethacrylate (PMMA)
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
Yes
Dimming range
1…100 %
ECG - Output ripple current
< 1 %
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854538292
Height
138.00 mm
Housing color
Grey
Inrush current
5 A
Inrush current time Th50
870 µs
Length
1730.00 mm
Lifespan L70/B50 at 25 °C
75000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Light color (designation)
Cool White
Light emitting surface material
Polymethylmethacrylate (PMMA)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
154 lm/W
Luminous flux
8000 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
36
Max. number of luminaires per miniature circuit breaker C10
36
Max. number of luminaires per miniature circuit breaker C16
60
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface/Suspended
Nominal current
226.000 mA
Nominal voltage
220…240 V
Nominal wattage
52.00 W
Number of switching cycles
> 200000
Operating mode
Integrated LED driver
Output current
200…700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.96
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
5300.00 g
Protection class
I
Protection class IK (shock resistance)
IK10
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
≤ 0.4
Surge capability (L-N)
4 kV
Surge capability (L/N-Ground)
4 kV
Temperature range at storage
-40…+45 °C
Total harmonic distortion
12 %
Total luminous flux of contained light sources
8860 lm
Type of connection
Screwless terminal, 5-Pole
Type of dimming
DALI-2
Type of emergency operation test
None
Type of protection
IP66~IP69K
UGR
< 25
Width
125.00 mm
With light source
Yes
