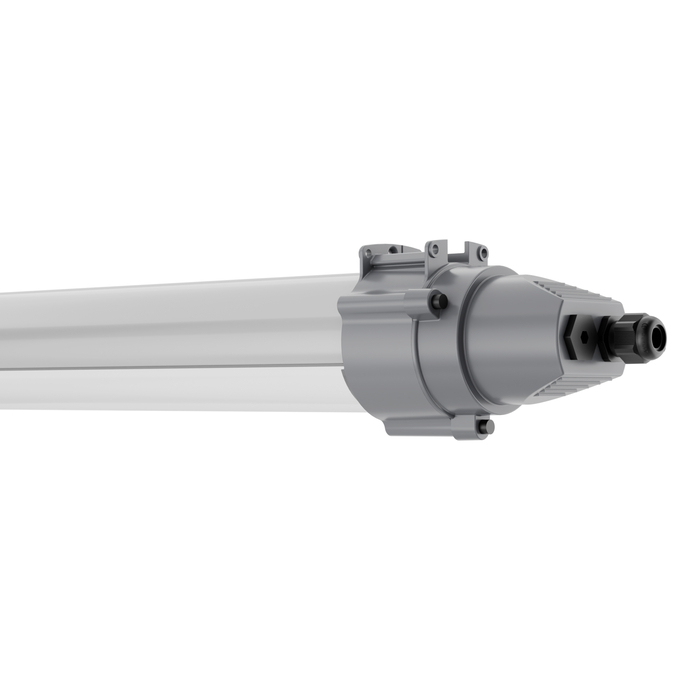

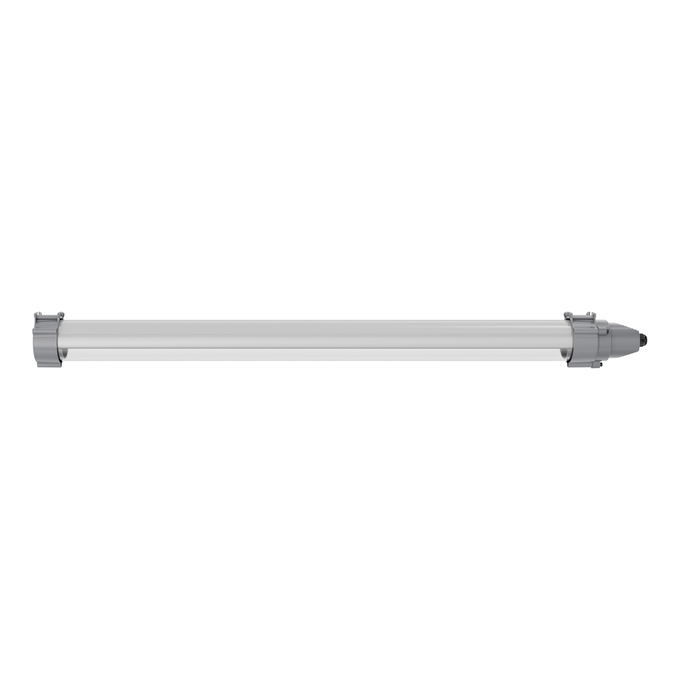

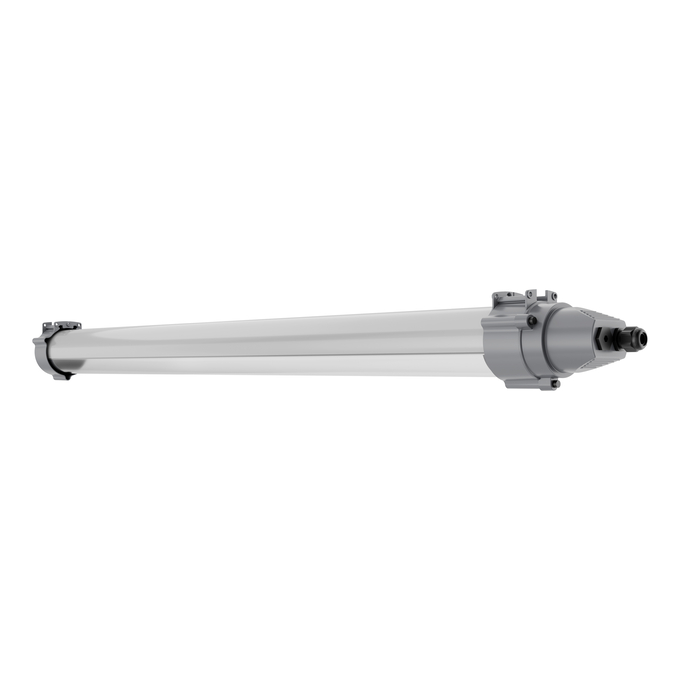

DP MAX 1200 S 43W 840 VW IP69
4058075849815
Product benefits
- Uniform light distribution
- Flexible application through a wide range of beam angles
- Versatile applications due to resistance to many chemicals and UV light
- Easy to clean, even at high temperatures with a high-pressure cleaner
- Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
- Low flicker ≤ 5 %
Areas of application
- Food industry
- Open car parks and underpasses
- Car wash facilities
- Outdoor applications
- Industrial and storage facilities
- Workshops, assembly lines
- Passages, underpasses
- Parking garages
Product features
- High luminous efficacy: up to 158 lm/W
- Lifetime (L80/B50): up to 100,000 h (at 35 °C)
- Type of protection: IP66, IP69 (80 °C)
- Impact resistance: IK10
- Ammonia resistant
- UV-resistant PMMA diffuser
- Compatible to Zhaga Book 7 LED light sources
Equipment / Accessories

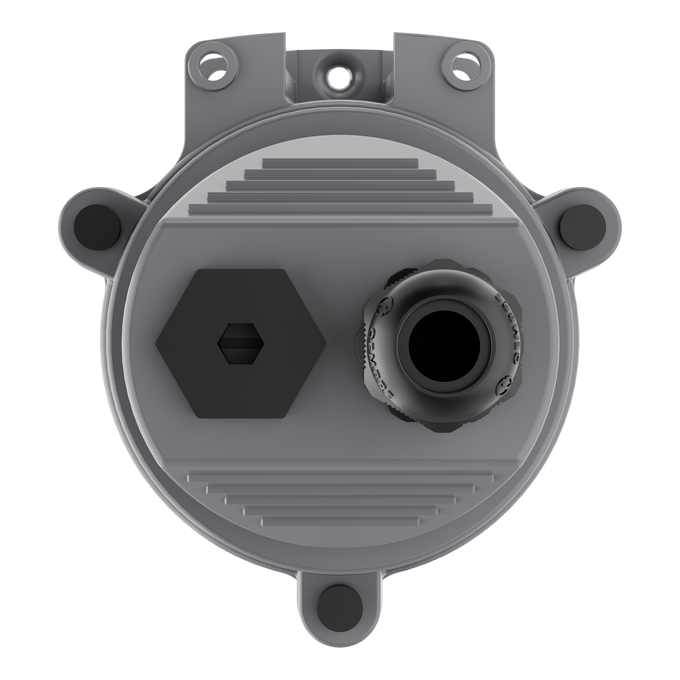

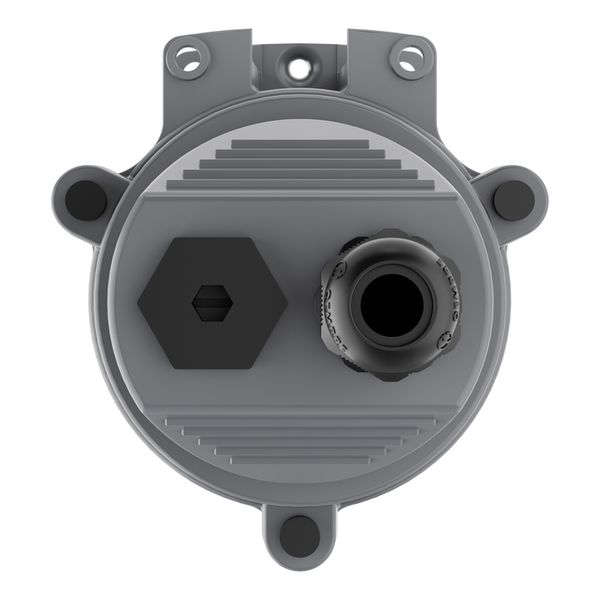

- Stainless steel clamps and M25 cable gland included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Ambient temperature range
-40…+45 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
133 ° x 107 °
Body material
Polymethylmethacrylate (PMMA)
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
No
ECG - Output ripple current
< 1 %
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075849815
Height
138.00 mm
Housing color
Grey
Inrush current
4 A
Inrush current time Th50
1300 µs
Length
1450.00 mm
Lifespan L70/B50 at 25 °C
75000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Light color (designation)
Cool White
Light emitting surface material
Polymethylmethacrylate (PMMA)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
151 lm/W
Luminous flux
6500 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
36
Max. number of luminaires per miniature circuit breaker C10
36
Max. number of luminaires per miniature circuit breaker C16
60
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface/Suspended
Nominal current
187 mA
Nominal voltage
220…240 V
Nominal wattage
43.00 W
Number of switching cycles
> 200000
Operating mode
Integrated LED driver
Output current
200…700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.97
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
4400.00 g
Protection class
I
Protection class IK (shock resistance)
IK10
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
≤ 0.4
Surge capability (L-N)
4 kV
Surge capability (L/N-Ground)
4 kV
Temperature range at storage
-40…+45 °C
Total harmonic distortion
13 %
Total luminous flux of contained light sources
7200 lm
Type of connection
Screwless terminal, 3-Pole
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP66/IP69K
UGR
< 25
Width
125.00 mm
With light source
Yes
